ES-50XC
Intelligent Addressable FACP
with Communicator
General

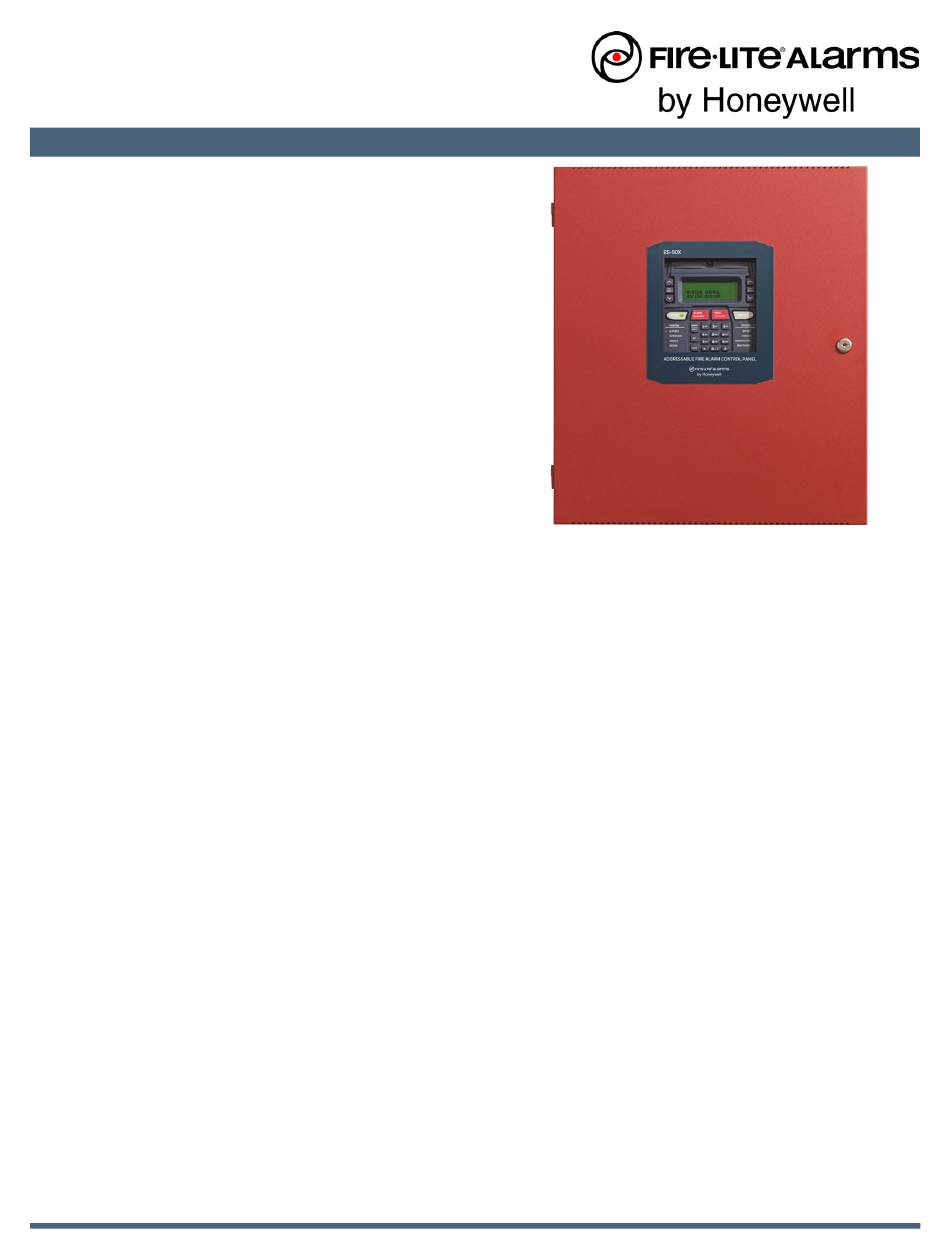

The ES-50XC is the latest intelligent addressable fire alarm control
panel (FACP) from Fire•Lite Alarms and is a direct replacement for
the MS-9050UD/LSC. The ES-50XC comes with a pre-installed
commu-nicator and supports up to 50 addressable devices in any
combina-tion of detectors or modules. With an extensive list of
powerful features, the ES-50XC programs just like Fire•Lite's other
address-able products, yet fits into applications previously served
only by con-ventional panels.
The pre-installed IPOTS-COM is a dual technology (POTS and IP)
communicator. The POTS transmits system status (alarms, troubles,
AC loss, etc.) to a Central Station via the public switched telephone
network. The IP communicator's internet monitoring capability sends
alarm signals over the Internet saving the monthly cost of two dedi-
cated business telephone lines. Although not required, the second-
ary telephone line may be retained providing backup communication
over the public switched telephone line. Optional cellular reporting is
available using the CELL-MODC or CELL-CAB-FLC.
Remote and local programming of the control panel is possible using
the FS-Tools Upload/Download utility. Programming databases can
be uploaded/downloaded via the panel's USB port (and USB cable)
or via an ethernet connection using the IPOTS-COM communicator.
The USB port also allows for the download or upload of the entire
program, history file, walk-test data, current status and system volt-
ages by means of a USB flash drive.
The power supply and all electronics are contained on a circuit board
supported on a new quick install chassis and housed in a metal cab-
inet. Available accessories include local and remote upload/down-
load software, remote annunciators, and reverse polarity/city box
transmitter (4XTMF).
Features
• ULC Listed
• Pre-installed IPOTS-COM Ethernet IP and POTS (Plain Old Tele-
phone Service) Central Station Communicator
• Optional CELL-MODC or CELL-CAB-FLC GSM Central Station
Communicator over AlarmNet
• Auto-programming (learn mode) reduces installation time.
Reports two devices set to the same address
• Two independently programmable, built-in Style Z (Class A) or
Style Y (Class B) NAC circuits
• Selectable strobe synchronization for System Sensor, Wheelock,
and Gentex devices
• Notification Appliance Circuit End of Line resistor matching
• Four programmable function keys for ease of maintenance
• Two programmable relays and one fixed trouble relay
• Built-in Programmer
• Integral 80-character LCD display with backlighting
• Real-time clock/calendar with automatic daylight savings control
• History file with 1,000 event capacity
• Addressable sounder base
• Control module delay timer
• Automatic detector sensitivity testing
• Automatic device type-code verification
• Point trouble identification
• Waterflow selection per module point
• Alarm verification selection per detector point
• Maintenance alert warns when smoke detector dust accumulation
is excessive
Addressable Fire Alarm Control Panels
• One-person audible or silent walk test with walk-test log and print-
out
• System alarm verification selection per detector point
• Up to 16 ANN-BUS annunciators- 8 per each ANN-Bus
• Remote Acknowledge, Alarm Silence, Reset and Drill via
addressable modules or remote annunciator
• Upload/Download of program and data via USB with optional FS-
Tools Programming Utility
DCL COMMUNICATION LOOP
• LiteSpeed™ polling protocol for faster DCL response time
• DCL operates up to 10,000 ft. (3,000 m) in LiteSpeed mode with
twisted, unshielded wire
• Single addressable DCL loop which meets Class B and Class A
requirements
• 50 addressable device capacity (any combination of addressable
detectors and modules)
• Compatible with Fire•Lite's addressable devices (refer to the DCL
Wiring Manual #51309)
NOTIFICATION APPLIANCE CIRCUITS (NACS)
• Two independently programmable output circuits. Circuits can be
configured for the following outputs:
– Style Y (Class B)
– Style Z (Class A)
• Silence Inhibit and Autosilence timer options
• Continuous, March Time, or Temporal code for main circuit board
NACs with two-stage capability
• Selectable strobe synchronization per NAC
• 2.5 A special application, 250mA regulated, total power for NACs
NOTE: Maximum or total 24VDC system power shared between all NAC
circuits and the ANN-BUS is 2.7 A
PROGRAMMING AND SOFTWARE
• Autoprogramming (learn mode) reduces installation time
• Custom English labels (per point) may be manually entered or
selected from an internal library file
• Two programmable Form-C relay outputs
• 50 software zones
