RRConcepts.com

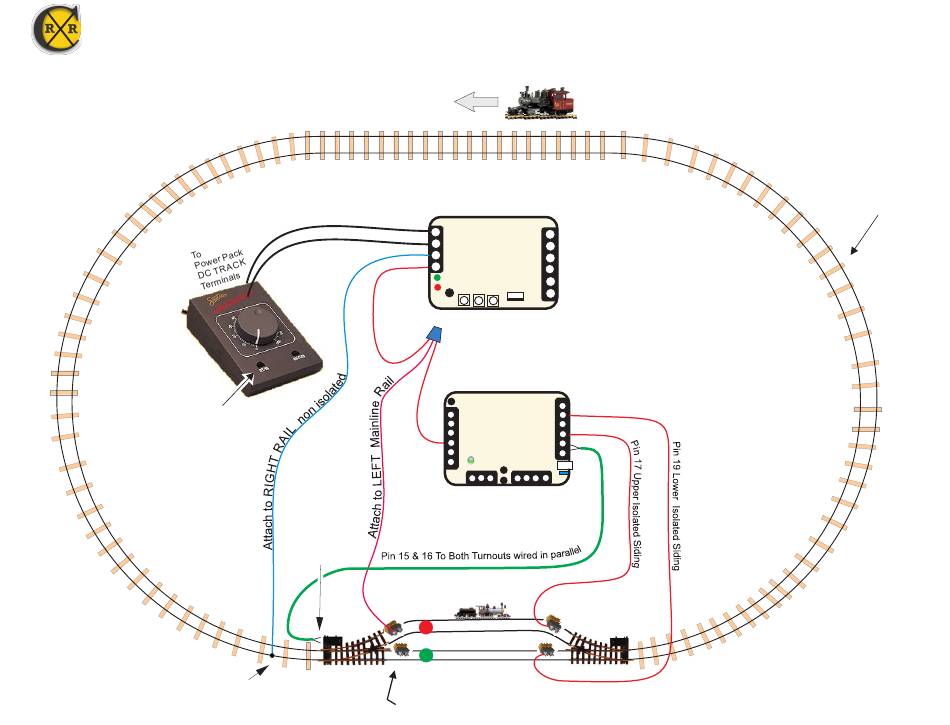

Alternate 2 Trains at a Siding
Trains Travel Opposite Directions
Switch direction
if SM does not
light up.
Set for about 12 volts.
This is just a connection
to the right rail. Non isolated. The right
rail should be connected all around.
1
1
StationMaster
2
3
4
4
+
-
YardMaster
1
2
4
3
4
5
6
7
Swap wires
if needed
Track isolators, 4 Required.
On LEFT rails of sidings only.
TRACK
CONNECTIONS
Place MAGNET
on bottom of engines.
13
12
11
10
9
8
20
19
18
17
5
16
15
8
9
11
12
13 14
Page 1
of 3
Right Rail should
have NO isolators
and will be connected
straight thru
Advertisement
Table of Contents
Related Manuals for RR-Concepts StationMaster
Summary of Contents for RR-Concepts StationMaster
- Page 1 Trains Travel Opposite Directions Place MAGNET on bottom of engines. Right Rail should have NO isolators and will be connected straight thru StationMaster Switch direction if SM does not light up. YardMaster Set for about 12 volts. 13 14 Swap wires...
- Page 2 Page 2 RRConcepts.com of 3 Alternate 2 Trains at a Siding Trains Travel Opposite Directions For additional station stops around the loop see“Justa-Station-Stop” in the StationMaster manual. See Page 3 for programming StationMaster 3 pin data cable YardMaster 13 14...
- Page 3 Terminal 4 attaches to StationMaster terminal 4 and the LEFT rail a) Turn top speed dial full counter-clockwise. of the main line track section. This is the voltage output of the StationMaster. b) Turn top speed dial slowly clockwise until the GREEN LED goes on.
