RR-Concepts
StationMaster
Reverser
This manual contains detailed hookup and programming instructions for the
StationMaster Decelerator Reverser.
Please download the most recent "wire-to-wire" hookup diagrams at http://www.RR-Concepts.com.
Before we Start
to any other terminals except the designated transformer inputs. (XFMR)
Your StationMaster will be damaged if power is put on any of the sensor terminals!!
Remember that your StationMaster contains a micro controller and can be reset by cycling
the power. To do this, turn your transformer off for a few seconds, and then turn it back on.

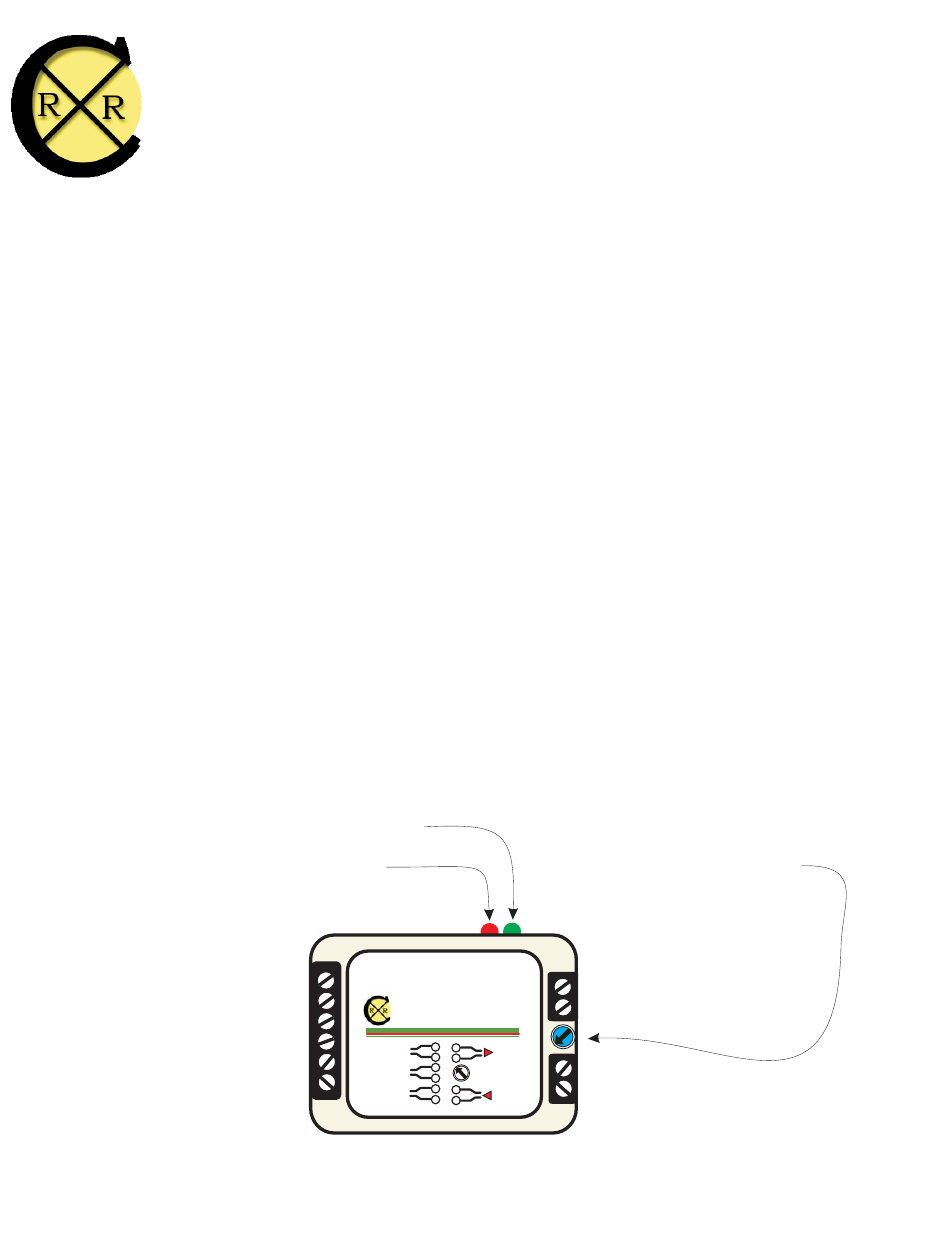

Two Color Status LED
Red Sensor LED
Please do not attach XFMR wires (from your power pack)
-
Station Master
+Reverser
RR-Concepts.com
1
DECEL
2
3
REVERSE
4
5
STOP
6
7
TRACK
8
TOP
SPEED
11
XFMR
12
1
Top Speed Adjust and
programming

Advertisement

loading
Need help?

Need help?

Do you have a question about the StationMaster and is the answer not in the manual?

Questions and answers

Related Manuals for RR-Concepts StationMaster

Summary of Contents for RR-Concepts StationMaster

  • Page 1 Please do not attach XFMR wires (from your power pack) to any other terminals except the designated transformer inputs. (XFMR) Your StationMaster will be damaged if power is put on any of the sensor terminals!! Remember that your StationMaster contains a micro controller and can be reset by cycling the power.
  • Page 2 DECEL Sensor Terminals 1 & 2 are the start DECEL sensor. When this sensor detects a magnet, the StationMaster will decelerate your train, pause, and then accelerate in the same direction. The RED led will light up when this sensor is detected. By placing multiple DECEL sensors wired in...

  • Page 3: Reverse Sensor

    REVERSE Sensor Terminals 3 & 4 are the REVERSE sensor. When this sensor detects a magnet, the StationMaster will decelerate your train, pause, reverse direction, and then accelerate. The RED led will light up when this sensor is detected. By placing two DECEL sensors at extreme ends wired in parallel, the train will do a simple back and forth operation.
  • Page 4 Basic Non-Reversing Hookup Diagram for Automatic Station Stops with Deceleration/Acceleration Place MAGNET on bottom of engine. Attach to TRACK To Left Rail Station Master +Reverser RR-Concepts.com DECEL TRACK REVERSE SPEED STOP XFMR Power Pack TRACK Terminals Stopping Position DECEL sensor Add additional sensors in PARALLEL for additional station stops.

  • Page 5: Stop Sensor

    Station Master +Reverser RR-Concepts.com DECEL TRACK REVERSE SPEED STOP XFMR Optional STOP Sensor Terminals 5 and 6 are the optional STOP sensor. When the train is decelerating and this sensor detects a magnet, the train will immediately STOP. This sensor is not necessary unless a critical stop position is required.
  • Page 6 If you have a fixed DC power supply, then use this dial to set the top speed of your trains. To program your StationMaster, turn this dial fully counter-clockwise to enter “programming mode”. (See below)
  • Page 7 (See RR-Concepts.com for detailed info.) When finished with all programming, increase the top speed dial clockwise to MAX, or to a desired top speed. All programming values are stored in flash memory. This means that once you program your StationMaster, it will never forget!
  • Page 8 (about 10 counts). When finished with all programming, increase the top speed dial clockwise to MAX, or to a desired top speed. All programming values are stored in flash memory. This means that once you program your StationMaster, it will never forget!
  • Page 9 All programming values are stored in flash memory. This means that once you program your StationMaster, it will never forget! The number of orange FLASHES will correspond to the following time delays: 1: 0 seconds, no wait.

  • Page 10: Led Indicators

    If there is a 20% voltage drop, then a short circuit is assumed and the StationMaster will cut power. Once a short is detected, the StationMaster will re-check every 5 seconds to see if the problem is corrected and then resume operations once correct.
  • Page 11 Offset the train’s magnet to the same side. For example, passenger trains have the magnet on the right and stop at the passenger station. Freight trains have their magnet on the left and stop at the freight station. Enjoy your StationMaster!
  • Page 12 DECEL terminals. REVERSE SPEED STOP XFMR For most trains, the StationMaster can detect when the engine Power Pack has reached the end of the track and has entered the diode DC TRACK isolator section. This will start the delay cycle.
