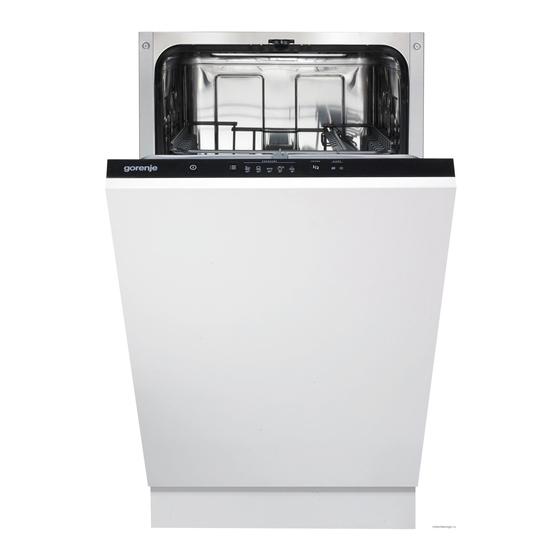

- Page 1 Operating Instructions GDV642X A GDV642XL A...
-
Page 2: Table Of Contents
CONTENTS FRONT PANEL TROUBLESHOOTING SAFETY INSTRUCTIONS INFORMATION FOR TEST INSTITUTE BEFORE WASHING FOR THE FIRST TECHNICAL INFORMATION TIME INSTALLATION LOADING THE DISHWASHER SERVICE USING THE DISHWASHER PROGRAMME CHART SETTINGS YOUR NOTES CARE AND CLEANING FRONT PANEL The panel is fitted with touch buttons with audible feedback (see the chapter Settings). On/Left-on mode Rinse aid indicator High temperature... -
Page 3: Safety Instructions
SAFETY INSTRUCTIONS Always close the door and start the GENERAL programme immediately after you have added Read the operating instructions and keep them the detergent. in a safe place! Keep children away from the dishwasher when Never use the dishwasher for any purpose the door is open. -
Page 4: Before Washing For The First Time
BEFORE WASHING FOR THE FIRST TIME PACKING MATERIAL DEAR GORENJE+ CUSTOMER! Please sort waste materials in accordance with We hope that you will have many years of use local guidelines. from your new machine. DISPOSAL The machine has many features. To make the... -
Page 5: On/Left-On Mode
When the salt runs out, unscrew the cap and fill FILL UP THE SALT the container with salt. Water is only needed the Before you begin using a dishwasher with a water first time! Wipe clean and tighten. Run a softener, you must fill the salt compartment with programme to ensure that any salt in the salt. -
Page 6: Loading The Dishwasher
LOADING THE DISHWASHER ECONOMIC DISHWASHING REFILL RINSE AID INDICATOR Run programmes only with a full load When the rinse aid needs topping up, the above Wait to run a programme until the dishwasher is symbol lights on the display. full, this way you save energy. Use the Rinse & Hold programme to rinse the dishes if there are NOTE! any unpleasant odours while you wait for the... - Page 7 Crystal/Glass Position items so that they do not touch each other during the wash. Use the lowest possible wash temperature and the shortest possible programme. Select Short dry. Antique and very fragile items should not be washed in a dishwasher. Glass washed in a dishwasher at high temperatures can gradually develop a grey film that cannot be removed.
- Page 8 Fold-down section for small items The cutlery basket has a fold-down section in the middle for small items, or small shafts, such as electric whisk attachments. Forward mount for plate support Used for plates with a diameter greater than 25 Cutlery basket with lid Positioning of cutlery basket lid (in upper basket)
-
Page 9: Using The Dishwasher
USING THE DISHWASHER NOTE! ADD DETERGENT Dishwasher tablets are not recommended for short programmes (less than 75 minutes). Use powder or liquid dishwasher detergent instead. 3-in-1/All-in-one detergent Read through the directions for these products carefully. If anything is unclear, contact the detergent manufacturer. - Page 10 same programme. An exception is the Delayed start option. Super Quick wash Short programme lasting about 15 minutes with High temperature acceptable results for very slightly dirty dishes. Activate this option for improved dishwashing results. The machine then uses a higher Delicate wash temperature for the main wash.
- Page 11 NOTE! Remember to press the Start/Stop button to start the programme. START THE DISHWASHER Press and hold Start/Stop until the display shows (the door open symbol). This indicates that the dishwasher is ready to start. Close the door properly, otherwise the dishwasher will not Status light start.
- Page 12 IF THE DISHWASHER IS TURNED OFF ONCE THE PROGRAM HAS FINISHED USING THE ON/LEFT-ON MODE BUTTON Once the programme has finished and the door OR DUE TO A POWER FAILURE is opened "End" appears on the display. If the dishwashing programme was not finished, A buzzer also sounds at the end of the the interrupted programme continues when programme.
-
Page 13: Settings
SETTINGS DO AS FOLLOWS TO OPEN THE SETTINGS MENU: First, open the door. Turn off the dishwasher using the On/Left-on mode button (press and hold). Release the button. Press and hold the On/Left-on mode button until the display lights up. Within five seconds, press and hold the Programme selector and the Long dry button. - Page 14 Button press Options Settings Description Buzzer volume The dishwasher uses a buzzer to (Off) indicate when a programme is (Low) finished or when a fault has oc- curred. (High) Press Start/Stop to save the setting value and continue to the next setting. Operation This sound is used to confirm each (Off)
- Page 15 Button press Options Settings Description This option can be activated when (Off) (3-in-1/all-in-one using 3-in-1/all-in-one detergents. (On) detergent) The dishwashing programme automatically adapts to provide the best possible dishwashing and drying results every time. If you deactivate this option, the dish- washer will return to ordinary function for all programmes.
- Page 16 Button press Options Settings Description Water hardness Adjusting the water softener. (Soft water) Read off the appropriate setting from the water hardness table below. °dH °fH 10-14 9-11 15-20 12-14 21-25 15-19 26-34 (Hard water) 20-24 35-43 25-29 44-52 30-39 53-70 40-49 71-88...
-
Page 17: Care And Cleaning
CARE AND CLEANING COARSE FILTER The coarse filter traps larger food particles, which cannot get past the drainage pump. Empty the coarse filter as necessary. 1 Lift the coarse filter by the handle. 2 Empty the coarse filter. Remember to replace NOTE! The dishwasher must not be used without the Coarse filter... - Page 18 Shut off the water. DOOR Remove the plug from the wall socket. When cleaning the edge around the door, use only a slightly damp cloth (with a little cleaner if Call the service division. necessary). NOTE! WARNING! Do not forget to reinstall the fitted piece. Do not use a spray bottle or the like around the door lock.
-
Page 19: Troubleshooting
TROUBLESHOOTING Display Type of fault Action Overfilling Call the service division. Water outlet fault See "Water remains in the dishwasher" in the table below. Water inlet fault Check that the water tap is on. Inlet valve leakage Turn off the water tap and call the ser- vice division. - Page 20 Problem Possible causes Action Spots or films on the dishes. The water softener is leaking salt. Check that the salt compartment lid is properly tightened. Other- wise call the service division. Incorrect water softener setting. See the section Settings. Incorrect rinse aid dosage setting. See the sections Before washing for the first time and Settings.
- Page 21 Problem Possible causes Action The dishwasher does not start. The Start/Stop start button has Press and hold Start/Stop until the been pressed for too short a time. display shows (the door open symbol). This indicates that the dishwasher is ready to start. The door is not properly closed.
- Page 22 Problem Possible causes Action The dishes are not dry enough. Drying power too low. Activate the Long dry option. The dishwasher is not fully loaded. Fully load the dishwasher. Rinse aid needs topping up or Top up with rinse add or increase dosage is set too low.
-
Page 23: Information For Test Institute
INFORMATION FOR TEST INSTITUTE ENERGY LABELLING European test standard: EN 60436 Number of standard place settings: Dishwashing programmes: Eco wash, High temperature Connection: Cold water 15 °C Test method for noise measurement: IEC 60704-2-3 DOSAGES DURING TESTING Detergent: In accordance with EN 60436 Prewash: 7.5 gram Main wash:... -
Page 24: Technical Information
TECHNICAL INFORMATION INFORMATION ON ENERGY LABELLING Information sheet, in compliance with Commission Delegated Regulation (EU) No. 1059/2010 Gorenje+ Model designation: GDV642X A / GDV642XL A Number of standard place settings: Energy efficiency class: Annual energy consumption(AE 261 kWh per year... -
Page 25: Installation
INSTALLATION [mm] GDV642X: 1189 GDV642XL: 1229 30-94 *GDV642X: Remove locking nuts and any coasters for an installed height of 820-824 mm. *GDV642XL: Remove locking nuts and any coasters for an installed height of 860-864 mm. **Door length. It is important that you read through and follow Place a watertight protective tray on the floor the instructions and directions below. - Page 26 Once the installation is complete, the stopcock SETUP should be opened to allow the pressure to settle The recess and connection dimensions are for a while and to check that all connections are included in the separate installation tight. instructions. Check that all dimensions are correct before starting the installation.
-
Page 27: Service
SERVICE Read chapter Troubleshooting before contacting the service department. Note down the details on the rating plate positioned on the right inside ART. NO. SERIAL NO. the dishwasher. Note down the item number (1) and serial number (2). -
Page 28: Programme Chart
PROGRAMME CHART... -
Page 29: Your Notes
YOUR NOTES... - Page 30 YOUR NOTES...
- Page 31 QUICK GUIDE LOAD THE BASKETS (SEE PAGE 6) Do not rinse dishes under running water before loading them in the dishwasher. Simply scrape off large food particles before loading the dishwasher. CHECK THAT THE SPRAY ARMS CAN ROTATE FREELY Check also that the water tap is on. ADD DETERGENT (SEE PAGE 9) The detergent compartment has one smaller compartment for the prewash and one for the main wash.
- Page 32 en (12-14) Art. No.: 701744. Rev. 02. We reserve the right to make changes.
