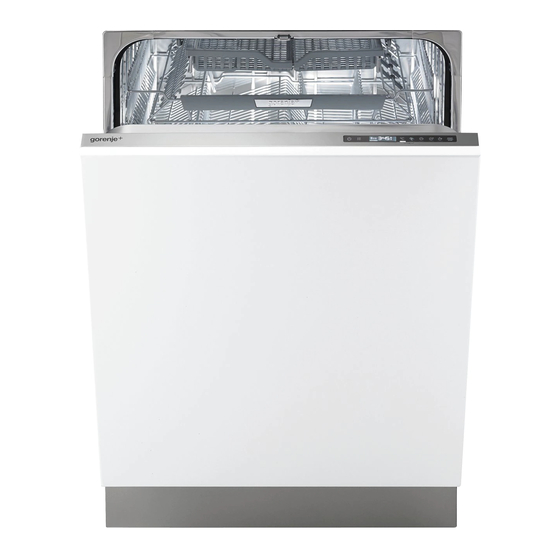

  • Page 1 Operating Instructions GDV674X...

  • Page 2: Table Of Contents

    CONTENTS FRONT PANEL TROUBLESHOOTING SAFETY INSTRUCTIONS INFORMATION FOR TEST INSTITUTE BEFORE WASHING FOR THE FIRST TECHNICAL INFORMATION TIME INSTALLATION LOADING THE DISHWASHER SERVICE USING THE DISHWASHER PROGRAMME CHART SETTINGS YOUR NOTES CARE AND CLEANING FRONT PANEL On/Left-on mode TAB (3-in-1/all-in-one 11 Delayed start detergent) Programme selector...

  • Page 3: Safety Instructions

    SAFETY INSTRUCTIONS INSTALLATION GENERAL See the section Installation. Read the operating instructions and keep them in a safe place! CHILD SAFETY Never use the dishwasher for any purpose Always close the door and start the other than that specified in these operating programme immediately after you have added instructions.

  • Page 4: Before Washing For The First Time

    BEFORE WASHING FOR THE FIRST TIME CLEANING DEAR GORENJE+ CUSTOMER! When cleaning the edge around the door, use We hope that you will have many years of use only a slightly damp cloth. Do not spray water from your new machine.
  • Page 5 FILL UP THE SALT NOTE! Before you begin using a dishwasher with a water After topping up, it may take a while before the softener, you must fill the salt compartment with symbol goes out. salt. Use large grain salt or special dishwasher salt. TOP UP WITH RINSE AID WARNING! Drying is faster and a better result is achieved if...

  • Page 6: Loading The Dishwasher

    LOADING THE DISHWASHER Crystal/Glass ECONOMIC DISHWASHING Place items so that they do not touch each other Run programmes only with a full load during the wash. Use a short programme with the Wait to run a programme until the dishwasher is lowest possible wash temperature.
  • Page 7 Raising the top cutlery tray 1 Pull out the top cutlery tray. 2 Pull forward the two locking handles on either side to raise the top cutlery tray. Lowering the top cutlery tray 1 Pull out the top cutlery tray. 2 Slide the two locking handles on either side LOWER BASKET downwards and backwards to lower the top...
  • Page 8 Positioning of cutlery basket lid (in upper basket) The cutlery basket lid can be removed and used, for example, as an extra cutlery basket in the upper basket (see below). Washing large plates Move foldable tines and their mounts to widen the distance between the tine rows to adapt the lower basket to plates with a diameter greater than 25 cm.

  • Page 9: Using The Dishwasher

    USING THE DISHWASHER NOTE! ADD DETERGENT Dishwasher tablets are not recommended for short programmes (less than 75 minutes). Use powder or liquid dishwasher detergent instead. 3-in-1/All-in-one detergent Read through the directions for these products carefully. If anything is unclear, contact the detergent manufacturer.
  • Page 10 Time program Hygiene wash The programme adapts to the specified running This programme is ideal to use where demands time or finish time. With this programme it is on hygiene are extra high, e.g. for baby bottles important to choose a time suited to how dirty and cutting boards.
  • Page 11 SELECTING OPTIONS Delayed start To select an option, press one of the option When you select Delayed start, the dishwasher buttons. The field under the button lights when will start 1-24 hours after you press the Start/Stop the option is activated. The available options button.

  • Page 12: Program

    TIME REMAINING Green Unload. The dishwashing programme is finished. Once you have selected a programme and Standby light for two hours. options, the display indicates how long the programme took the last time it was used. The STOPPING OR CHANGING A remaining time is updated after the water for the PROGRAMME final rinse has been heated.

  • Page 13: Settings

    SETTINGS DO AS FOLLOWS TO OPEN THE SETTINGS MENU: First, open the door. Turn off the dishwasher using the On/Left-on mode button (press and hold). Release the button. Press and hold the On/Left-on mode button until the display lights up. Within five seconds, press and hold the Programme selector and the Long dry button.
  • Page 14 Button press Options Settings Description Buzzer volume The dishwasher uses a buzzer to (Off) indicate when a programme is (Low) finished or when a fault has oc- curred. (High) Press Start/Stop to save the setting value and continue to the next setting. Operation This sound is used to confirm each (Off)
  • Page 15 Button press Options Settings Description You can activate this setting when (Off) (3-in-1/all-in-one using 3-in-1/ All-in-one detergent. (On) detergent) The dishwashing programmes automatically adapt to provide the best possible dishwashing and drying results every time. If you deactivate this option, the dish- washer will return to ordinary function for all programmes.
  • Page 16 Button press Options Settings Description Adjusting the water softener. Water hardness (Soft water) Read off the appropriate setting from the water hardness table below. °dH °fH 10-14 9-11 15-20 12-14 21-25 15-19 26-34 20-24 35-43 25-29 44-52 30-39 53-70 (Hard water) 40-49 71-88 Press Start/Stop to exit the settings menu.

  • Page 17: Care And Cleaning

    CARE AND CLEANING COARSE FILTER The coarse filter traps larger food particles, which cannot get past the drainage pump. Empty the coarse filter as necessary. 1 Lift the coarse filter by the handle. 2 Empty the coarse filter. Remember to replace NOTE! The dishwasher must not be used without the Coarse filter...
  • Page 18 Shut off the water. Pull the upper spray arm straight up to release Remove the plug from the wall socket. Top spray arm Call the service department. The upper basket must be removed before NOTE! the top spray arm can be released. See section Upper spray arm.

  • Page 19: Display

    TROUBLESHOOTING Display Type of fault Action Overfilling Call the service department. Water outlet fault See "Water remains in the dishwasher" in the table below. Water inlet fault Check that the water tap is on. Inlet valve leakage Turn off the water tap and call the ser- vice department.
  • Page 20 Problem Possible causes Action Spots or films on the dishes. The water softener is leaking salt. Check that the salt compartment lid is properly tightened. Other- wise call the service department. Incorrect water softener setting. See the section Settings. Incorrect rinse aid dosage setting. See the sections Before washing for the first time and Settings.
  • Page 21 Problem Possible causes Action The dishwasher does not start. The Start/Stop start button has Press and hold Start/Stop until the been pressed for too short a time. display shows (the door open symbol). This indicates that the dishwasher is ready to start. The door is not properly closed.
  • Page 22 Problem Possible causes Action The dishes are not dry enough. Drying power too low. Activate the Long dry option. The dishwasher is not fully loaded. Fully load the dishwasher. Rinse aid needs topping up or Top up with rinse add or increase dosage is set too low.

  • Page 23: Information For Test Institute

    INFORMATION FOR TEST INSTITUTE ENERGY LABELLING European test stand- EN 60436 ard: Number of standard place settings: Dishwashing pro- Eco wash, High temperature grammes: Connection: Cold water 15 °C Dosages during testing Detergent: In accordance with EN Rinse aid: In accordance with EN 60436 60436 Prewash:...
  • Page 24 MEASUREMENT OF NOISE LEVEL Test method for noise IEC 60704-2-3 measurement: Enclosure (inside di- w: 604 mm, h: 822 mm, d:570 mm mensions) Cover door w: 600 mm, h: 732 mm (Fitted according to the installation instructions.) Plinth Width: Inside dimensions enclosure, Height: 75 mm (Fitted in line with the cover door.) Other In accordance with IEC 60704-2-3.

  • Page 25: Technical Information

    TECHNICAL INFORMATION INFORMATION ON ENERGY LABELLING Information sheet, in compliance with Commission Delegated Regulation (EU) No. 1059/2010 Gorenje+ Model designation: GDV674X Number of standard place settings: Energy efficiency class: A+++ Annual energy consumption(AE 236 kWh per year Energy consumption of the standard cleaning cycle(E 0.83 kWh...

  • Page 26: Installation

    INSTALLATION 1198 [mm] 30-94 *Remove locking nuts for an installed height of 820-821 mm. **Door length. It is important that you read through and follow WARNING! the instructions and directions below. Conduct Turn off the water supply when installing the installation and connection in accordance with the dishwasher! separate installation instructions.

  • Page 27: Electrical Connection

    The drainage hose may be extended by a ELECTRICAL CONNECTION maximum of 3 m (the total length of the drainage Information about the electrical connection can hose must not exceed 4.5 m). Any joins and be found on the serial number plate. This connecting pipes must have an internal diameter specification must match the electricity supply.

  • Page 28: Service

    SERVICE Read chapter Troubleshooting before contacting the service department. Note down the details on the serial number plate positioned on the right ART. NO. SERIAL NO. inside the dishwasher. Note down the item number (1) and serial number (2).

  • Page 29: Programme Chart

    PROGRAMME CHART...

  • Page 30: Your Notes

    YOUR NOTES...

  • Page 31: Salt Indicator

    QUICK GUIDE LOAD THE BASKETS (See page 6.) Do not rinse dishes under running water before loading them in the dishwasher. Simply scrape off large food particles before loading the dishwasher. CHECK THAT THE SPRAY ARMS CAN ROTATE FREELY Check also that the water tap is on. ADD DETERGENT The detergent compartment has one smaller compartment for the prewash and one for the main wash.
  • Page 32 Art. No.: 493425. Rev. 04. We reserve the right to make changes. en (06-16)
