6. PCB board 7

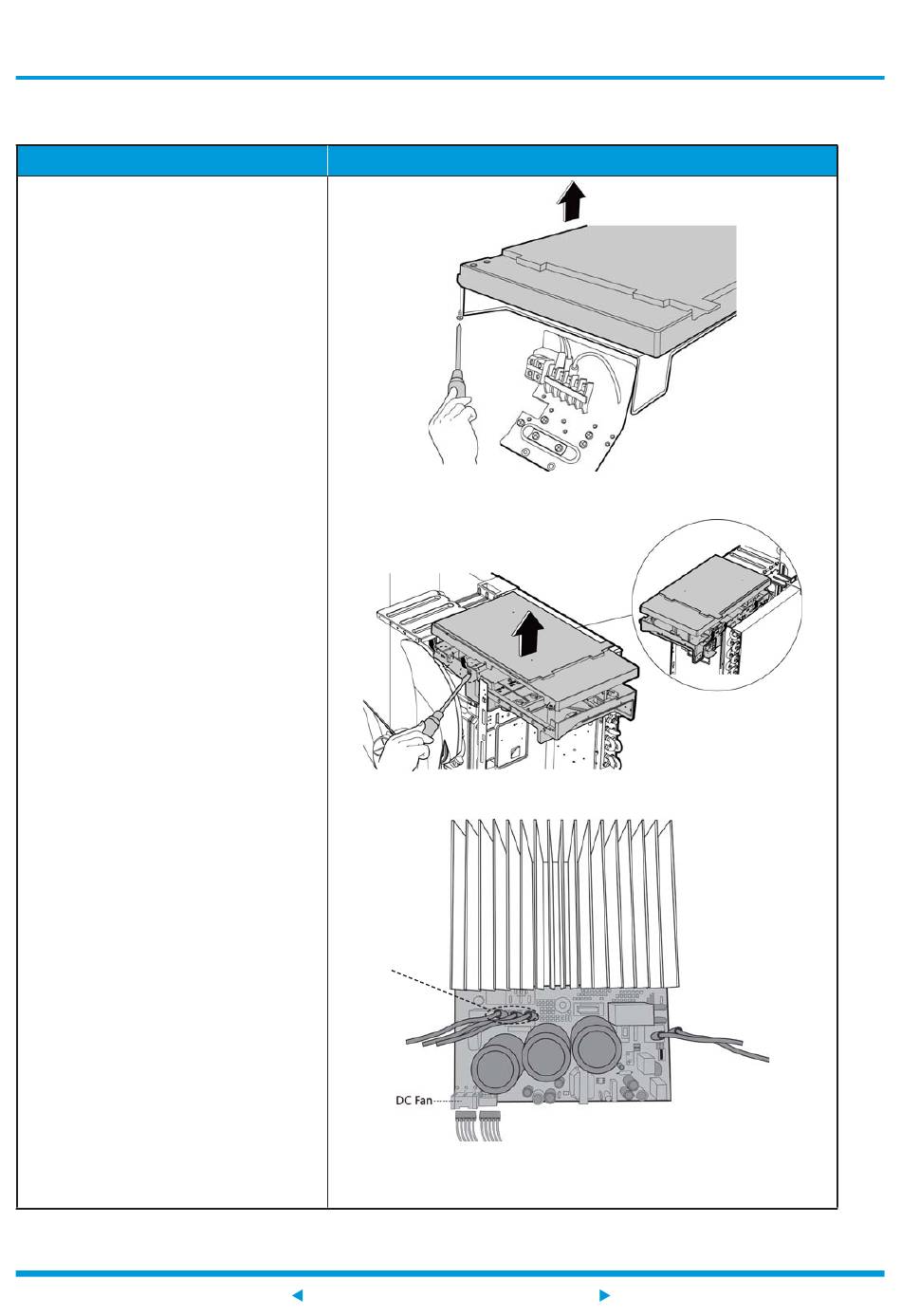

Procedure
1) Remove the screws of the top cover.
CJ_ODU_PCB_007-
(1 screws) (see
1 ).
2) Unfix the hooks and then open the
electronic control box cover (5 hooks)
CJ_ODU_PCB_007-2 ).
(see
3) Disconnect the connector for fan
motor from the IPM board (see
ODU_PCB_007-3 ).
4) Remove the connector for the
CJ_ODU_PCB_007-
compressor (see
3 ).
Note: This section is for reference only. Actual unit appearance may vary.
Illustration
CJ_
Compressor
Outdoor Unit Disassembly 22
CJ_ODU_PCB_007-1
CJ_ODU_PCB_007-2
CJ_ODU_PCB_007-3
