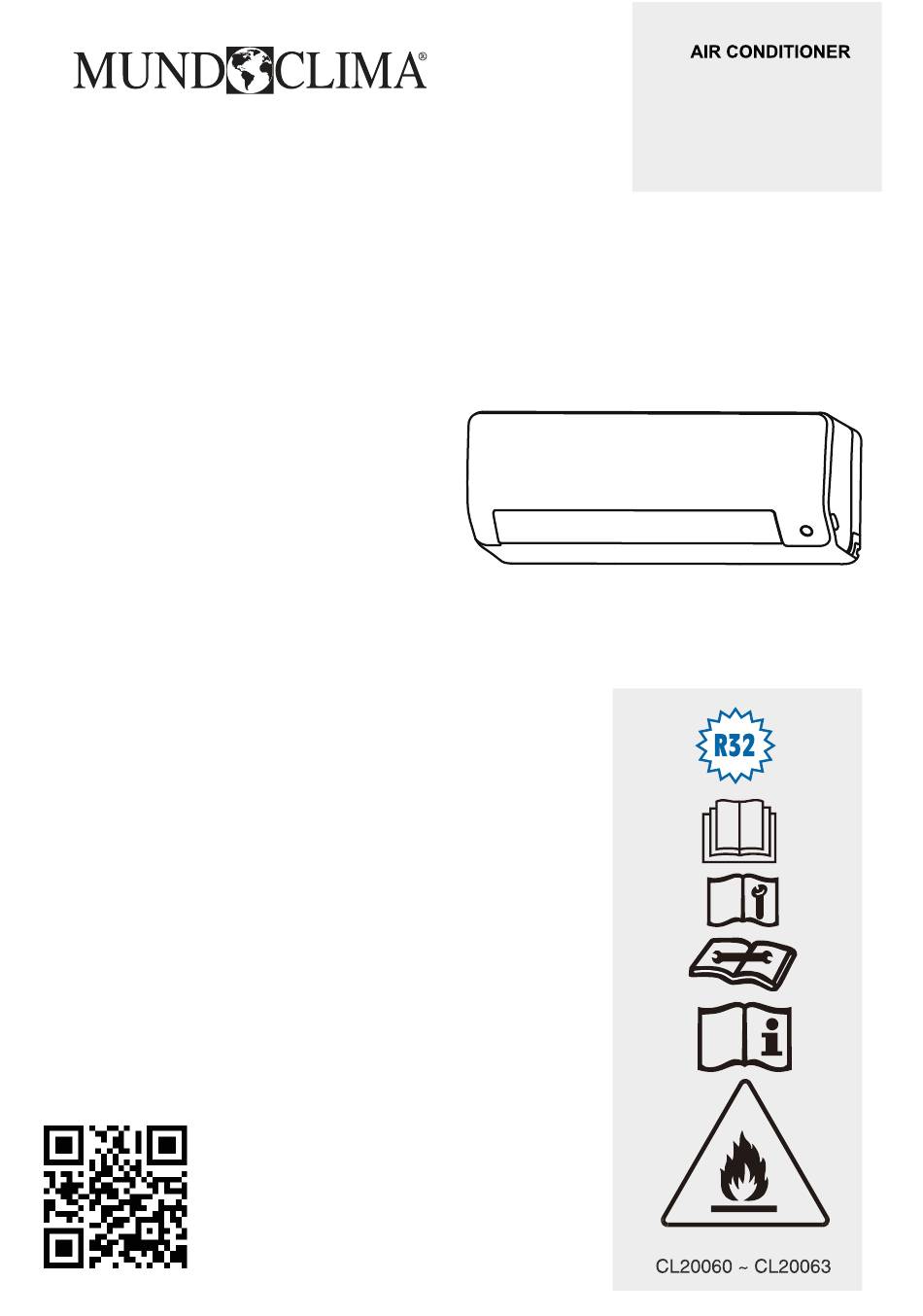

  • Page 1 Technical Manual MUPR-H14X Series CL20060 a CL20063 English www.mundoclima.com...

  • Page 2: Table Of Contents

    Table of Contents Page Specifications ...................... 3 Model Reference ....................... 4 General Specifications ....................5 Dimensional Drawings ....................11 Centre of gravity ....................... 15 Air Velocity and Temperature Distributions ..............17 Electrical Wiring Diagrams ..................25 Refrigerant Cycle Diagrams ..................28 Capacity Tables ......................

  • Page 3: Specifications

    Specifications Contents Model Reference ....................4 General Specifications ................... 5 Dimensional Drawings ..................11 Centre of gravity ....................15 Air Velocity and Temperature Distributions ............17 Electrical Wiring Diagrams ..................25 Refrigerant Cycle Diagrams .................. 28 Capacity Tables ....................... 32 Noise Criterion Curves ...................

  • Page 4: Model Reference

    Refer to the following table to determine the specific indoor and outdoor unit model number of your purchased equipment. Indoor Unit Model Outdoor Unit Model Capacity (Btu/h) Power Supply MUPR-09-H14X-I MUPR-09-H14X-E MUPR-12-H14X-I MUPR-12-H14X-E 1Phase, 220~240V~, 50Hz MUPR-18-H14X-E MUPR-18-H14X-I MUPR-24-H14X-I MUPR-24-H14X-E Page 4...

  • Page 5: General Specifications

    2. General Specifications (none) (none) Indoor Model Outdoor Model (none) (none) Power supply V- Ph-Hz 220~240-1-50 220~240-1-50 Rated Power Input 2300 2300 Rated Current 10.5 10.5 Model KSN98D22UFZ KSN98D22UFZ Type ROTARY ROTARY Brand GMCC GMCC Capacity 3095 3095 Input Compressor Rated current(RLA) Locked rotor Amp(LRA) Thermal protector...
  • Page 6 Number of rows Tube pitch(a)x row pitch(b) 21x22 21x22 Fin spacing Outdoor coil Fin type (code) Hydrophilic aluminum Hydrophilic aluminum Tube outside dia.and type 7,Inner groove tube 7,Inner groove tube Coil length x height x width 870x504x44 870x504x44 Number of circuits Outdoor air flow m3/h 2200...
  • Page 7 Model MUPR-18-H14X MUPR-24-H14X Indoor Model MUPR-18-H14X-I MUPR-24-H14X-I Outdoor Model MUPR-18-H14X-E MUPR-24-H14X-E Power supply V- Ph-Hz 220~240-1-50 220~240-1-50 Rated Power Input 2800 3700 Rated Current 13.0 Model KSN140D58UFZ KTM240D43UKT Type ROTARY Twin-ROTARY Brand GMCC GMCC Capacity 4315 7600 Input 1090 2045...
  • Page 8 Number of rows Tube pitch(a)x row pitch(b) 21x22 21x13.37 Fin spacing Outdoor coil Fin type (code) Hydrophilic aluminum Hydrophilic aluminum Tube outside dia.and type 7,Inner groove tube 7,Inner groove tube Coil length x height x width 900*44*609 900*44*609 Number of circuits Outdoor air flow m3/h 3500...
  • Page 9 MUPR-12-H14X (none) Model MUPR-09-H14X Indoor Model MUPR-09-H14X-I MUPR-12-H14X-I (none) Outdoor Model MUPR-09-H14X-E MUPR-12-H14X-E (none) Power supply V- Ph-Hz 220~240-1-50 220~240-1-50 220~240-1-50 Rated Power Input 2200 2200 2500 Rated Current 10.5 10.5 Model KSN98D64UFZ3 KSN98D64UFZ3 KSN140D21UFZ Type ROTARY ROTARY ROTARY Brand GMCC GMCC GMCC...
  • Page 10 Type Refrigerant Charged quantity 0.62 Design pressure 4.3/1.7 Liquid side/ Gas side mm (inch) 6.35/ 9.52(1/4"/3/8") Refrigerant piping Max. refrigerant pipe length Max. difference in level Connection wiring 1.5x5Core Plug type 1.5x3/no-plug Thermostat type Remote Control Operation temperature 16-30 Indoor(cooling/ heating) °C 16-32/0-30 Ambient tempera-...

  • Page 11: Dimensional Drawings

    3. Dimensional Drawings Indoor Unit Capacity Body Code W(mm) D(mm) H(mm) 9k~12k 1017 1190 Page 11...
  • Page 12 Outdoor Unit MUPR-09-H14X-E, MUPR-12-H14X-E Page 12...
  • Page 13 (NONE) Page 13...
  • Page 14 MUPR-18-H14X-E, MUPR-24-H14X-E Page 14...

  • Page 15: Centre Of Gravity

    4. Centre of gravity MUPR-09-H14X-E,MUPR-12-H14X-E (NONE) Page 15...
  • Page 16 MUPR-18-H14X-E, MUPR-24-H14X-E Page 16...

  • Page 17: Air Velocity And Temperature Distributions

    5. Air Velocity and Temperature Distributions Cooling(ID: 27 °C/80.6°F, OD: 35°C/95°F) MUPR-09-H14X-I Discharge Angle 60° Airflow velocity distributions Temperature distributions Page 17...
  • Page 18 Heating(ID: 20°C/68°F, OD: 7°C/44.6°F) MUPR-09-H14X-I Discharge Angle 110° Airflow velocity distributions Temperature distributions Page 18...
  • Page 19 Cooling(ID: 27 °C/80.6°F, OD: 35°C/95°F) MUPR-12-H14X-I Discharge Angle 60° Airflow velocity distributions Temperature distributions Page 19...
  • Page 20 Heating(ID: 20°C/68°F, OD: 7°C/44.6°F) MUPR-12-H14X-I Discharge Angle 110° Airflow velocity distributions Temperature distributions Page 20...
  • Page 21 Cooling(ID: 27°C/80.6°F, OD: 35°C/95°F) MUPR-18-H14X-I Discharge Angle 60° Airflow velocity distributions Temperature distributions Page 21...
  • Page 22 Heating(ID: 20°C/68°F, OD: 7°C/44.6°F) MUPR-18-H14X-I Discharge Angle 95° Airflow velocity distributions Temperature distributions Page 22...
  • Page 23 Cooling(ID: 27°C/80.6°F, OD: 35°C/95°F) MUPR-24-H14X-I Discharge Angle 65° Airflow velocity distributions Temperature distributions Page 23...
  • Page 24 Heating(ID: 20°C/68°F, OD: 7°C/44.6°F) MUPR-24-H14X-I Discharge Angle 100° Airflow velocity distributions Temperature distributions Page 24...

  • Page 25: Electrical Wiring Diagrams

    6. Electrical Wiring Diagrams Indoor unit Abbreviation Paraphrase Yellow-Green Conductor Positive and Negative Ion Generator Capacitor PLASMA Electronic Dust Collector LIVE NEUTRAL Indoor Room Temperature Coil Temperature of Indoor Heat Exchanger MUPR-09-H14X-I, MUPR-12-H14X-I, MUPR-18-H14X-I, MUPR-24-H14X-I Page 25...

  • Page 26: Outdoor Unit

    Outdoor Unit Abbreviation Paraphrase 4-WAY Gas Valve Assembly/4-WAY VALVE AC-FAN Alternating Current FAN DC-FAN Direct Current FAN COMP Compressor MUPR-09-H14X-E, MUPR-12-H14X-E, Page 26...
  • Page 27 MUPR-18-H14X-E, MUPR-24-H14X-E Page 27...

  • Page 28: Refrigerant Cycle Diagrams

    7. Refrigerant Cycle Diagrams Pipe Size (Diameter:ø) Piping length (m/ft) Elevation (m/ft) mm(inch) Model Additional Refrigerant Liquid Rated Max. Rated Max. MUPR-09-H14X-E 9.52(3/8) 6.35(1/4) 5/16.4 25/82 10/32.8 12g/m (0.13oz/ft) MUPR-12-H14X-E (NONE) 12.7(1/2) 6.35(1/4) 5/16.4 30/98.4 20/65.6 Page 28...
  • Page 29 Pipe Size (Diameter:ø) Piping length (m/ft) Elevation (m/ft) mm(inch) Additional Model Refrigerant Liquid Rated Max. Rated Max. (NONE) 12g/m (0.13oz/ 9.52(3/8) 6.35(1/4) 5/16.4 25/82 10/32.8 (NONE) Page 29...
  • Page 30 Pipe Size (Diameter:ø) Piping length (m/ft) Elevation (m/ft) mm(inch) Model Additional Refrigerant Liquid Rated Max. Rated Max. 12.7(1/2) 6.35(1/4) 5/16.4 30/98.4 20/65.6 12g/m (0.13oz/ft) MUPR-18-H14X-E Page 30...
  • Page 31 Pipe Size (Diameter:ø) Piping length (m/ft) Elevation (m/ft) mm(inch) Model Additional Refrigerant Liquid Rated Max. Rated Max. MUPR-24-H14X-E 15.9(5/8) 9.52(3/8) 5/16.4 50/164 25/82 24g/m (0.26oz/ft) Page 31...

  • Page 32: Capacity Tables

    8. Capacity Tables Cooling (NONE) ID WB 16.0 18.0 19.0 22.0 INDOOR (℃) OUTDOOR AIRFLOW DB(℃) ID DB (CMH) 23.0 25.0 27.0 29.0 23.0 25.0 27.0 29.0 23.0 25.0 27.0 29.0 23.0 25.0 27.0 29.0 (℃) 2.85 2.86 2.86 2.89 2.99 3.04 3.04...
  • Page 33 2.92 2.92 2.95 2.98 3.04 3.04 3.04 3.04 3.12 3.12 3.12 3.12 3.32 3.32 3.32 3.32 0.70 0.78 0.98 1.00 0.56 0.64 0.72 0.80 0.49 0.57 0.65 0.72 0.35 0.42 0.49 0.56 0.41 0.41 0.41 0.41 0.41 0.41 0.41 0.41 0.41 0.41 0.41...
  • Page 34 MUPR-09-H14X ID WB 16.0 18.0 19.0 22.0 INDOOR (℃) OUTDOOR AIRFLOW DB(℃) ID DB (CMH) 23.0 25.0 27.0 29.0 23.0 25.0 27.0 29.0 23.0 25.0 27.0 29.0 23.0 25.0 27.0 29.0 (℃) 2.85 2.86 2.86 2.89 2.99 3.04 3.04 3.04 3.06 3.06 3.06...
  • Page 35 2.98 3.01 3.04 3.07 3.13 3.13 3.13 3.16 3.21 3.21 3.21 3.21 3.41 3.41 3.41 3.41 0.78 0.90 1.00 1.00 0.60 0.71 0.83 0.98 0.52 0.63 0.74 0.85 0.33 0.42 0.53 0.64 0.43 0.43 0.43 0.43 0.43 0.43 0.43 0.43 0.43 0.43 0.43...
  • Page 36 (NONE) ID WB 16.0 18.0 19.0 22.0 INDOOR (℃) OUTDOOR AIRFLOW DB(℃) ID DB (CMH) 23.0 25.0 27.0 29.0 23.0 25.0 27.0 29.0 23.0 25.0 27.0 29.0 23.0 25.0 27.0 29.0 (℃) 3.71 3.72 3.72 3.72 3.90 3.96 3.96 3.96 4.00 4.00 4.00...
  • Page 37 3.84 3.84 3.87 3.90 4.02 4.02 4.02 4.05 4.12 4.12 4.12 4.12 4.40 4.40 4.40 4.40 0.73 0.83 1.00 1.00 0.58 0.67 0.76 0.98 0.50 0.60 0.69 0.78 0.34 0.42 0.51 0.59 0.61 0.61 0.61 0.61 0.60 0.60 0.60 0.60 0.60 0.60 0.60...
  • Page 38 MUPR-12-H14X ID WB 16.0 18.0 19.0 22.0 INDOOR (℃) OUTDOOR AIRFLOW DB(℃) ID DB (CMH) 23.0 25.0 27.0 29.0 23.0 25.0 27.0 29.0 23.0 25.0 27.0 29.0 23.0 25.0 27.0 29.0 (℃) 3.71 3.72 3.72 3.72 3.90 3.96 3.96 3.96 4.00 4.00 4.00...
  • Page 39 3.84 3.84 3.87 3.90 4.02 4.02 4.02 4.05 4.12 4.12 4.12 4.12 4.40 4.40 4.40 4.40 0.73 0.83 1.00 1.00 0.58 0.67 0.76 0.98 0.50 0.60 0.69 0.78 0.34 0.42 0.51 0.59 0.64 0.64 0.64 0.64 0.64 0.64 0.64 0.64 0.64 0.64 0.64...
  • Page 40 MUPR-18-H14X ID WB 16.0 18.0 19.0 22.0 INDOOR (℃) OUTDOOR AIRFLOW DB(℃) ID DB (CMH) 23.0 25.0 27.0 29.0 23.0 25.0 27.0 29.0 23.0 25.0 27.0 29.0 23.0 25.0 27.0 29.0 (℃) 5.50 5.50 5.50 5.50 5.78 5.90 5.90 5.90 5.93 5.93 5.93...
  • Page 41 5.74 5.74 5.74 5.80 6.05 6.05 6.05 6.05 6.20 6.20 6.20 6.20 6.57 6.57 6.57 6.57 0.69 0.77 1.00 1.00 0.56 0.64 0.70 0.98 0.49 0.57 0.65 0.71 0.36 0.42 0.49 0.56 0.92 0.92 0.92 0.92 0.91 0.91 0.91 0.91 0.91 0.91 0.91...
  • Page 42 (NONE) ID WB 16.0 18.0 19.0 22.0 INDOOR (℃) OUTDOOR AIRFLOW DB(℃) ID DB (CMH) 23.0 25.0 27.0 29.0 23.0 25.0 27.0 29.0 23.0 25.0 27.0 29.0 23.0 25.0 27.0 29.0 (℃) 5.50 5.50 5.50 5.50 5.78 5.90 5.90 5.90 5.93 5.93 5.93...
  • Page 43 5.74 5.74 5.74 5.80 6.05 6.05 6.05 6.05 6.20 6.20 6.20 6.20 6.57 6.57 6.57 6.57 0.69 0.77 1.00 1.00 0.56 0.64 0.70 0.98 0.49 0.57 0.65 0.71 0.36 0.42 0.49 0.56 1.00 1.00 1.00 1.00 1.00 1.00 1.00 1.00 1.00 1.00 1.00...
  • Page 44 MUPR-24-H14X ID WB 16.0 18.0 19.0 22.0 INDOOR (℃) OUTDOOR AIRFLOW DB(℃) ID DB (CMH) 23.0 25.0 27.0 29.0 23.0 25.0 27.0 29.0 23.0 25.0 27.0 29.0 23.0 25.0 27.0 29.0 (℃) 7.35 7.34 7.34 7.34 7.73 7.88 7.88 7.88 7.93 7.93 7.93...
  • Page 45 7.68 7.68 7.77 7.86 8.06 8.06 8.06 8.06 8.26 8.26 8.26 8.26 8.79 8.79 8.79 8.79 0.72 0.82 1.00 1.00 0.57 0.67 0.75 0.98 0.50 0.59 0.68 0.77 0.34 0.42 0.50 0.59 1.22 1.22 1.22 1.22 1.22 1.22 1.22 1.22 1.22 1.22 1.22...
  • Page 46 Heating (NONE) [SI_Unit] HEATING PERFORMANCE AT INDOOR DRY BULB TEMPERATURE TC:TOTAL CAPACITY IN KILOWATTS (KW) PI:TOTAL POWER IN KILOWATTS (KW) INDOOR OUTDOOR AIRFLOW (CMH) Indoor Conditions (DB °C ) Indoor Conditions (DB °C ) DB(°C) 16.0 20.0 22.0 24.0 16.0 20.0 22.0 24.0...
  • Page 47 MUPR-09-H14X [SI_Unit] HEATING PERFORMANCE AT INDOOR DRY BULB TEMPERATURE TC:TOTAL CAPACITY IN KILOWATTS (KW) PI:TOTAL POWER IN KILOWATTS (KW) INDOOR OUTDOOR AIRFLOW (CMH) Indoor Conditions (DB °C ) Indoor Conditions (DB °C ) DB(°C) 16.0 20.0 22.0 24.0 16.0 20.0 22.0 24.0 -25.0...
  • Page 48 (NONE) [SI_Unit] HEATING PERFORMANCE AT INDOOR DRY BULB TEMPERATURE TC:TOTAL CAPACITY IN KILOWATTS (KW) PI:TOTAL POWER IN KILOWATTS (KW) INDOOR OUTDOOR AIRFLOW (CMH) Indoor Conditions (DB °C ) Indoor Conditions (DB °C ) DB(°C) 16.0 20.0 22.0 24.0 16.0 20.0 22.0 24.0 -25.0...
  • Page 49 MUPR-12-H14X [SI_Unit] HEATING PERFORMANCE AT INDOOR DRY BULB TEMPERATURE TC:TOTAL CAPACITY IN KILOWATTS (KW) PI:TOTAL POWER IN KILOWATTS (KW) INDOOR OUTDOOR AIRFLOW (CMH) Indoor Conditions (DB °C ) Indoor Conditions (DB °C ) DB(°C) 16.0 20.0 22.0 24.0 16.0 20.0 22.0 24.0 -25.0...
  • Page 50 MUPR-18-H14X [SI_Unit] HEATING PERFORMANCE AT INDOOR DRY BULB TEMPERATURE TC:TOTAL CAPACITY IN KILOWATTS (KW) PI:TOTAL POWER IN KILOWATTS (KW) INDOOR OUTDOOR AIRFLOW (CMH) Indoor Conditions (DB °C ) Indoor Conditions (DB °C ) DB(°C) 16.0 20.0 22.0 24.0 16.0 20.0 22.0 24.0 -20.0...
  • Page 51 (NONE) [SI_Unit] HEATING PERFORMANCE AT INDOOR DRY BULB TEMPERATURE TC:TOTAL CAPACITY IN KILOWATTS (KW) PI:TOTAL POWER IN KILOWATTS (KW) INDOOR OUTDOOR AIRFLOW (CMH) Indoor Conditions (DB °C ) Indoor Conditions (DB °C ) DB(°C) 16.0 20.0 22.0 24.0 16.0 20.0 22.0 24.0 -15.0...
  • Page 52 MUPR-24-H14X [SI_Unit] HEATING PERFORMANCE AT INDOOR DRY BULB TEMPERATURE TC:TOTAL CAPACITY IN KILOWATTS (KW) PI:TOTAL POWER IN KILOWATTS (KW) INDOOR OUTDOOR AIRFLOW (CMH) Indoor Conditions (DB °C ) Indoor Conditions (DB °C ) DB(°C) 16.0 20.0 22.0 24.0 16.0 20.0 22.0 24.0 -20.0...

  • Page 53: Noise Criterion Curves

    9. Noise Criterion Curves Indoor Unit 0.8m Microphone Notes: -Sound measured at 1.0m away from the center of the unit. -Data is valid at free field condition -Data is valid at nominal operation condition -Reference acoustic pressure OdB = 20µPa -Sound level will vary depending on a range of factors such as the construction -(acoustic absorption coefficient) of particular room in which the equipment is installed.
  • Page 54 MUPR-09-H14X-I MUPR-12-H14X-I MUPR-18-H14X-I MUPR-24-H14X-I Page 54...
  • Page 55 Outdoor Unit Note: H= 0.5 × height of outdoor unit Notes: -Sound measured at 1.0m away from the center of the unit. -Data is valid at free field condition -Data is valid at nominal operation condition -Reference acoustic pressure OdB=20µPa -Sound level will vary depending on arrange off actors such as the construction (acoustic absorption coefficient) of particular room in which the equipment is installed.
  • Page 56 (NONE) (NONE) MUPR-09-H14X-E MUPR-12-H14X-E Page 56...
  • Page 57 MUPR-18-H14X-E (NONE) MWUPR-24-H14X-E Page 57...

  • Page 58: Electrical Characteristics

    10. Electrical Characteristics Indoor Unit Power Supply Model Phase Voltage 0.02 0.16 MUPR-09-H14X-I 220-240 0.02 0.16 MUPR-12-H14X-I min:198 0.03 0.11 MUPR-18-H14X-I max:264 0.058 0.206 MUPR-24-H14X-I Outdoor Unit Power Supply Compressor Model Phase Voltage 7.52 12.82 0.034 0.89 (NONE) MUPR-09-H14X-E 6.86 11.51...

  • Page 59: Product Features

    Product Features Contents Operation Modes and Functions ................61 Abbreviation ....................61 Safety Features ....................61 Display Function ..................61 Fan Mode ....................62 Cooling Mode .....................62 Heating Mode(Heat Pump Units) ..............63 Auto-mode ....................64 Drying Mode ....................64 Forced Operation Function ................64 1.10 Timer Function ....................65 1.11 Sleep Function .....................65 1.12 Follow me(Optional) ..................65 1.13 Auto-Restart Function ..................65...
  • Page 60 Contents Remote Controller Functions ................67 Infrared Wireless Remote Controller.............67...

  • Page 61: Operation Modes And Functions

    1. Operation Modes and Functions conditioner continues operation and displays the corresponding error code, allowing for emergency use. • When more than one temperature sensor is Abbreviation malfunctioning, the air conditioner ceases operation. Unit element abbreviations Display Function Abbreviation Element Unit display functions Indoor room temperature Coil temperature of evaporator...

  • Page 62: Fan Mode

    Fan Mode • Various frequency limit shutdown occurs. 1.5.2 Indoor Fan Control When fan mode is activated: 1) In cooling mode, the indoor fan operates continuously. • The outdoor fan and compressor cease operation. The fan speed can be set to 1%-100%, or auto. •...

  • Page 63: Heating Mode(Heat Pump Units)

    When the condenser temperature exceeds a configured • The indoor fan is controlled by the indoor value, the compressor ceases operation. temperature T1 and indoor unit coil temperature 1.5.5 Evaporator Temperature Protection 19°C(66.2°F) TE1=0 TE1=19°C T1 15°C(59°F) T1 < 19°C(66.2°F) (34.2°F-T1) •...

  • Page 64: Auto-Mode

    • If any one of the following conditions is satisfied, 16°C~30°C. defrosting ends and the machine switches to normal • In auto mode, the machine selects cooling, heating, heating mode: auto-drying or fan-only mode on the basis of T1,Ts, T4 •...

  • Page 65: Timer Function

    • Changes in: temperature stops decreasing and the indoor fan is fixed at low speed. Anti-cold wind function takes • mode priority. • fan speed • The operating time for sleep mode is 8 hours, after • setting temperature which, the unit exits this mode. •...

  • Page 66: Eco Function

    1.16 ECO function • When this function is turned on, the indoor unit display window appears “CL”, after 20 to 45 minutes, • Used to enter the energy efficient mode. the unit will turn off automatically and cancel Active Clean function. •...

  • Page 67: Remote Controller Functions

    2. Remote Controller Functions Infrared Wireless Remote Controller 2.1.1. RG10A(B2S)/BGEF (Standard) Remote Controller Specifications Model RG10A(B2S)/BGEF Rated Voltage 3.0V (Dry batteries R03/LR03×2) Reaching Distance Environment Temperature Range -5°C~60°C(23°F~140°F) Buttons and Functions Page 67...
  • Page 68 Remote LCD Screen Indicators Page 68...

  • Page 69: How To Use The Basic Functions

    How To Use The Basic Functions Setting Temperature The operating temperature range for units is 16-30 C/60- F. You can increase or decrease the set temperature in F increments. AUTO Operation In AUTO mode, the unit will automatically select the COOL, FAN, HEAT or DRY mode based on the set temperature.
  • Page 70 FAN Operation 1. Press the MODE button to select FAN mode. 2. Press the FAN button to select the fan speed in a range of Au-100%, in conjunction with Temp Temp button. 3. Press the ON/OFFbutton to start the unit. NOTE: You can’t set temperature in FAN mode.
  • Page 71 How To Use The Advanced Functions Swing function Press Swing button Swing Swing The horizontal louver will swing up and down Keep pressing this button more than 2 seconds, automatically when pressing Swing button. the vertical louver swing function is activated. Press again to make it stop.
  • Page 72 BOOST Function Press Boost button When you select Boost feature in COOL mode, the unit will blow cool air with strongest wind setting to jump-start the Boost cooling process. When you select Boost feature in HEAT mode, the unit will blow heat air with strongest wind setting to jump-start the heating process(some units).

  • Page 73: Installation

    Installation Contents Accessories ........................74 Installation Overview-Indoor Unit ................ 76 Location selection ....................77 Indoor Unit Installation ..................78 Outdoor unit installation(Side Discharge Unit) ........... 84 Refrigerant Pipe Installation ................. 85 Vacuum Drying and Leakage Checking ..............87 Additional Refrigerant Charge ................88 Electrical and Gas Leak Checks ................

  • Page 74: Accessories

    Accessories Name Shape Quantity Mounting plate Clip anchor 5~8(depending on models) Mounting plate fixing screw ST3.9 X 25 5~8(depending on models) Remote controller Mode ON/OFF Timer Follow TurboI Self clean Fixing screw for remote controller holder ST2.9 x Optional Parts Remote controller holder Dry battery AAA.LR03 Seal...
  • Page 75 1 2 3 Magnetic ring and belt(if supplied ,please refer to the wiring diagram to install it on Varies by models Pass the belt through the connective cable. ) the hole of the Magnetic ring to fix it on the cable Page 75...

  • Page 76: Installation Overview-Indoor Unit

    1. Installation Overview-Indoor Unit Installation Order Distance from ceiling is determinded by the installation method. 12cm 12cm (4.75in) (4.75in) BUBBLE LEVEL 2.3m (90.55in) inch LIQUID inch RECOMMAND Attach Mounting Plate Select Installation Location Determine Wall Hole Position Drill Wall Hole Connect Piping Connect Wiring (not applicable for some...

  • Page 77: Location Selection

    2. Location selection Unit location selection can refer to installation manual. DO NOT install the unit in the following locations: Where oil drilling or fracking is taking place. Coastal areas with high salt content in the air. Areas with caustic gases in the air, such as near hot springs.

  • Page 78: Indoor Unit Installation

    • Need the back holder to prop up the unit: If connecting pipe and cable with front panel open, the minimum distance from ceiling is 22cm or more, if MUPR-18-H14X-I connecting pipe and cable without front panel(remove it) , Indoor unit outline the minimum distance from ceiling is 11cm or more.

  • Page 79: Drill Wall Hole For Connective Piping

    Drill wall hole for connective piping You must drill a hole in the wall for refrigerant piping, the drainage pipe, and the signal cable that will connect the indoor and outdoor units. 1. Determine the location of the wall hole based on the If need to cut the big size plastic position of the mounting plate.
  • Page 80 • Wrap the connection point firmly with Teflon tape to Connect signal and power cable ensure a good seal and to prevent leaks. 3.6.1 Before performing electrical work, read • Remove the air filter and pour a small amount of these regulations water into the drain pan to make sure that water flows from the unit smoothly.
  • Page 81 • Signal Cable: H07RN-F Table: Minimum Cross-Sectional Area able of Power and Signal Cables open the Rated Current of Nominal Cross-Sectional Wire cover Appliance (A) Area (mm²) > 3 and ≤ 6 0.75 Terminal > 6 and ≤ 10 block >...

  • Page 82: Wrap Piping And Cables

    The air conditioner’s circuit board (PCB) is designed with a • Do not wrap ends of piping fuse to provide overcurrent protection. The specifications When wrapping the bundle, keep the ends of the piping of the fuse are printed on the circuit board, such as: unwrapped.
  • Page 83 panel in the place marked “PULL”, pull it upwards to release the buckles, then take the lower panel down. Open the cover and unscrew the screw Use the holder at the back AUTO COOL of the unit against on the mounting plate to prop up the unit Step 3.

  • Page 84: Outdoor Unit Installation(Side Discharge Unit)

    4. Outdoor unit installation(Side Cation Discharge Unit) Since the gravity center of the unit is not at its physical center, so please be careful when lifting it with a sling. Service space for outdoor unit Never hold the inlet of the outdoor unit to prevent it from deforming.

  • Page 85: Refrigerant Pipe Installation

    5. Refrigerant Pipe Installation Maximum length and drop height Ensure that the length of the refrigerant pipe, the number of bends, and the drop height between the indoor and Base pan hole of outdoor units meets the requirements shown in the outdoor unit following table.
  • Page 86 After flared the pipe, the opening part must be seal by end cover or adhesive tape to avoid duct or exog- enous impurity come into the pipe. 7. Drill holes if the pipes need to pass the wall. 8. According to the field condition to bend the pipes so that it can pass the wall smoothly.

  • Page 87: Vacuum Drying And Leakage Checking

    6. Vacuum Drying and Leakage water might penetrated into pipeline. Checking 3. Construction period is long, and rain water might penetrated into pipeline. Purpose of vacuum drying 4. Rain water might penetrate into pipeline during construction. Eliminating moisture in system to prevent the phe- nomena of ice-blockage and copper oxidation.

  • Page 88: Additional Refrigerant Charge

    7. Additional Refrigerant Charge 8. Electrical and Gas Leak Checks After the vacuum drying process is carried out, the additional refrigerant charge process need to be Electrical Safety Checks performed. The outdoor unit is factory charged with refrigerant. After installation, confirm that all electrical wiring is installed in accordance with local and national regulations, The additional refrigerant charge volume is decided and according to the Installation Manual.

  • Page 89: Test Operation

    9. Test Operation Before test run: Only perform test run after you have completed the following steps: • Electrical Safety Checks – Confirm that the unit’s electrical system is safe and operating properly • Gas Leak Checks – Check all flare nut connections and confirm that the system is not leaking •...
