Service manual
Procedure

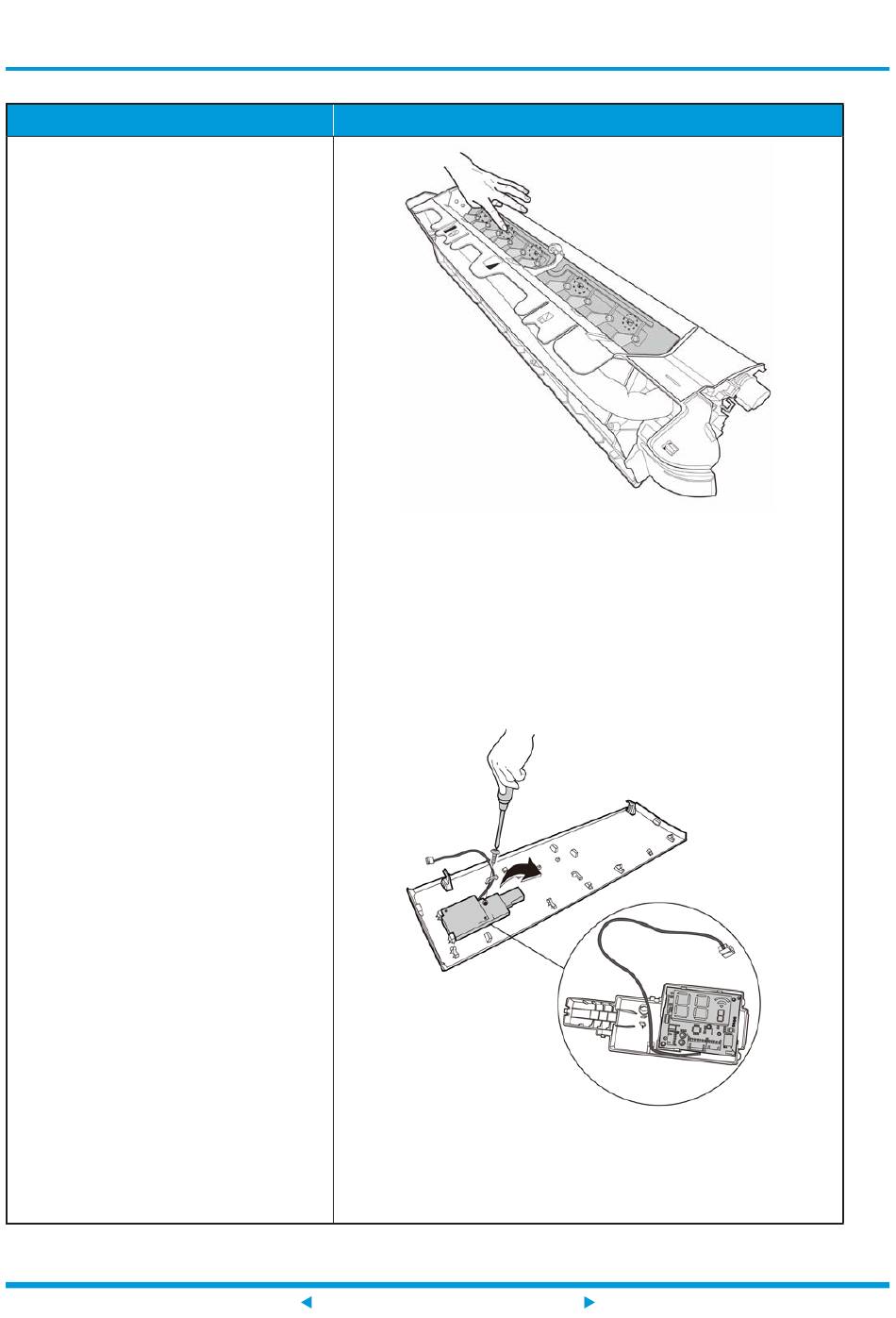

12) Release the 5 hooks of the vertical
blades, then pull the vertical blades
rightward and remove it (see CJ_AG_
INV_011).
13) Remove 1 screw of the display board.
(see CJ_AG_INV_012).
14) Rotate the display board in the
direction shown in the right picture.
CJ_AG_INV_012 ).
(see
Note: This section is for reference only. Actual unit appearance may vary.
Illustration
Indoor Unit Disassembly 8
CJ_AG_INV_011
CJ_AG_INV_012
H11 series
