Summary of Contents for Soehnle Professional 7700

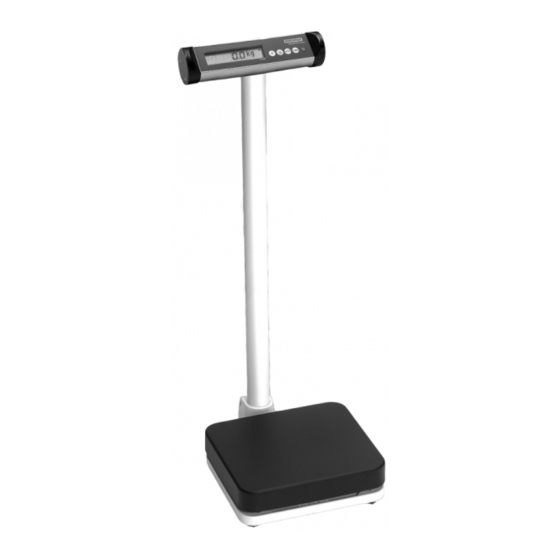

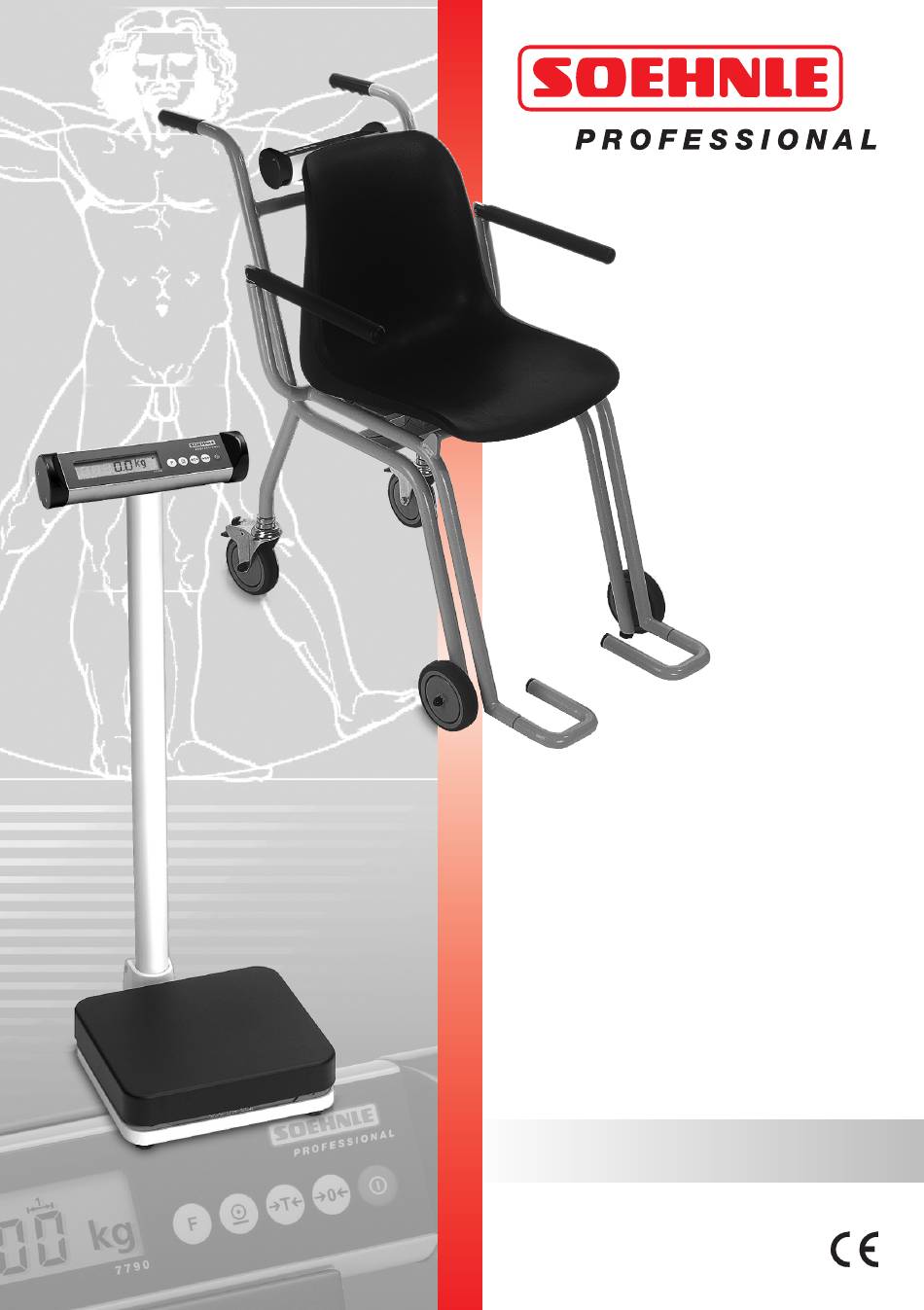

- Page 1 Bedienungsanleitung Operating Instructions Mode d’emploi Instrucciones de manejo Modo de utilização 7700, 7701, 7702...
-
Page 2: Safety Instructions
Type Execution Applicator Weighing range Parts catalog 1 = 150 kg 50 g 1 kg 7700 Stand Platform 470.014.019 2 = 250 kg 100 g 2 kg 1 = 150 kg 50 g... - Page 3 ENGLISH These operating instructions are part of the appliance. They must always be kept close to the applian- ce. Compliance with these operating instructions is mandatory in order to ensure the correct function and operation of the appliance. If the appliance fails to function correctly, the appliance may be dama- ged.
- Page 4 ENGLISH Notes Interference suppression of the unit corresponds to the valid EU directive 89/336/EWG. The display value may be influenced by extreme electrostatic and electro-magnetic interference, e.g. operation of a radio unit or a mobile phone in close vicinity to the unit. When the electrostatic interference is no longer present, the unit can again be used for its intended purpose.
- Page 5 ENGLISH Description of the type label Weighing ranges Maximum permitted weighing range Minimum permitted weighing range Calibration value (graduation) Serial number of scale (scale type, last digits of year of manufacture, number) EU conformity symbol with year of application, also start of calibration validity Precision class D03-09-019 Number of EU admission...
-
Page 6: Installation And Commissioning
Normal batteries will destroy the appliance. 6. Set up the scales at the point of application. Align 7700 and 7701 using a spirit level and ensure that the appliance is horizontal. 7. Align the 7702 using the spirit level and the adju- stable feet until it is horizontal. -
Page 7: Switching Off
ENGLISH Switching on Only when the scale is not loaded. After the test routine, the display is set to zero. The scale is ready for use. Step onto the scales or sit on the scales. The body weight appears in the display. Setting to zero Necessary when the display does not show zero, when unloaded. -
Page 8: Extended Functions
ENGLISH Extended functions key can be programmed with the following functions: Hold, unit switch-over, BMI and special Dialysis function. The standard function programmed is BMI. You can make changes in User mode (p. 19/20). • Press the function key • Display, e.g. 170 = body height in cm •... - Page 9 ENGLISH kg/lb switch (with non-calibratable units) Your service partner can activate 2 different functions: Assignment of the key to switch units. (On restarting, the most recently chosen unit is displayed). General restriction to kg or lb ( key can be assigned to Count or Hold).
- Page 10 ENGLISH R/W CONTENTS VALUE COMMENT DEFAULT RANGE Version number 0.00..9.99 Current version 1.00 Backlighting In rechargable mode, on for 30 sec. On by pressing a key or making a (always on with power supply) weight change Auto Off delay No automatic switch-off 1..60 Switch off delay in minutes Empty value...
- Page 11 ENGLISH Messages Elimination The scale sets the value Either take the load off zero automatically when the platform or press the it is switched on. key to activate the cali- brated zero point. The zero range at power- on is -5% ..+15% of the weighing range.
- Page 12 Soehnle Professional GmbH & Co. KG Technische Änderungen vorbehalten. Postfach 1308 GB Subject to technical modifications. D-71536 Murrhardt Tous droits de modification Telefon +49 (0)7192 / 9319-202 technique réservés. +49 (0)7192 / 9319-211 Todas las modificaciones técnicas reservadas. Email info@soehnle-professional.com Assunto às modificações técnicas.
