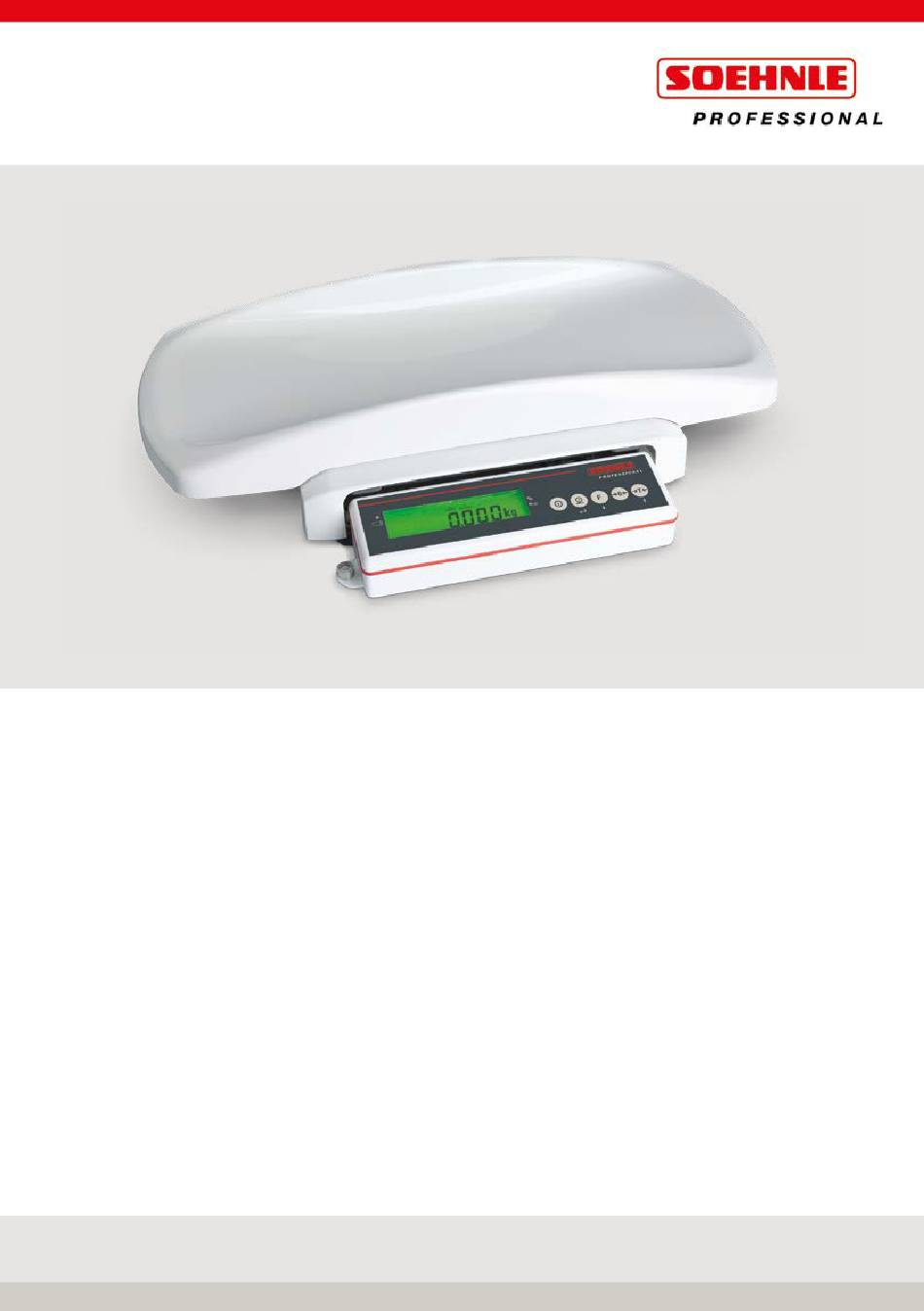

  • Page 1 Gebrauchsanweisung Babywaage geeicht 7752 www.soehnle-professional.com...
  • Page 2 Danke, dass Sie sich für dieses Soehnle Professional Produkt entschieden haben. Soehnle Professional ist eine Marke der Soehnle Industrial Soluntions GmbH. Dieses Produkt ist mit allen Merkmalen modernster Technik ausgestattet. Wenn Sie Fragen haben oder an Ihrer Babywaage Probleme auftreten, die in der Ge- brauchsanweisung nicht behandelt werden, wenden Sie sich bitte an den Soehnle Industrial Solutions Kundendienst oder an Ihren Servicepartner vor Ort.

  • Page 3: Table Of Contents

    Content 1. Scope of delivery ..............28 1.1 Optional accessories ..........28 1.2 Product specification ..........28 2. Warnings ..................29 3. General notes ................30 3.1 Technical Specifications ........... 30 3.2 Purpose of use ............30 3.3 Categorisation ............31 3.4 Safety informations ..........31 3.5 Cleaning ..............

  • Page 4: Scope Of Delivery

    1. Scope of delivery Article Article number Baby scale 7752.01.001 Baby tray 5020.01.001 Power supply 618.020.059 User manual 470.059.004 1.1 Optional accessories 5005.11.001 Digital baby height rod 5020.01.001 Baby tray 1.2 Product specification Terminal with control element Baby tray...

  • Page 5: Warnings

    2. Warnings In case of malfunction, contact the dealer or the manufacturer. Unauthorized modifications or repairs may damage your scale and expire the manufacturer‘s warranty. Terminal and scale may not get wet. Liquids (e.g. water) can cause damages. Use a dry towel, to dry the display. Disconnect the power supply to this unit before you prepare any installation, cleaning or maintenance.

  • Page 6: General Notes

    3. General information 3.1 Technical Specifications Baby scale 7752 Scale type Dual-range scale Maximum capacity 6 kg / 15 kg Minimal load 40 g / 100 g Digit pitch 2 g / 5 g Taring range 100 % of maximum capacity Measuremnents scale (W x D x H)

  • Page 7: Categorisation

    3. General information 3.3 Categorisation Application part The medical device is a type B application part and is intended for di- rect contact by the patient. The leakage currents correspond to the classification of application parts type B. 3.4 Safety informations This scale is designed for medical use.

  • Page 8: Cleaning

    3. General information netic influences, e.g. when operating a radio or mobile phone in the immediate vicinity of the device, the display value may be affected. At the end of the dis- turbance, the product can be used again as intended; if necessary, it must be switched back on.

  • Page 9: Disposal Of Batteries And Rechargeable Batteries

    3. General information If the delivered goods are defective for which the manufacturer is responsible, the manufacturer is entitled either to remedy the defect or to deliver a replacement. Replaced parts become the property of the manufacturer. If the remedy of the defect in the replacement delivery fails, the statutory provisions shall apply.

  • Page 10: Disposal Of The Scale

    2014/35/EU Medical Directive: 2007/47/EC 4.2 Labelling on the nameplate The illustration shows an example of a nameplate on the 7752 baby scale. Explanation of the symbols: EC conformity mark with No. of the „notified body“ in accordance with Application part type B according to standard...

  • Page 11: Explanation Of Calibration Labels And Symbols

    4. Labeling 4.3 Explanation of the calibration label and the symbols 0122 e.g. 0122, Official No. of the „Notified Body“ (this Active weighing range body carried out the initial verification) Maximum load of the weighing range Symbol for EC verification with year of Minimum load of the weighing range manufacture Calibration value (division) Serial number of the scale (scale type, year of...

  • Page 12: Basic Features

    5. Basic features 5.1 Installing and leveling the scale The scale is fully assembled on delivery. Remove the packaging. Place the scale on a firm, free and horizontal surface. Make sure that no cables or other objects are trapped under the scale. Level the scale by turning the foot screws.

  • Page 13: Weighing

    5. Basic features 5.4 Weighing CAUTION! Serious injury to the baby by falling. Baby scales are often placed on raised work surfaces. If the baby falls off the work surface it can cause serious or fatal injuries. Never leave a baby unattended on the scale.

  • Page 14: Zeroing The Scale

    5. Basic features 5.6 Zeroing the scale Press the zeroing button to correct small deviations from the zero point, e.g. due to dirt on the scale. Zero setting range calibratable and not calibratable: -1 to +3% of the weighing range. 5.7 Breast-milk-intake function The BMIF measures how much food the baby has taken during feeding.

  • Page 15: Turning Off The Scale

    5. Basic features You also have the option of deleting individual weight values.To do this, first press the function key and selet the desired PLU number. Confirm your selection with the reset key. The stored weight has been deleted. 5.8 Turning off the scale Press the ON/OFF key to switch off the scale.

  • Page 16: Special Features

    6. Special features 6.1 Free assignable function key This baby scale is equipped with an unlockable functi- on key.Breast- milk- intake function is activated by default. You can reprogram the function key in the set- ting mode. Press and then together with the ON/OFF key for 5 se conds until UCAL 1 appears.

  • Page 17: Hold Function

    6. Special features 6.2 Hold function The hold function allows you to freeze a weight value for a certain period of time. Before you can activate this function you must ensure that the hold function has been set to the function key that can be assigned freely.

  • Page 18: Printing / Edp Connection

    6. Special features 6.3 Print / EDV - connection (via optional interface RS232) A printer or EDP / PC can be connected to the standard- terminal with the optional serial interface (RS232). The configuration of the interface function is according to the separate descriptions 470.702.099 user Mode 3710 and 470.508.077 data Interface 3710.
  • Page 19 The selected data set is displayed rolling as follows: Indication on the Meaning display Sequential number of the alibi entry Scale type 7752 Year Serial number Sequential number of of the 0001 production measurement- point A 3.960 kg...

  • Page 20: Show Electronic Nameplate

    Display- Parameter Display step InFo Calibration counter Type 7752 Year Serial number Sn1234 ¯ 6,000kg and symbol for section 1 Max of section 1 Min of section 1 _ 0,40kg and symbol for section 1 e of section 1...

  • Page 21: Faults - Causes And Remedy

    7. Faults - causes and remedy Display Remedial actions Relieve the platform and remove any The scale automatically resets grunge.If the scale does not show to zero when you switch it on. If zero after a few seconds, please the scale is outside the intended contact your service partner.

  • Page 22: Notes On Electromagnetic Compatibility

    8. Notes on electromagnetic compatibility Guidelines and manufacturer‘s declaration - electromagnetic emissions The scale of type series 7752 is intended for operation in the ELECTROMAGNETIC ENVIRONMENT indicated below. The customer or the user of the 7752 scales should ensure that it is used in such an environment. Emission measurement Correspondence...
  • Page 23 Guidelines and manufacturer‘s declaration - electromagnetic immunity The scale of type series 7752 is intended for operation in the ELECTROMAGNETIC ENVIRONMENT indicated below. The customer or the user of the 7752 scales should ensure that it is used in such an environment. IEC 60601 test level...
  • Page 24 Guidelines and manufacturer‘s declaration - electromagnetic immunity The scale of type series 7752 is intended for operation in the ELECTROMAGNETIC ENVIRONMENT indicated below. The customer or the user of the 7752 scales should ensure that it is used in such an environment. IEC 60601 test level...
  • Page 25 The scale of type series 7752 is intended for operation in the ELECTROMAGNETIC ENVIRONMENT indicated below. The customer or the user of type 7752 scales can help to avoid electromagnetic interference by maintaining the minimum distance between portable and mobile RF telecommunication devices (transmitters) and type 7752 scales, depending on the output line of the communication device as indicated below.
  • Page 26 Merci d‘avoir choisi ce produit Soehnle Professional. Soehnle Professional est une marque de Soehnle Industrial Solutions GmbH. Ce produit est équipé de toutes les caractéristiques de la dernière technologie. Si vous avez des questions ou des problèmes avec votre pèse-bébé qui ne sont pas couverts dans le mode d‘emploi, veuillez contacter le service après clients de...
