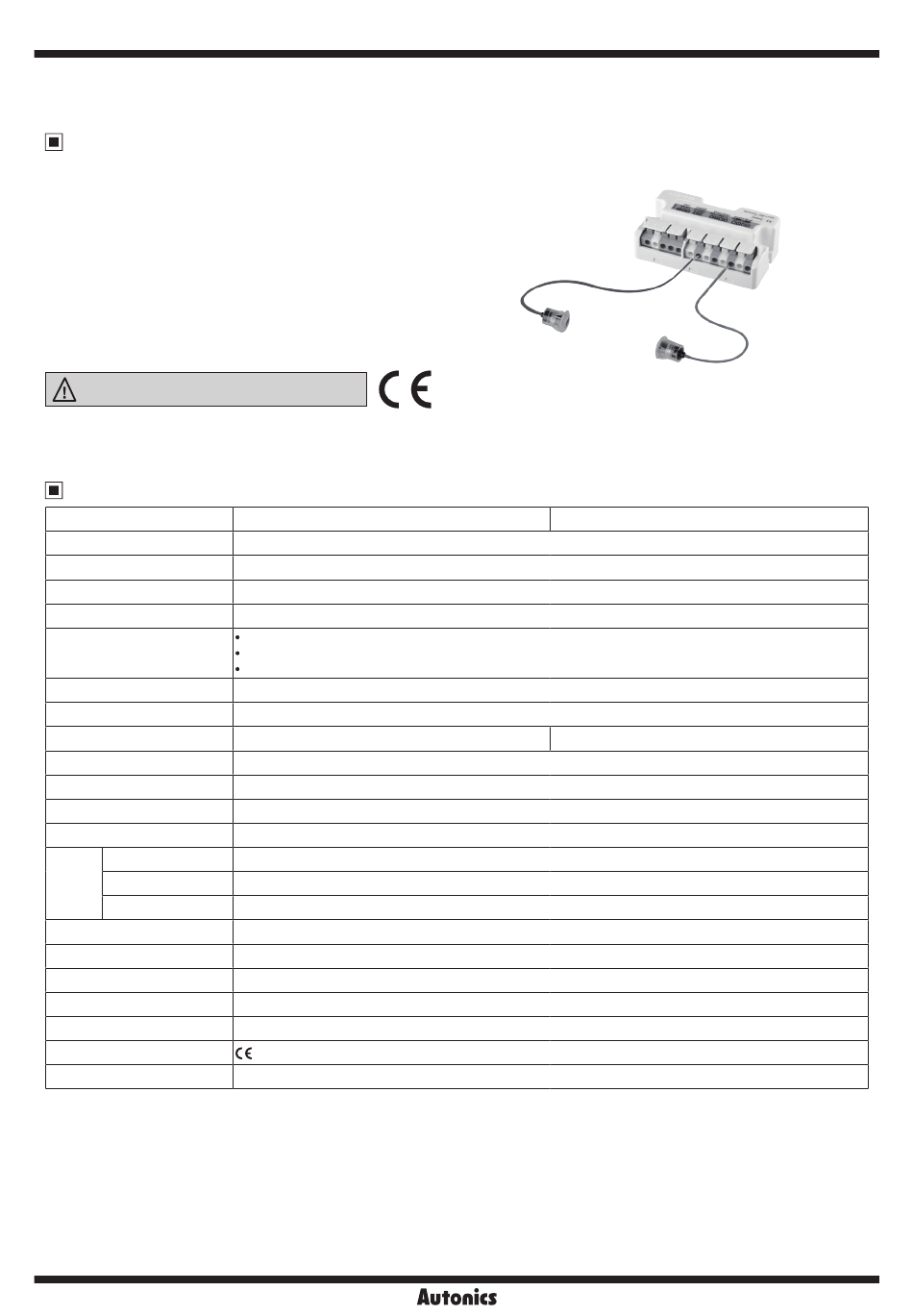

ADS-SE1/2

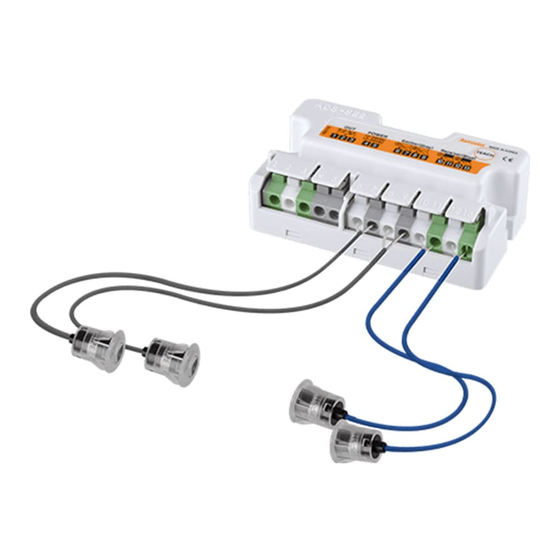

Door Side Sensor
Features
● Long sensing distance: 0 to 10m
● High ambient intensity of illumination:
Max. 100,000lx of sunlight
● Easy to connect sensor head to controller
● Easy sensitivity setting
(automatic sensitivity setting by one push method)
● Self-diagnosis function
● Compact Size (W77×L44×H24mm)
: minimized max. 20% than existing product
(based on depth)
Please read "Caution for your safety" in operation
manual before using.
Specifications
Model
Sensing type
Sensing distance
Power supply
Power consumption/Current
※ 1
Control output
Response time
Output holding time
Available sensor set
Indicator
Light source
Vibration
Shock
Ambient illumination Sunlight: Max. 100,000lx (Receiver illumination)
Environ-
Ambient temperature -20 to 55℃, storage: -25 to 60℃
ment
Ambient humidity
Protection structure
Sensor cable length
Sensor cable
Material
Accessory
Approval
※ 2
Weight
※ 1: Do not use Load which is beyond the rated capacity of contact point of Relay.
It can cause bad insulation, contact fusion, bad contact, relay breakdown, and fire etc.
※2 : The weight includes packaging. The weight in parentheses is for unit only.
※ Please purchase 1 set of sensor separately when mounting 2 sets of sensor.
※ The mounting bracket of sensor (ADS-SB12, ADS-SB10) is sold separately.
※ It is enable to purchase a controller (ADS-SEC1/2) separately.
※ The temperature or humidity mentioned in Environment indicates a non freezing or condensation environment.
C-16
ADS-SE1 (1-channel)
Through-beam type
0 to 10m
12-24VAC ±10% 50/60Hz / 12-24VDC ±10% (Ripple P-P: Max. 10% )
AC: Max. 2VA, DC: Max. 50mA
Contact capacity: 50VDC 0.3A (resistive load)
Contact composition: 1c
Relay life cycle: Mechanical- Min. 5,000,000 operations, Electrical- Min. 100,000 operations
Approx. 50ms (from light OFF)
Approx. 500ms (from light ON)
1 channel
OUT1 indicator: red, OUT2 indicator: green (Refer to C-20 for the display status in operation)
Infrared LED (850nm modulated)
1.5mm amplitude at frequency of 10 to 55Hz (for 1min.) in each X, Y, Z direction for 2 hours
2
500m/s
(approx. 50G) in each X, Y, Z direction for 3 times
35 to 85% RH, storage: 35 to 85% RH
IP30 (IEC standard)
5m
Ø2.4mm, 1-wire, length: 5m (AWG26, core diameter: 0.16mm, number of cores: 7, insulator out diameter: Ø1.32mm)
Case: ABS, Lens: PMMA
Sensor 1set (ADS-SHP), Fixing bolt (M4×20) for controller: 2EA
Approx. 450g (approx. 300g)
ADS-SE2 (2-channel)
2 channels
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Autonics ADS-SE1
Summary of Contents for Autonics ADS-SE1
- Page 1 ● Compact Size (W77×L44×H24mm) : minimized max. 20% than existing product (based on depth) Please read “Caution for your safety” in operation manual before using. Specifications Model ADS-SE1 (1-channel) ADS-SE2 (2-channel) Sensing type Through-beam type Sensing distance 0 to 10m Power supply 12-24VAC ±10% 50/60Hz / 12-24VDC ±10% (Ripple P-P: Max.
- Page 2 Economical Door Side Sensor Identification Photoelectric ● Controller (ADS-SEC1/2) ● Sensor (ADS-SHP) Sensors Fiber Sensor set Body Optic Sensors Lens Door/Area Head Sensors holder Proximity Sensors Pressure Sensors <ADS-SEC1> <ADS-SEC2> 1. OUT1 indicator (red) Rotary 2. OUT2 indicator (green) Encoders 3.
-
Page 3: Installation
ADS-SE1/2 Installation Controller Connection method for power and output wires 1. Follow as below when adjusting wiring length. • Press a connecting button and wiring it. Cut off the wiring length as much as user needs. • It does not operate normally if the wiring is connected Connect the wire to the terminal after taking off the wire conversely. -
Page 4: Sensitivity Setting
Economical Door Side Sensor 2. Mount sensor heads to the mounting holes. Caution for sensor installation Photoelectric When not using the bracket The rated sensing distance is 10m (A).Install the sensors Sensors within the rated sensing distance. ① One push method Install the sensor with more than 50cm (B) gap from the Fiber •... -
Page 5: Operation Check
※ If lack of sensitivity occurs by not-matched optical axes or pollution on the lens of emitter/receiver during self diagnostic function, for ADS-SE1, the OUT1 indicator (red) turns ON. For ADS-SE2, the OUT indicator of the channel lack of received light turns ON. -
Page 6: Caution For Using
Economical Door Side Sensor Caution For Using Photoelectric Sensors 1. When two channels of sensor are mounted closely, it 6. When making the length of the wiring (power wire or may cause mutual interference by the emitter of other output wire) long, it may cause malfunction by surge etc. Fiber sensor.
