Autonics AFE Series Quick Start Manual

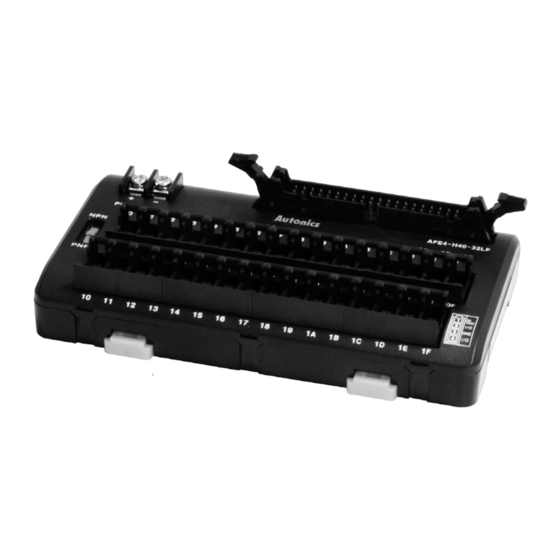

AFE Series
Sensor connector type terminal block
Features
lEasy wiring works and significant time saving combined with
sensor connector
[wire mount plug(CNE-P - , sold separately)]
lUnnecessary wire stripping and specific tools
lSpace saving with compact size
lEasy check for operation status and for cable break
by adopting LED signal
l2 ways of mounting (DIN rail, mounting with screws)
lSelectable NPN/PNP input (NPN/PNP selection switch)
※ For sensor connector wire plug (CNE Series), refer to A-2 to 5 pages.
※ It is recommended for I/O cable to use Autonics CJ Series
(connector transmission cable). Refer to -1 page.
Please read "Caution for your safety" in operation manual
before using this unit.
Model
Model Item
AFE4-H20-16LF
Interface
terminal block
AFE4-H40-32LF
Example of sensor connector type terminal block connection
Example of connection AFE4-H20-16LF and 40-point I/O module PLC with branch cable
PLC I/O Unit
B-16
For secondary
Connector type
Number of
for primary
Connector type
connector pins
Sensor
20-pin
Hirose
connector 4-pin
connector
40-pin
socket
Number
of sensor LED
connectors
16EA
Yes
32EA
Branch cable
Case type
Full case type
AFE4-H20-16LF
AFE4-H20-16LF
