Americana and New Generation Refrigerators

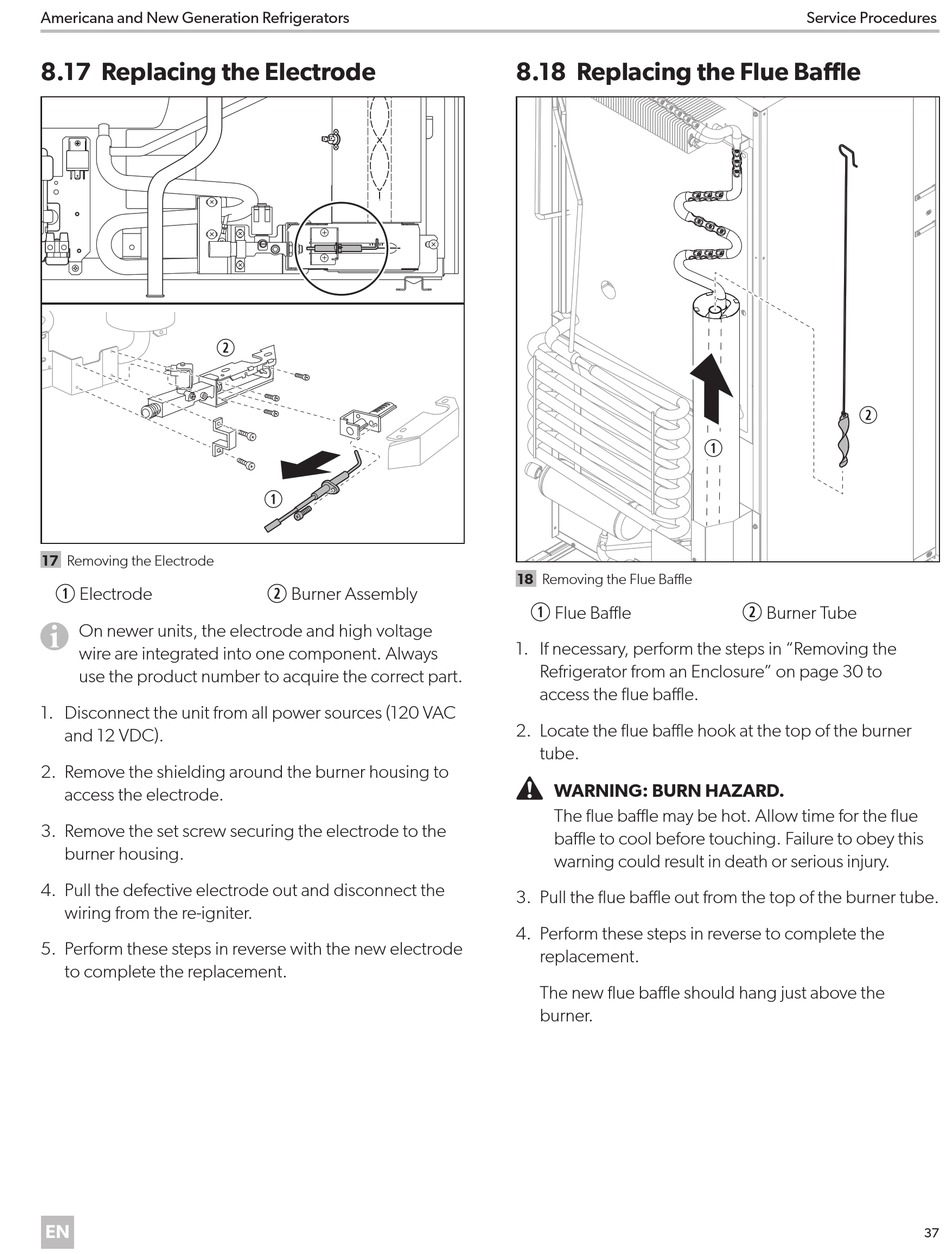

8.17 Replacing the Electrode

w
17 Removing the Electrode
Electrode
q
I On newer units, the electrode and high voltage
wire are integrated into one component. Always
use the product number to acquire the correct part.
1. Disconnect the unit from all power sources (120 VAC
and 12 VDC).
2. Remove the shielding around the burner housing to
access the electrode.
3. Remove the set screw securing the electrode to the
burner housing.
4. Pull the defective electrode out and disconnect the
wiring from the re-igniter.
5. Perform these steps in reverse with the new electrode
to complete the replacement.
EN
q
Burner Assembly
w

8.18 Replacing the Flue Baffle

18 Removing the Flue Baffle
Flue Baffle
q
1. If necessary, perform the steps in "Removing the
Refrigerator from an Enclosure" on page 30 to
access the flue baffle.
2. Locate the flue baffle hook at the top of the burner
tube.

WARNING: BURN HAZARD.
The flue baffle may be hot. Allow time for the flue
baffle to cool before touching. Failure to obey this
warning could result in death or serious injury.
3. Pull the flue baffle out from the top of the burner tube.
4. Perform these steps in reverse to complete the
replacement.
The new flue baffle should hang just above the
burner.
Service Procedures
w
q
Burner Tube
w
37
