Form No. 3315716.000 02/14
(French 3315717.000)
©2014 Dometic Corporation
LaGrange, IN 46761

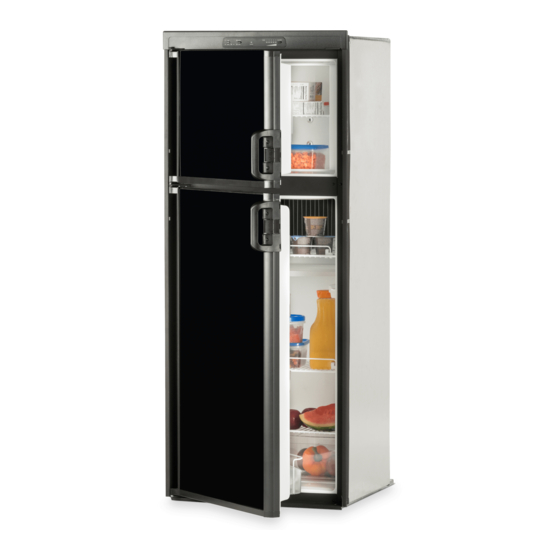

DM2652
RM2820
REPLACEMENT
CONVERT DM2652 REFRIGERATOR
TO REPLACE RM2820
(TO FIT RM2820 CABINET OPENING)
Read these instructions carefully. These
instructions MUST stay with this product.
USA
SERVICE OFFICE
Dometic Corporation
2320 Industrial Parkway
Elkhart, IN 46516
RECORD THIS INFORMATION FOR FUTURE
REFERENCE:
Model Number
Serial Number
Date Purchased
Retailer / Qualified Installer
RISER KIT
CANADA
Dometic Corporation
46 Zatonski, Unit 3
Brantford, ON N3T 5L8
CANADA
SERVICE CENTER &
DEALER LOCATIONS
Please Visit:
www.eDometic.com

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the DM2652 and is the answer not in the manual?

Questions and answers

Related Manuals for Dometic DM2652

Summary of Contents for Dometic DM2652

  • Page 1 Serial Number Date Purchased Retailer / Qualified Installer DM2652 RISER KIT RM2820 REPLACEMENT CONVERT DM2652 REFRIGERATOR TO REPLACE RM2820 (TO FIT RM2820 CABINET OPENING) Read these instructions carefully. These instructions MUST stay with this product. CANADA SERVICE CENTER & Form No. 3315716.000 02/14...

  • Page 2: Table Of Contents

    This kit is designed and intended for use on DM2652 refrigerators (hereinafter referred to as “refrigerator,” or “product”). It is designed to convert a DM2652 refrigerator to fit an existing cabinet opening of an old RM2820 refrigerator. This kit can be installed by one person. Use these instructions AND Installation Instructions (included with refrigerator) to ensure correct installation of kit, and correct function of product.

  • Page 3: Important Safety Instructions

    IMPORTANT SAFETY INSTRUCTIONS This manual has safety information and instructions to help The installation MUST comply with all ap- you eliminate or reduce the risk of accidents and injuries. plicable local and national codes, including the latest edition of the following standards: Recognize Safety Information U.S.A.

  • Page 4: Prepare Refrigerator

    PREPARE REFRIGERATOR Remove Old Refrigerator 3. Discard old (short) mounting rail. See (FIG. 1). 4. Place new (tall) mounting rail against bottom of Remove old refrigerator from enclosure. refrigerator, and align its mounting holes to the  S ee Installation Instructions (included with tapped holes in refrigerator.

  • Page 5: Connect Utilities

    INSTALL REFRIGERATOR FIG. 3 FIG. 4 3″ Screw 3″ Screw Mounting Rail Base Cover CONNECT UTILITIES 1.  C onnect water (if applicable) and electric ser- FIG. 6 vices to refrigerator. Gas Line Extension  S ee Installation Instructions (included with refrigerator) for complete instructions.

  • Page 6: Finish Installation

    FINISH INSTALLATION  A dditional procedures MUST be performed to complete installation. See Installation Instructions (included with refrigerator). Additional procedures may include: ● Install trim, door panels, and door handles. ● Verify refrigerator is sealed correctly to isolate combustion system from RV interior. ●...
  • Page 7 This manual has been provided courtesy of My RV Works, Inc. www.myrvworks.com You can find more RV service manuals here: www.myrvworks.com/manuals Over the years of running a mobile RV repair service, having a dedicated place to access service manuals for all the different appliances and components found on RVs was something that I always had a desire to create.
