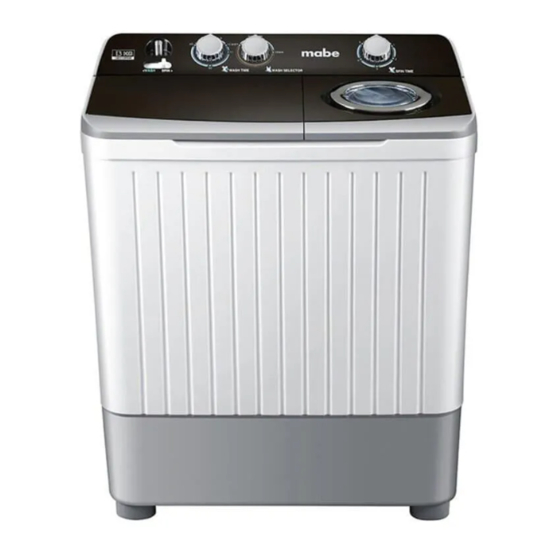

mabe LMD3124PBAB0 Service Manual

Twin-tub washing machine
Hide thumbs
Table of Contents

Advertisement

Quick Links

SERVICE MANUAL
Twin-tub washing machine
LMD3124PBAB0
Model:
WARNING
This service information is designed for experienced repair technicians only and is not designed for use by the general public.
It does not contain warnings or cautions to advise non-technical individuals of potential dangers in attempting to service a product. Products
powered by electricity should be serviced or repaired only by experienced professional technicians.Any attempt to service or repair the product
or products dealt with in this service information by anyone else could result in serious injury or death`

Advertisement

Table of Contents
loading

Related Manuals for mabe LMD3124PBAB0

Summary of Contents for mabe LMD3124PBAB0

  • Page 1 SERVICE MANUAL Twin-tub washing machine LMD3124PBAB0 Model: WARNING This service information is designed for experienced repair technicians only and is not designed for use by the general public. It does not contain warnings or cautions to advise non-technical individuals of potential dangers in attempting to service a product. Products powered by electricity should be serviced or repaired only by experienced professional technicians.Any attempt to service or repair the product...

  • Page 2: Table Of Contents

    Issue Service Manual Rev. Model NO: LMD3124PBAB0 Chapter 1: CONTENTS Contents Features Specifications Safety precondition Warning and cautions Installation and accessory parts 6-1.Dismantle and installation 6-2 .Points of Attention in After-sales Service Appearance brief introduction 7-1.Net dimension 7-2.Name parts Maintenance service and check method 8- 1.

  • Page 3: Features

    Issue Service Manual Rev. Model NO: LMD3124PBAB0 Chapter 2: FEATURES Features Full plastic cabinet Full plastic twin-tub integrated with cabinet, no rustiness for be affected with damp. Choose water current and washing time Choose spinning time Separate washing and spinning...

  • Page 4: Specifications

    Service Manual Issue Rev. Model NO:LMD3124PBAB0 Chapter 3: SPECIFICATIONS Model LMDX3124PBAB0 /LMD3123PBAB0 /LMD3124PBAB0 /LMDE3124PBAB0 /LTD3123PBAB0 Free standing Built under × EAN code Energy efficiency class — Features for use Wash capacity 10.0 Spin capacity Level/Volume Max/89 Med/76 Min/65 Preset ×...

  • Page 5: Safety Precondition

    Service Manual Issue Rev. Model NO:LMD3124PBAB0 Chapter 4: safety precondition Contents marked with that symbol are related to the safety of the Warning sign product and the users.Please operate in strict conformity to the contents. Contents marked with that symbol are actions forbidden to perform.

  • Page 6: Warning And Cautions

    Issue Service Manual Rev. Model NO:LMD3124PBAB0 Chapter 5: WARNING AND CAUTIONS Do not decompose, repair or alter the machine by yourself. Do not put any hot or heavy items Do not wash laundries with volatile ( such as the kettle with hot water ) materials (such as thinner, petrol etc.).

  • Page 7: Installation And Accessory Parts

    Issue Service Manual Rev. Model NO:LMD3124PBAB0 Chapter 6: INSTALLATION AND ACCESSORY PARTS 6.1 Dismantle and installation Please install and adjust the machine according to the requirement of the manual. It is very important to your security and correct operating the machine.
  • Page 8 Issue Service Manual Rev. Model NO:LMD3124PBAB0 Side sectionalview Fixing hook Drain hose fixing hook installation hple Drain hose Pull outwards slightly Rotate the fixing hook for 90 Rotate the fixing hook for 90...
  • Page 9 Issue Service Manual Rev. Model NO:LMD3124PBAB0 Dismantling and installation of the base frame Dismantle the back cover. Loosen the wires. Loosen the fastening screw of the spin tub shaft. Separate the shaft from the brake wheel. Loosen the brake hook. Take off the brake cable frame from the installation groove of the twin-tub.

  • Page 10: 6.2 Points Of Attention In After-Sales Service

    Issue Service Manual Rev. Model NO:LMD3124PBAB0 Dismantling and installation of the bearing seat Once the bearing seat is taken off, it can not be utilized again. Therefore do not dismantle it as far as possible. In case that it has to be replaced, please dismantle it as per following sequence, then install a new bearing seat.

  • Page 11: Appearance Brief Introduction

    Issue Service Manual Rev. Model NO:LMD3124PBAB0 Chapter 7: APPEARANCE BRIEF INTRODUCTION 7.1 Net dimension Unit mm Figure 8 height: 995mm / width:865mm / depth:500mm...

  • Page 12: 7-2.Name Parts

    Issue Service Manual Rev. Model NO:LMD3124PBAB0 7.2 Name of parts Wash tub cover Water-filling entrance Wash selector Wash timer Outer cover of the spin tub Spin timer Wash tub Inner cover of the spin tub Water level adjusting lever Spin tub...

  • Page 13: Maintenance Service And Check Method

    Service Manual Issue Rev. Model NO:LMD3124PBAB0 Chapter 8: MAINTENANCE SERVICE AND CHECK METHOD 8.1 Wash part Insert the power plug , but the machine does not work Check if the wash timer is opened ? Open the wash timer. Switch on the power.

  • Page 14: Spin Parts

    Service Manual Issue Rev. Model NO:LMD3124PBAB0 8.2 Spin part Check if the spin timer Open the spin timer. is opened ? Check if the power source Switch on the power. is available? Check if the contact between Replace the plug the plug and receptacle is good? or receptacle.

  • Page 15: Spin Parts

    Issue Service Manual Rev. Model NO:LMD3124PBAB0 8.3 check noise and others There is metal rubbing noise in braking Add the brake or replace If the brake arm the brake arm. has brake block ? The washing noise is too large Is the motor noise large? Replace the motor.
  • Page 16 Issue Service Manual Rev. Model NO:LMD3124PBAB0 The spinning noise is too large If the washing machine Set the machine horizontally. is set horizontally? If the sundries fall off between the Clean the sundries spin tub and twin-tub Add the oil between the bearing and the If there is different noise spin-tub.
  • Page 17 Service Manual Issue Rev. Model NO:LMD3124PBAB0 Not draining Set the switch to drain, the machine does not work. Install the knob again. Check if the select knob install? Replace the knob . Check if the select knob shatter? Check if the Drain pullback...

  • Page 18: Trouble-Shooting Answer To Question

    Service Manual Issue Rev. Model NO:LMD3124PBAB0 Chapter 9: Trouble-shooting answer to question (If there's breakdown, please pull off the power plug before checking) The following phenomena are not breakdowns sometimes. Please confirm again before sending it to repair. If there are real breakdowns, please come to the special maintenance department or after-sale service department of our company.

  • Page 19: Wiring Diagram

    Issue Service Manual Rev. Model NO:LMD3124PBAB0 Chapter 10: WIRING DIAGRAM Naranja/Orange Azul/Bl Negro/Black Boton de funcionamiento Gris/Gray Motor de ligero/Safety Switch Reloj de centrifugado/ centrifugado/ Spin Motor Spin Timer Marron/Bro Rojo/R Marron/Bro Azul/Bl Fusible/Fus Motor de Amarill lavado/ Marron/Bro Wash Motor...
