- Page 1 LMD7023PBBP0 LMD9023PBBP0 LMD1123PBBP0 PM01...
-
Page 3: Table Of Contents
We invite you to get to know your product, read this manual and get the most out of list of packaged parts Part Quantity Owner's manual One piece Drain hose One piece Lint filter (only on models One piece LMD7023PBBP0 and LMD9023PBBP0). Spinning tub plate One piece Twin tub washer One piece... -
Page 4: Important Safety Instructions
important safety instructions • Your own safety is important for us. Please read this information before using your new product. • Do not use extension cords. • Do not plug other electric appliances to the same power outlet. • Hold the connector by the power plug, not by the cord. •... - Page 5 Please insert the power cord into special receptacle with rated volt- age. Be sure to use single-phase three pins receptacle. If possible, install an electric leakage protector. Make sure the electrical outlet is located at an easy and accessible place so the power plug can be easily connected and disconnected. Be sure to pull the plug off when there's a power failure, or before moving or cleaning the machine, and when it's idle.
- Page 6 If the washing machine is installed on a carpet, do not block the ventilation hole with the carpet. Do not let the machine share the power outlet with other electric appliances. If the power outlet is damaged do not use it anymore until it is checked by a qualified electrician.
- Page 7 Do not put any hot or heavy items on the washing machine such as a kettle with hot wa- ter. Do not wash items that have been stained with volatile substances such as thinner, petrol, etc. Keep the machine away from direct sun- light and heat sources like heaters.
-

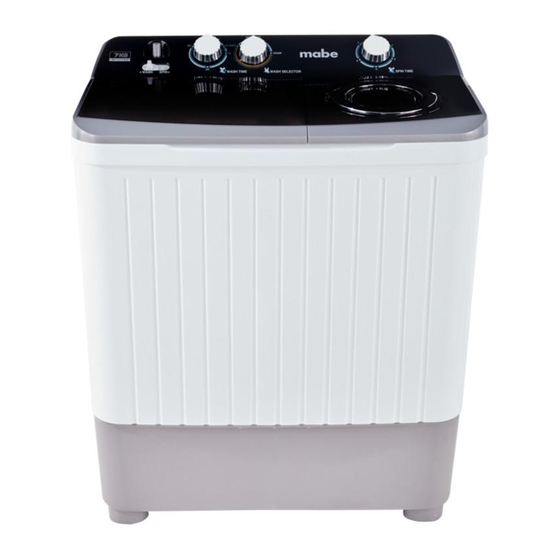

Page 8: Parts Of Your New Twin Tub Washer
parts of your new washing machine 1. Wash Type Selector. 10. Outer Cover of the Spinning Tub. 2. Wash Timer Selector. 11. Inner Cover of the Spinning 3. Water Inlet Port. Tub. 4. Water Inlet Selector. 12. Main Frame. 5. Control Panel. 13. -
Page 9: Installation Instructions
Install and adjust the washing machine according to the instructions contained in this manual. It is very important for your own safety and the correct operation of the machine. install the lint filter (on models LMD7023PBBP0 and LMD9023PBBP0) After unpacking your washing machine, take out the lint filter from the documentation bag. - Page 10 Once the washing or rinsing process is completed, and you need to flush the water, it is necessary to place the drain hose on the floor at a height not greater than 10 cm, and turn the control panel knob to the function “Drained”. drain hose The drainage of the machine should be smooth and fluid.
- Page 11 how to change the direction of the drain hose Figure 1 shows the factory installation position of the drain hose. Figure 1 Drain Hose Fixing Hook Extend the drain hose from the spin tub side 1. Remove the drain hose from the hanging hole on the cabinet. Pull the drain hose fixing hook outwards gently to take out the drain hose from the two fixing hooks.
- Page 12 4. Pull the fixing hook outwards slightly. Inlay the drain hose into the fixing hooks reliably along the groove at spin tub side, and make it extend towards spin tub side. 5. Then hang the drain hose into the hanging hole at the spin tub side.
-
Page 13: Preparation Before Washing
To remove the water supply hose, just push the control handle as in- dicated in the figure and pull it out. Models LMD7023PBBP0 and Model LMD1123PBBP0 LMD9023PBBP0 Select water level according to the size of the load to be washed. -
Page 14: Washing Tips
before washing a load pay attention to the following • Check clothes care labels looking for special washing instructions. • Clear pockets. Take out coins, sand, hairpins etc. • Tie the long strips, fasten buttons and close zippers. • The size of the load to be washed should not be too large. -
Page 15: Proper Use Of Laundry Products
proper use of laundry products Using bleach • Fill water to proper level. Dilute bleach in a suitable container. Pour it slowly into the washing tub. • Avoid using bleach on items with color or pattern as they are prone to lose color. •... -
Page 16: Washing Sequence
washing sequence 1. Fill selection. Set the water inlet selector to WASH. (Figure 1). Adjust water level rod to a position as needed. wash spin 2. Let water into the tub and add dissolved powder detergent until water reaches a suitable level. - Page 17 spin 1. Evenly load the items into de spin tub. 2. Spin the load. Properly place the spinning tub plate on the load, even when the load is small. Press down the spinning tub plate Press down Load is Correct Without Correct not level...
- Page 18 rinsing 1. Load items to rinse into the washing tub. Select suitable WASH TYPE according to the items to wash. 2. Set a proper water level using the adjusting lever according to the size of the load. Let the water into the tub continuously. 3.
-
Page 19: After Washing A Load
WARNING: UNPLUG THE WASHING MACHINE FROM THE POWER SUPPLY BEFORE PERFORM- ING ANY CLEANING JOB. cleaning the lint filter on models LMD7023PBBP0 and LMD9023PBBP0 THE LINT FILTER MUST BE USED DURING WASHING AND MUST BE CLEANED AFTER EACH USE. - Page 20 Figure 2 3. Reassemble and replace the lint filter. cleaning the overflow filter on models LMD7023PBBP0 and LMD9023PBBP0 • Too much lint on the overflow filter will affect the normal opera- tion of the machine. Clean it every two months.
- Page 21 1. Remove the overflow filter as shown in Figure 1. Figure 1 2. Clean the filter. Remove the lint around the filter and flush it with tap water. 3. Replace the overflow filter. a) Replace the corrugated hose. b) Insert the mounting plate at the bottom Hook of the filter into the valve cover.
- Page 22 3. Clean the filter. Remove the lint around the filter and flush it with tap water. 4. Replace the overflow filter. a) Replace the corrugated hose. b) Insert the mounting plate at the bottom of the filter into the valve cover. c) Hang up the hook at the upper side.
-
Page 23: Cleaning The Unit
cleaning the unit • Completely wipe the unit using a damp soft cloth. • If the washing machine is very dirty, wipe it with a neutral deter- gent. • Do not wash the machine by spraying water directly on it. •... -
Page 24: Troubleshooting Tips
troubleshooting tips If the washing machine fails, pull off the power plug before check- ing. The following symptoms does not always represent a problem. Please confirm failure again before contacting the authorized ser- vice center. If the problem persists, contact the authorized service center. -
Page 25: Rated Electrical Specifications
Model LMD7023PBBP0 LMD9023PBBP0 Supply voltage 220 - 240 V ~ 220 - 240 V ~ Frequency 60 Hz 60 Hz Washing power consumption 380 W 390 W Spinning power consumption 150 W 150 W Capacity 7 kg... - Page 26 notes...
