ASSEMBLY INSTRUCTIONS FOR THE WS-59

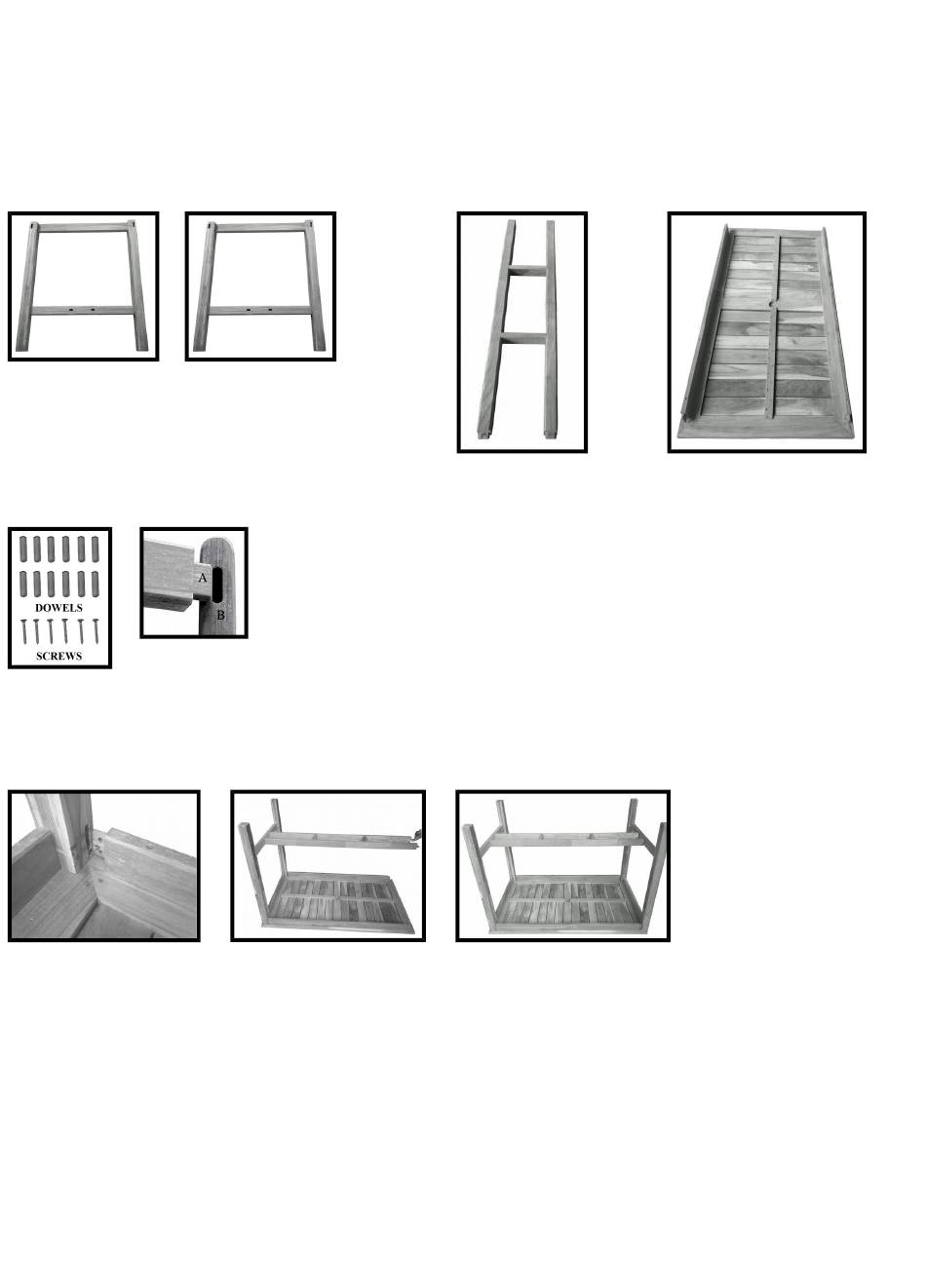

LEG ASSEMBLY

NOTE: During assembly of the furniture please match all joints with the corresponding letters
or numbers stamped on the furniture. This is a two person project.
mortise holes onto the TABLE TOP tenons as shown in the photographs. If necessary, gently
rock the LEG ASSEMBLY while pushing tenons into the mortise holes until joints fit snugly
(use of a rubber mallet may be needed). Again, matching the numbers stamped on the tenons
with the mortise holes, fit the BOTTOM STRETCHER as shown in the photograph (please
note there is a top and bottom side to the BOTTOM STRETCHER). While holding
BOTTOM STRETCHER in place, fit the second LEG ASSEMBLY, as shown in
photographs. If you need to use a rubber mallet to drive the joints together you should have
one person on either side of the table; one to keep the parts from sliding on your smooth
surface or shifting left to right, the other to drive the joints.
KINGSLEY~BATE
Fine Garden Furniture
BOTTOM STRETCHER
NOTE:
A TENON
B MORTISE HOLE

STEP-I

Unpack, inspect and lay the parts on a clean, flat, soft surface to
avoid marring the wood.
TABLE TOP

STEP-II

With the table top
upside down on a
clean, smooth
surface, fit one LEG
ASSEMBLY
