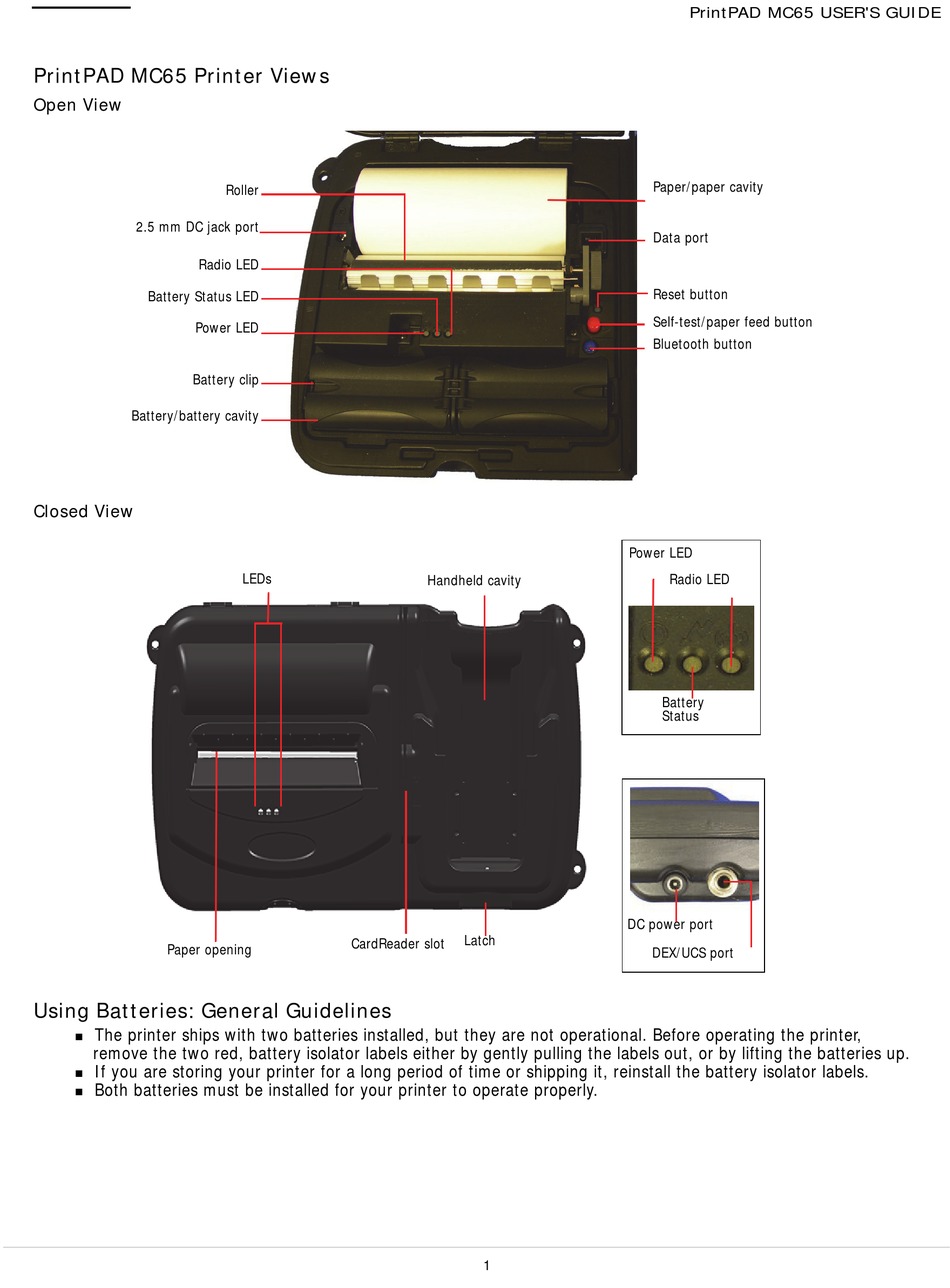

PrintPAD MC65 Printer Views

Open View
2.5 mm DC jack port
Radio LED
Battery Status LED
Power LED
Battery clip
Battery/battery cavity
Closed View
Paper opening
Using Batteries: General Guidelines
The printer ships with two batteries installed, but they are not operational. Before operating the printer,

remove the two red, battery isolator labels either by gently pulling the labels out, or by lifting the batteries up.
If you are storing your printer for a long period of time or shipping it, reinstall the battery isolator labels.

Both batteries must be installed for your printer to operate properly.

Roller
LEDs
CardReader slot
Handheld cavity
Latch
1
PrintPAD MC65 USER'S GUIDE
Paper/paper cavity
Data port
Reset button
Self-test/paper feed button
Bluetooth button
Power LED
Radio LED
Battery
Status
DC power port
DEX/UCS port
