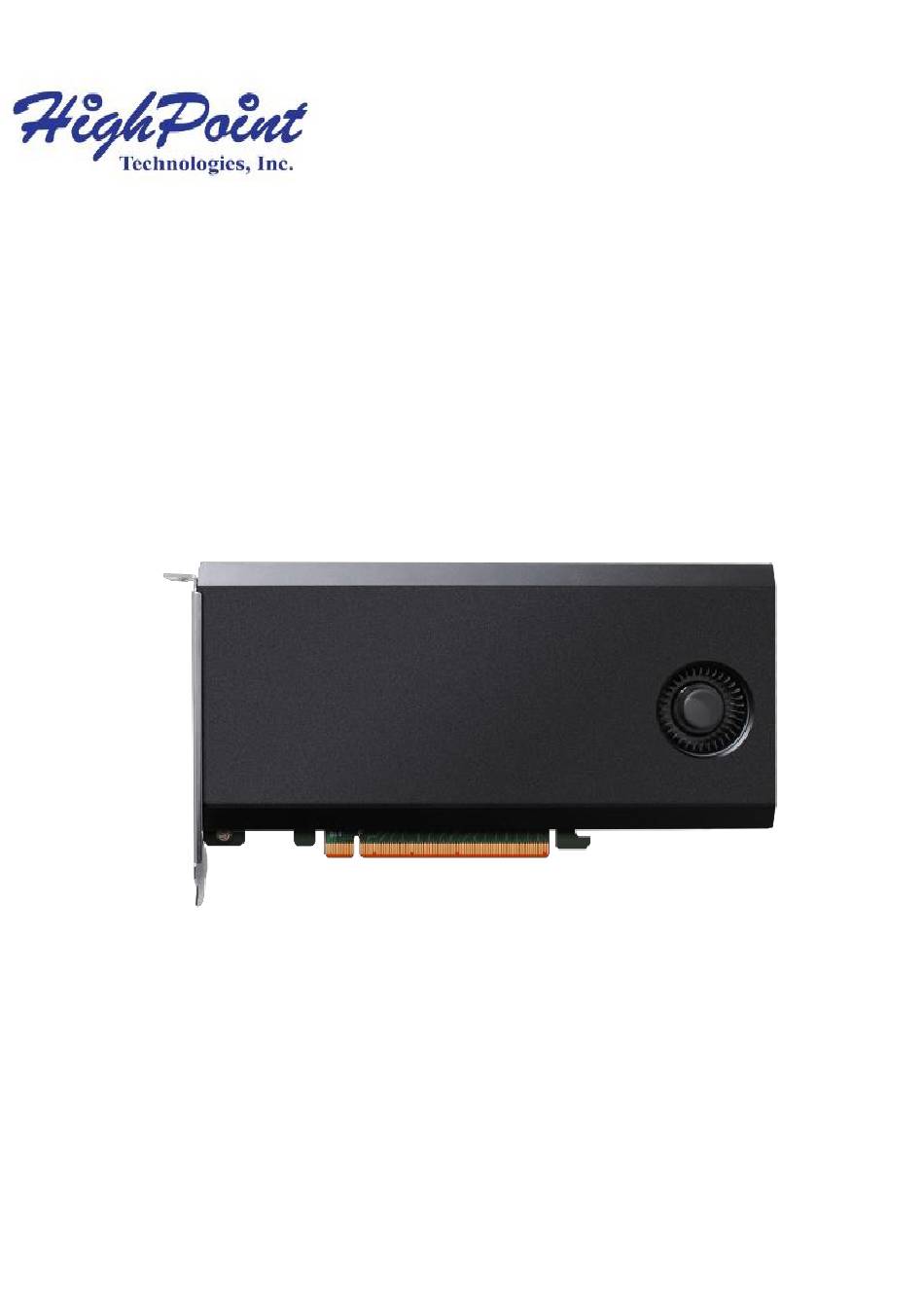

- Page 1 R1101 4x M.2 Port to PCIe 3.0x16 NVMe RAID Controller Quick Installation Guide V1.00...
- Page 2 System Requirements PC Requirements • System with a free PCIe 3.0 (or 4.0) x16 slot • Windows 10 or later, Windows Server 2019 • Linux Kernel 3.10 or later • MacOS 10.13 or later • FreeBSD 12.1 and later R1101 Kit Content •...

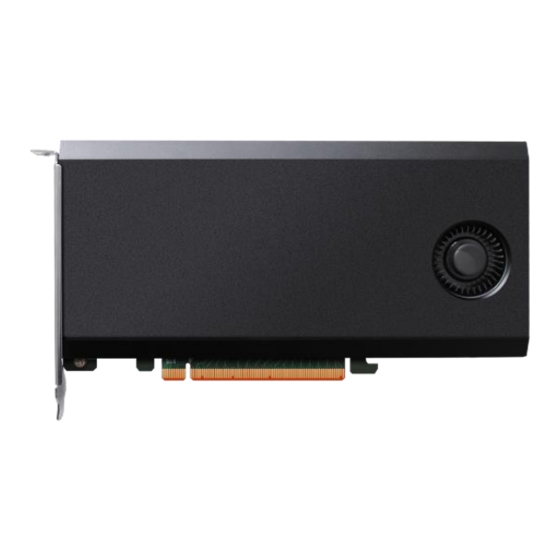

- Page 3 R1101 Hardware Front View Aluminum casing with integrated thermal pad Intake for cooling fan Low-Noise cooling fan PCIe 3.0 x16 Host Interface...
- Page 4 R1101 Hardware Installation: Step 1. On the rear of the R1101, remove the six screws that secure the aluminum casing to the PCB. After removing the screws, carefully remove the casing from the R1101. Step 2. After removing the casing, carefully turn it over to view the thermal pad.
- Page 5 Step 3. These 4 screws are used to install the NVMe SSD’s. Step 4. The SSDs should be installed from top to bottom. Remove the top screw.
- Page 6 Step 5. Gently insert the SSD into the slot. Refasten the screw to secure the SSD. Repeat Steps 3 to 5 to install the remaining SSDs. Note: Make sure the SSD’s are carefully, but securely installed into each M.2 port. Loose connections can cause a variety of stability and performance issues, and may ultimately result in data loss.
- Page 7 Step 7. After installing the SSDs, reattach the aluminum casing to the R1101. Step 8. On the rear of the R1101, refasten the 6 screws that were removed in step 1. Note: Make sure the aluminum cover is properly aligned with the controller board (PCB), and that it makes full contact with the thermal pad, before refastening it to the R1101.
-
Page 8: Customer Support
Customer Support If you encounter any problems while utilizing the R1100 Series , or have any questions about this or any other HighPoint Technologies, Inc. product, feel free to contact our Customer Support Department. Web Support: https://www.highpoint-tech.com/websupport/ HighPoint Technologies, Inc. websites: https://www.highpoint-tech.com...
