Thank you for purchasing this Price Pfister product. All Price Pfister products are carefully engineered, and factory tested to
provide long trouble-free use under normal conditions. This product is easy to install using basic tools and our easy to follow
illustrated instructions. If you have any questions regarding this product, call 1-800-340-7608.

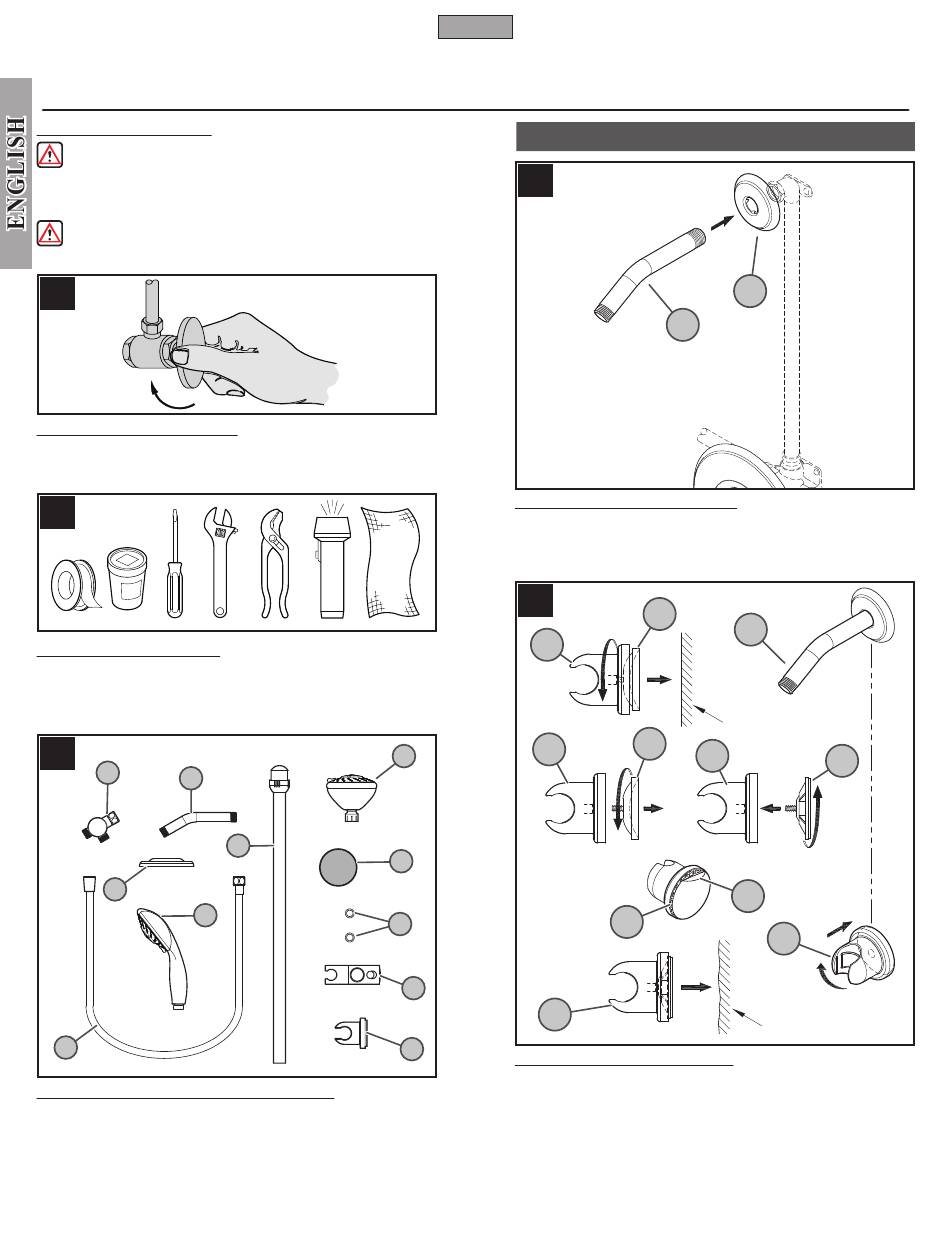

1 BEFORE PROCEEDING
WARNING: Read all the instructions completely before proceeding. Price Pfister
recommends calling a professional if you are uncertain about installing this product!
This product should be installed in accordance with all local and state plumbing and
building codes.
WARNING
: To reduce risk of injury, Slide Bar must not be used as grab
bar or for support!
2
2 SHUT OFF WATER SUPPLY
Locate water supply inlets and shut off the water supply valves. These are usually found
under the sink or near the water meter. If you are replacing an existing faucet, remove
the old faucet from the sink and clean the sink surface thoroughly.
3
3 TOOLS RECOMMENDED
• PTFE Plumber's Tape
• Plumber's Putty
• Adjustable wrench
• Flashlight
Your installation may require new supply lines and / or shut-off valves or other additional
tools.
4
F
C
L
A
E
4 CHECKING THE CONTENTS OF THE BOX
Upon opening the box, check to ensure that all of the following items are included.
A Hand Shower
B Shower Head
D Slide Bar
E Hose
G Wall Mount
H Hand Shower Holder J Rubber Seal Rings (2X)
K Flat Support Plate L Shower Flange
If any of these items are missing, please contact Price Pfister Consumer Service at
1-800-340-7608.
• Screwdriver
• Cloth
B
D
K
J
H
G
C Shower Arm
F Shower Diverter
ENGLISH

FAUCET INSTALLATION

5
5 SHOWER ARM INSTALLATION
Apply PTFE plumber's tape to the ends of Shower Arm (5A) according to manufacturer's
instructions. Insert the long end of Shower Arm (5A) through the Shower Flange (5B).
Screw the long end of Shower Arm (5A) into pipe elbow inside the wall. Slide Shower
Flange (5B) tight to the wall.
6
6D
6D
6G
6B
6 WALL MOUNT INSTALLATION
SMOOTH SURFACE: Loosen Suction Cup (6A) by turning it counterclockwise.
Vertically align Wall Mount (6B) below Shower Arm (6C) and place in a smooth location.
Attach Wall Mount (6B) by pressing it against wall surface allowing Suction Cup (6A)
to compress. Tighten Wall Mount (6B) by turning Support Cup (6D) clockwise until it
is properly positioned and is fixed firmly to the wall.
UNEVEN SURFACE: Incase Wall Mount (6B) falls next to a tile grout line, or the wall
surface is not smooth, remove Suction Cup (6A) from Support Cup (6D). Connect Flat
Support Plate (6E) into Support Cup (6D). Remove Protective Seal (6F) from Adhesive
Backing (6G) and attach Wall Mount (6B) to wall surface. Allow drying for 12 hours.
2
5B
5A
6A
6C
SMOOTH SURFACE
6A
6D
6F
6B
UNEVEN SURFACE
6E
