Thank you for purchasing this Price Pfister product. All Price Pfister products are carefully engineered, and factory tested to
provide long trouble-free use under normal conditions. This product is easy to install using basic tools and our easy to follow
illustrated instructions. If you have any questions regarding this product, call 1-800-Pfaucet (1-800-732-8238).

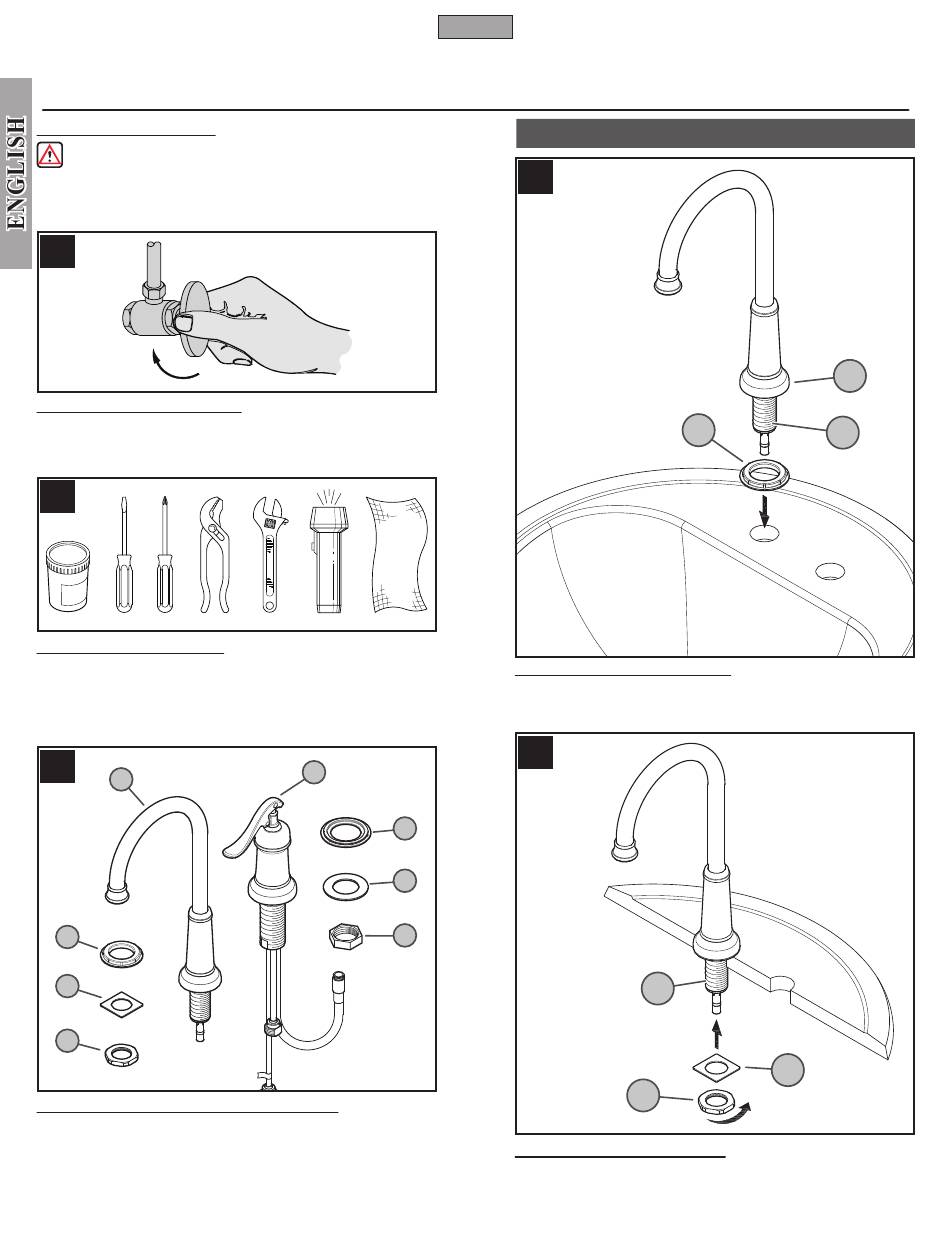

1 BEFORE PROCEEDING
WARNING: Read all the instructions completely before proceeding. Price Pfister
recommends calling a professional if you are uncertain about installing this product!
This product should be installed in accordance with all local and state plumbing and
building codes.
2
2 SHUT OFF WATER SUPPLY
Locate water supply inlets and shut off the water supply valves. These are usually found
under the sink or near the water meter. If you are replacing an existing faucet, remove
the old faucet from the sink and clean the sink surface thoroughly.
3
3 TOOLS RECOMMENDED
• Plumber's putty
• Slotted screwdriver
• Pliers
• Adjustable wrench
• Cloth
Your installation may require new supply lines and / or shut-off valves or other additional
tools.
4
A
C
E
D
4 CHECKING THE CONTENTS OF THE BOX
Upon opening the box, check to ensure that all of the following items are included.
A Spout Body
B Control Body
D Spout Mounting Nut
E Square Washer
G Control Body Mounting Nut
If any of these items are missing, please contact Price Pfister Consumer Service at
1-800-Pfaucet (1-800-732-8238).
ENGLISH
• Phillips head screwdriver
• Flashlight
B
H
F
G
C Spout Seal Ring
F Round Washer
H Control Body Seal Ring
2
FAUCET INSTALLATION
5
5A
5 SPOUT BODY INSTALLATION
Place a bead of plumber's putty in the groove along the bottom outer edge of Seal Ring
(5A). Place Seal Ring (5A) under base of Spout Body (5B). From above sink, insert
Mounting Shank (5C) through side hole of sink.
6
6C
6B
6 SECURING SPOUT BODY
From underneath sink, place Square Washer (6A), and Mounting Nut (6B) onto Mounting
Shank (6C). Tighten faucet firmly to sink.
Caution: Do not over tighten!
5B
5C
6A
