Calsense ET2000 Programming Manual

Hide thumbs Also See for ET2000:
Table of Contents

Advertisement

Quick Links

Download this manual

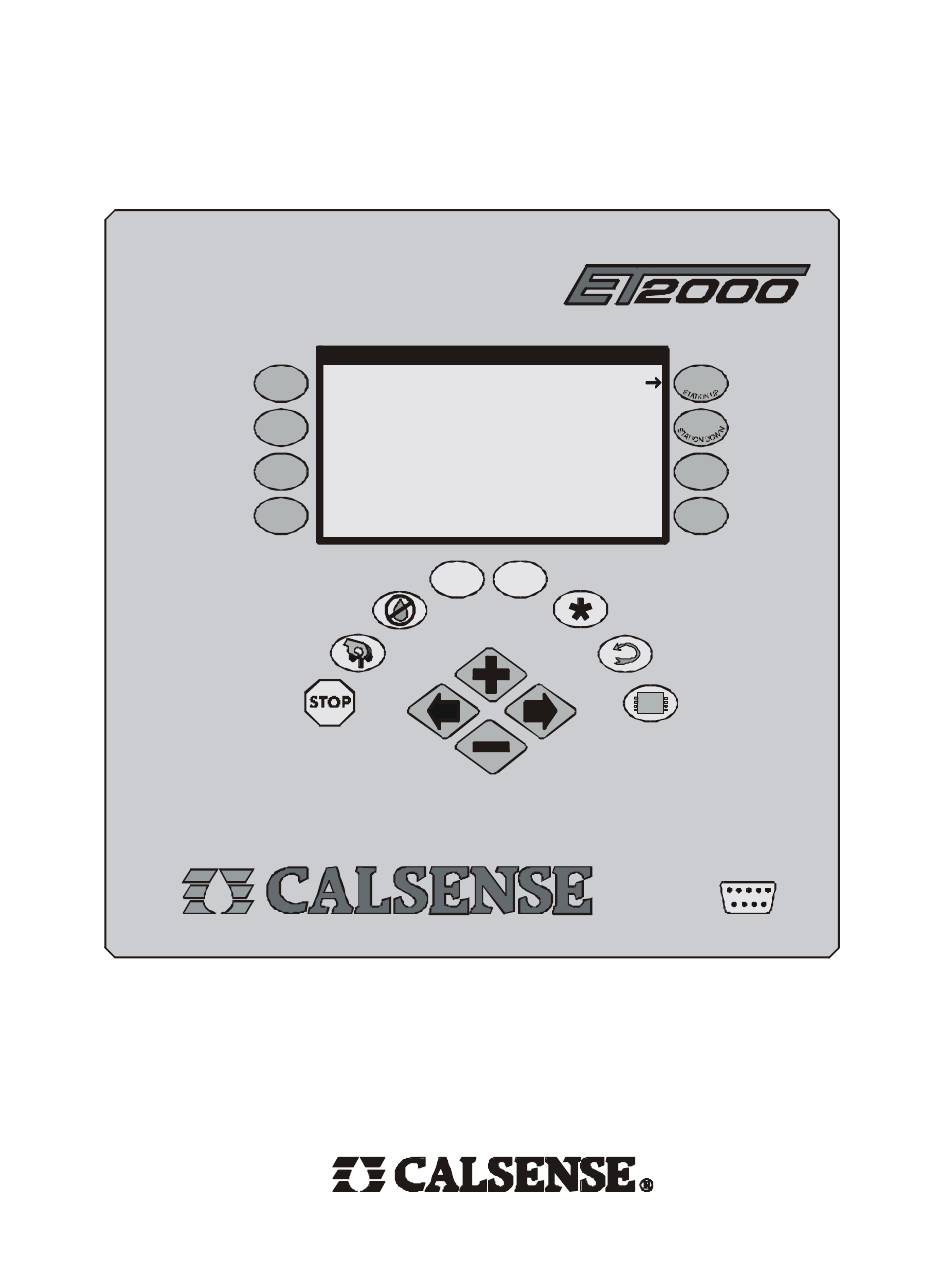

ET2000 PROGRAMMING GUIDE
CONTROLLER STATUS
(adjust stations)
No Stations are Watering
NEXT SCHEDULED IRRIGATION IS AT :
12:00 AM on Saturday Aug 17, 2002
Aug 16 2002
Sat 10:45:03 AM
?
ENGLISH
ESPANOL
BACK
MAIN
MENU
2075 Corte del Nogal, Suite P, Carlsbad CA 92011
1-800-572-8608 FAX:760-438-2619
www.calsense.com
Stock No. 4039
Rev 09/02

Advertisement

Table of Contents
loading

Related Manuals for Calsense ET2000

Summary of Contents for Calsense ET2000

  • Page 1 ET2000 PROGRAMMING GUIDE CONTROLLER STATUS (adjust stations) No Stations are Watering NEXT SCHEDULED IRRIGATION IS AT : 12:00 AM on Saturday Aug 17, 2002 Aug 16 2002 Sat 10:45:03 AM ENGLISH ESPANOL BACK MAIN MENU 2075 Corte del Nogal, Suite P, Carlsbad CA 92011 1-800-572-8608 FAX:760-438-2619 www.calsense.com...

  • Page 2: Table Of Contents

    1. ET2000 Key Pad Description ........................4 2. ET2000 Controller Screen Map ........................5 3. What Can Be Programmed At Each Screen ....................6 4. Using This Guide With The ET2000 Controller ....................7 5. Start Times & Water Days..........................8 Finish Times ............................8 6.
  • Page 3 Table of Contents 15. Reports ..............................20 This Month / Last Month ......................... 20 24 Month History ........................... 20 Irrigation Details ............................. 21 Station Order ............................21 Diagnostics ............................21 Log Lines .............................. 22 ET & Rain Tables ........................... 22 16.

  • Page 4: Et2000 Key Pad Description

    1. ET2000 Key Pad Description ENGLISH ESPANOL BACK MAIN MENU HOT KEYS MENU KEYS HOT keys are action keys. They are used to perform com- MENU keys select the different features or commands in mon controller functions now. The following is a list of HOT the different screens and are adjacent to the left and right keys and a description of each key function.

  • Page 5: Et2000 Controller Screen Map

    2. ET2000 Controller Screen Map The Screen Map below shows the series of keys to be pressed to access the various screens in the ET2000 Controller. The chart on the following page explains what can be programmed at each of the screens.

  • Page 6: What Can Be Programmed At Each Screen

    3. What Can Be Programmed At Each Screen SCREEN SETTINGS SCREEN SETTINGS Select pump output type Programs Pump Output Set use of 12 month schedule Select use of pump (by program) & Stations Set program start time Select to use limit mode or learned mode Select program description (optional) Set all learned flow rates (if in learned mode)

  • Page 7: Using This Guide With The Et2000 Controller

    Main Menu, which can be accessed at any time by pressing the MAIN MENU Key. The descriptions on the screen with the arrows, are pointing to the Menu Keys which are to be pressed to access the various parts of the controller’s program (see ET2000 Screen Map on page 5 ).

  • Page 8: Start Times & Water Days

    A program description can be selected which describes the type of plant material and irrigation heads as- signed to that program (this setting is optional). Days in Schedule: The ET2000 can be set with a 7-Day Schedule (shown in the example above), 14-Day Schedule, 21-Day Schedule or 28-Day Schedule.

  • Page 9: Station Programming

    6. Station Programming Station Settings From the Main Menu Press the PROGRAMS & STATIONS Menu Key, then Press the STATIONS Menu Key, the Station Programming screen will appear (shown below). Station Up Key STATION PROGRAMMING Station ....PROG A Total Mins : 15.0...

  • Page 10: Station-To-Station Copy

    7. Station-to-Station Copy From the Main Menu Press the PROGRAMS & STATIONS Menu Key, then the STATION-TO-STATION COPY Menu Key. The Station To Station Copy Screen will appear (shown below). From the Station To Station Copy screen you can copy the programming from one station to another station, copy the programming from one station to all stations on any program, or copy the programming from one station to all stations on the controller.

  • Page 11: Flow Meter Setup

    Is this a MASTER CONTROLLER ? 1. The first setting is the type of flow meter installed on the system. If the flow meter is a standard Calsense Flow Meter, leave the setting at CHOOSE FROM LIST (the default setting). If the flow meter is a Calsense FMBX, change the setting to ENTER OWN PARAMETERS (described later on this page).

  • Page 12: Flow Meter Settings

    Flow Meter Settings After the flow meter has been enabled at the Flow Meter screen as described on the previous page, Press the BACK Key to return to the Flow Meter, Master Valve & Pump Setup screen (shown below), it will appear with four new Menu Key choices. These are the flow meter settings, and are available only after a flow meter has been enabled (note that the Estimated Water Use setting is no longer available as described on page 10).
  • Page 13 Flow Meter Settings (con’t) From the Flow Meter, Master Valve & Pump Setup screen, Press the DELAY TIME Menu Key to access the Delay Time & Trip Percent screen (shown below). DELAY TIME & TRIP PERCENT Delay Time is in seconds Delay Trip Time...

  • Page 14: Master Valve

    Master Valve From the Flow Meter, Master Valve & Pump Setup screen, Press the MASTER VALVE Menu Key, the Type of Master Valve screen will appear (shown below). TYPE OF MASTER VALVE The MASTER VALVE is NORMALLY CLOSED The Master Valve default setting is for a normally closed master valve. There are 2 settings, NORMALLY CLOSED, if a normally closed master valve is installed and NORMALLY OPEN, if a normally open master valve is installed.

  • Page 15: Manual Key

    9. Manual Key Press the MANUAL Key to access the Manual Irrigation screen (shown below). From this screen you can choose to manually irrigate stations , test stations, override the master valve and set a manual special sequence. MANUAL IRRIGATION Manual Water Test Master Valve...

  • Page 16: Master Valve

    Test (con’t) To run a test cycle of all the stations on a program or all the stations on the controller, Press an ARROW Key to move the cursor to the Test xxxx Stations setting. Press the PLUS or MINUS Key to select the desired Program or ALL stations (PROG B has been selected in the example on the previous page), Press the TEST xxxx STATIONS Menu Key to start the test cycle.

  • Page 17: Scheduled Manual Special Sequence

    Scheduled Manual Special Sequence To set a scheduled manual special sequence, Press an ARROW Key to move the cursor to the first Start Times setting, Press the PLUS or MINUS Key to set a start time (2:00AM has been set in the example below), a second start time can be set if desired.

  • Page 18: Set No Water Days For Individual Stations

    11. Help Key Press the HELP Key to access one of the many ET2000 help screens. The help screen that appears will depend upon which screen you are viewing when you Press the HELP Key. For example, if you are viewing the Date & Time screen, and you Press the Help Key, you will access an explanation of how to set the date and time.

  • Page 19: Stations In Use

    From the Main Menu Press the SETUP Menu Key, the General Setup screen will appear, Press the PASSWORD Menu Key, the Log In screen will appear (shown below). Using the Calsense Command Center program, a three character password can be sent to the controller, once a password has been sent, the controller cannot be programmed until the proper password has been entered at the Log In screen.

  • Page 20: Reports

    Station Order From the Reports screen you can access any of the stored information contained in the ET2000 Controller by Pressing any of the available Menu Keys (shown above). The following describes the information you can view at each of the report screens.

  • Page 21: Irrigation Details

    (shown in order they turned on) The ET2000 does not necessarily irrigate in sequence, and sometimes it might be necessary to know the order in which the stations on the controller irrigated. You can view the order in which each station irrigated at the Station Order screen. Starting in the lower right corner of the screen and working back you will see the order from last station to irrigate to the first station to irrigate.

  • Page 22: Log Lines

    Log Lines Log data (shown below) is a record of each station’s irrigation history (one log line is one 24 hour period). The ET2000 Controller can store 30 log lines per station. The information that can be viewed at the Log Lines screen is the date & start time of an irrigation event, the station’s program assignment, number of cycles (cycle &...

  • Page 23: Controller Status

    Setup screen you can access the setup of any optional Calsense equipment (if the option is installed on the controller) which includes the Calsense ET Gage, Rain Bucket, and Wind Gage, also a rain switch if one is installed. You can also access the setup of daily-ET, water budgets and moisture sensors.

  • Page 24: Wind Gage Setup

    NOTE : If this setting is set to YES, and there is no rain switch wired to the controller, or the rain switch is incorrectly wired to the controller, no irrigation will occur. If you are unsure about how to correctly wire the rain switch, call Calsense at (800) 572-...

  • Page 25: Moisture Sensor Setup

    Moisture Sensor Setup MOISTURE SENSING SETUP Moisture Sensing in Use ? USE BY PROGRAM : PROG A PROG B PROG C PROG D PROG E DRIP DRIP Sensor Assignment From the Weather Setup screen, Press the MOISTURE Menu Key, the Moisture Sensing Setup screen will appear. To enable moisture sensing, Press the PLUS or MINUS Key to change the default setting from NO to YES, the Moisture Sensing Setup screen will then appear as shown above.

  • Page 26: Lights

    Key to activate the controller for radio remote control. You can also set Normal Command Codes, Addressed Command Codes and the receiver frequency at this screen (see the instructions that are shipped with the Calsense Radio Remote for more information).
