kingsley-bate DN-25 Assembly Instructions

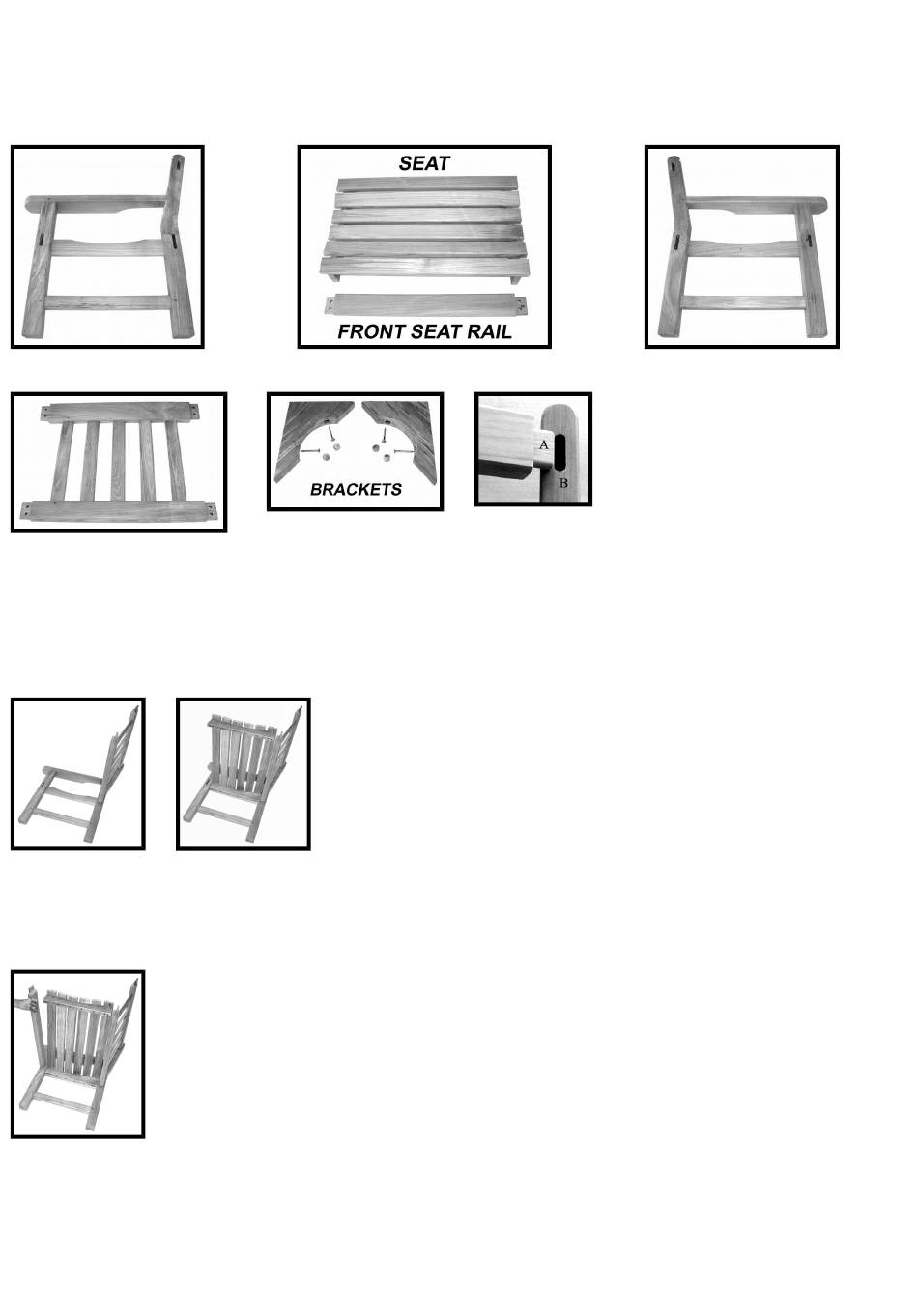

ASSEMBLY INSTRUCTIONS FOR THE DN/HP/SG–25
RIGHT END FRAME
BACK
STEP-I
Unpack, inspect and lay the parts on a clean, flat, soft surface to avoid marring the wood.
NOTE: During assembly of the furniture please match all joints with the corresponding
letters or numbers stamped on the furniture.
together. Place SEAT against END FRAME as shown in the assembly photograph. The
SEAT will have a stamped letter or number on the seat brace underneath the slats. Use it to
make sure the SEAT is not put in backwards.
STEP-III
Place the FRONT STRETCHER tenon into the END FRAME mortise hole.
Make sure rounded edge of the FRONT STRETCHER is facing up. If
necessary, gently rock the FRONT STRETCHER while pushing down until
all joints fit snugly together.
KINGSLEY–BATE
Fine Garden Furniture
STEP-II
Find the END FRAME with the numbers or letters
stamped near the mortise holes and lay it down first. Fit
the BACK tenons into the END FRAME mortise holes. If
necessary, gently rock the BACK while pushing the
tenons into the mortise holes until the joints fit snugly
LEFT END FRAME
* NOTE
A TENON
B MORTISE HOLE
