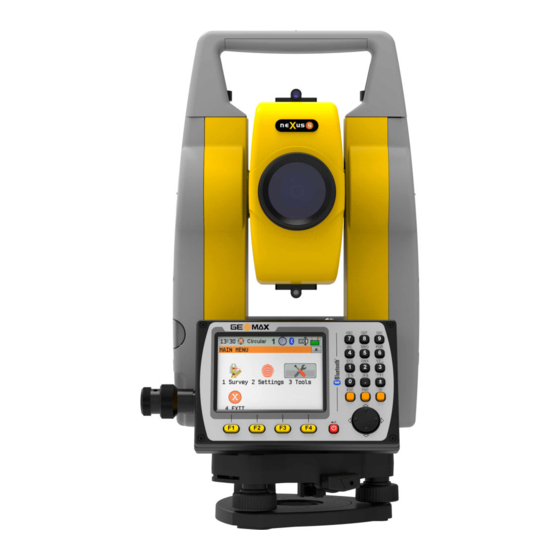

GeoMax TPS
Zoom40 Series
Installation Guide
Version: 1.0
English
- 1 -
Zoom40 TPS Series
Installation Guide

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Zoom40 Series and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for GeoMax Zoom40 Series

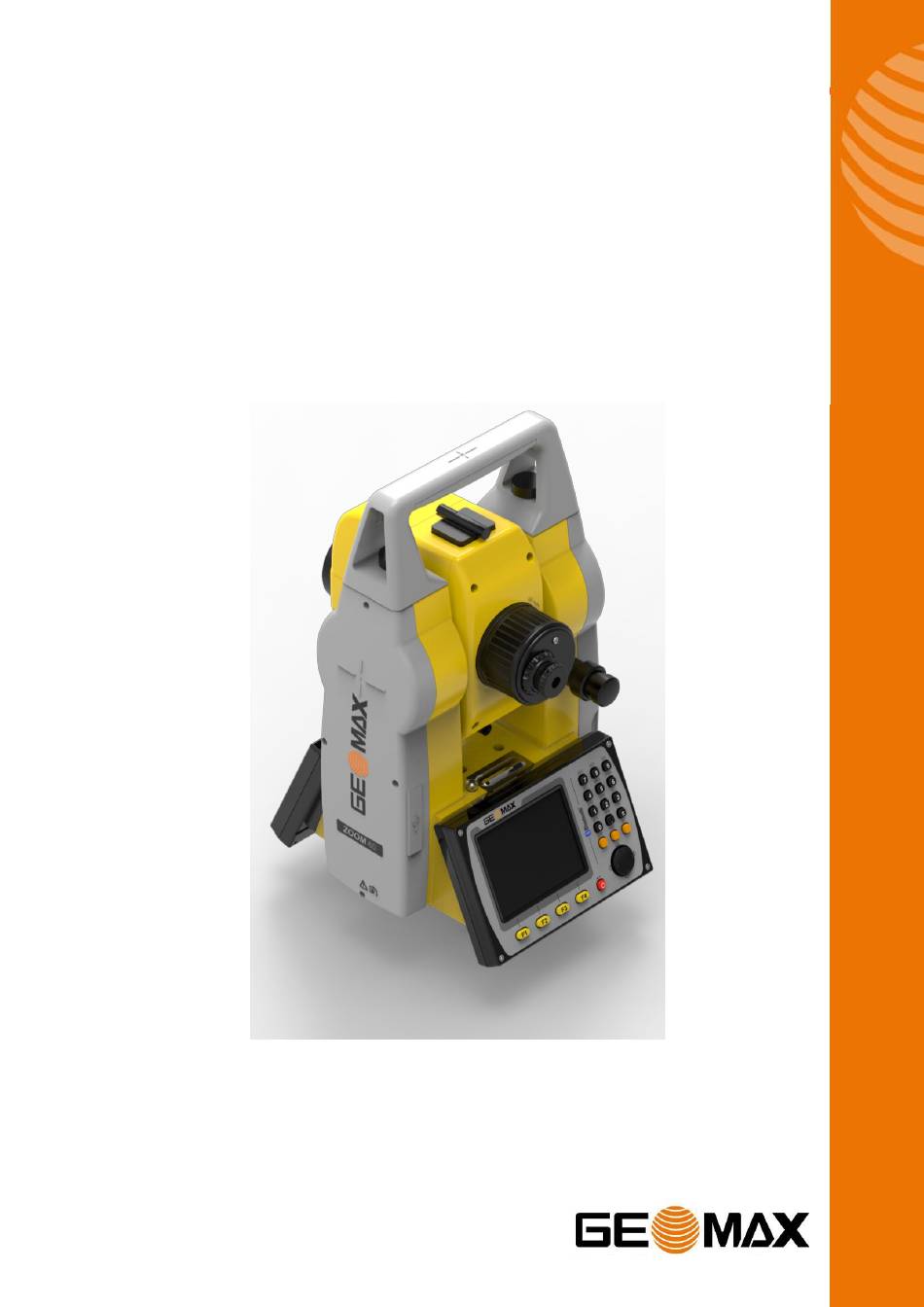

  • Page 1 GeoMax TPS Zoom40 Series Installation Guide Version: 1.0 English - 1 - Zoom40 TPS Series Installation Guide...
  • Page 2 REPARATION OF THE NSTRUMENT Battery Charging Obtaining Firmware Files Uploading Onboard Firmware to the Instrument Windows Mobile Device Center Connecting to the PC PLOADING ONBOARD IELD OFTWARE Installation of X-PAD Installation of GeoMax FieldGenius - 2 - Zoom40 TPS Series Installation Guide...
  • Page 3 Zoom40, please refer to the respective manuals. The Zoom40 Quick Guide is included with the container set. The comprehensive user manual is available from the included USB stick and also from GeoMax Partner Area in the Zoom40 folder at www.geomax-positioning.com.
  • Page 4 To customize the instrument for personal requirements, the firmware file in the required language should be installed. The respective files can be obtained from GeoMax Partner Area in the Zoom40/Firmware folder and are in the format Zoom40_XX.fw where “XX” indicates the specific language. The firmware files also contain all available applications.
  • Page 5 2.3 U PLOADING NBOARD IRMWARE TO THE NSTRUMENT The firmware file is uploaded to the instrument directly from the USB stick. Therefore copy the downloaded file to the System directory on the USB stick using a PC. Insert the stick into the instrument and power on. To load the file onto the instrument, start the Zoom40 application and choose (3)-Tools / (3)-Load FW / (F1)-Firmware.
  • Page 6 EVICE ENTER An upload and installation of the GeoMax FieldGenius on the Zoom40 requires a PC or Laptop. To upload the field software to the Zoom40, it is mandatory to install the Windows Mobile Device Center on the PC or Laptop.
  • Page 7 Turn on the instrument and the connection will be established. After the initial connection, the Windows Mobile Device Centre or ActiveSync will automatically start and connect as soon as the powered instrument is connected to the PC. The contents of the PS336 internal memory can also be seen now with Windows Explorer and are defined as a drive named Zoom40_SerialNumber.
  • Page 8 IELD OFTWARE 3.1 I X-PAD NSTALLATION OF For the software installation please refer to the separate installation guide, available for download from the GeoMax Partner Area: http://www.geomax-positioning.com/downloads.htm?cid=15277 3.2 I NSTALLATION OF IELD ENIUS For the software installation please refer to the separate installation guide, available for download from the GeoMax Partner Area: http://www.geomax-positioning.com/downloads.htm?cid=15625...
