Star Tsp 100 Setting Up

Star Tsp100/143 Ethernet (Android)

Setting up the printer

What's in the box?
In the box find the following items:

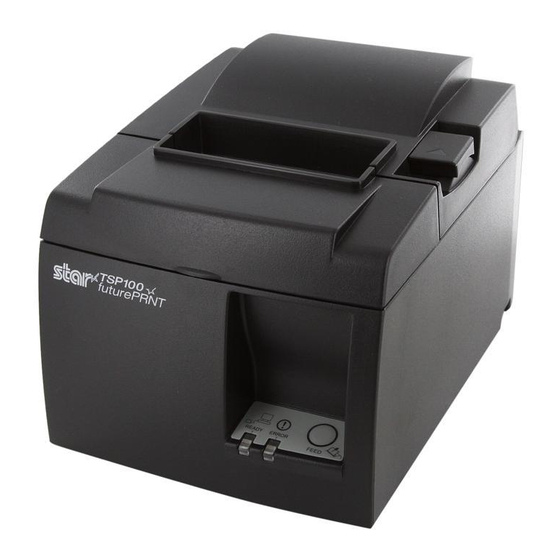

Star TSP Printer
Power Supply
IEC Cable (kettle lead)
Ethernet cable
Paper roll insert guide (to use 58mm rolls)
Holder plate (for use with mounting plate purchased separately)
Roll of 80mm paper, rubber feet (for mounting vertically)

Plugging in the printer

1. Plug the IEC cable (kettle lead) into the power supply and plug into a wall/plug socket
2. Plug the end of the power supply into the back of the Star TSP printer, in the port on the
far right (pictured below)
3. Plug the cash drawer's cable into the black 'DK' port, next to the power port on the back
of the Star TSP printer (the cash drawer will click when fully pushed into place)
4. Plug the ethernet cable into the ethernet port, , this port is on the far left
5. Plug the other end of the ethernet cable into your router
Note: Leave the printer turned Off, you will be prompted during the install steps when to turn it
on
Finding the printer's IP Address
After the Printer has been set up and turned on, there should be a solid blue light on the printer.
If the light is flashing this indicates that the printer does not have a connection to the router. You
will need to check the connections of the ethernet cable at both ends or restart your router.
Your printer makes finding the IP Address nice and easy, follow the steps below to identify what
the printer's IP Address is:
This guide is for Android till systems only.

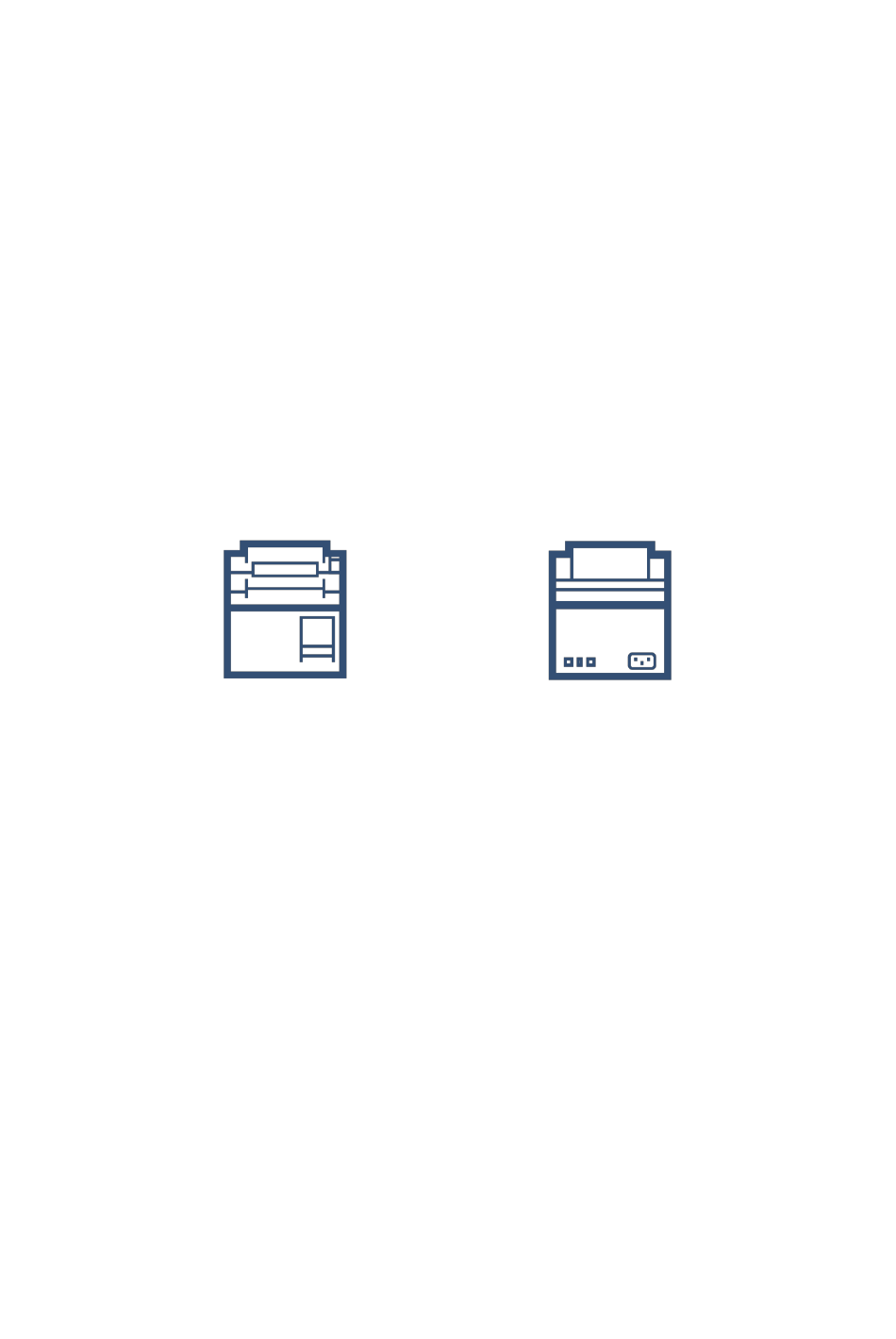

Front Back
