Charging the Battery, LEDs

6.1 Charging the Battery
The charging time depends on several factors,
e.g. temperature of the battery or the ambient
temperature. The actual charging time may differ
from the specified charging time. For specified
charging times see www.stihl.com/charging-
times.
► Recharge the battery fully as described in the
instruction manual for the STIHL AL 101, 300,
500 chargers.

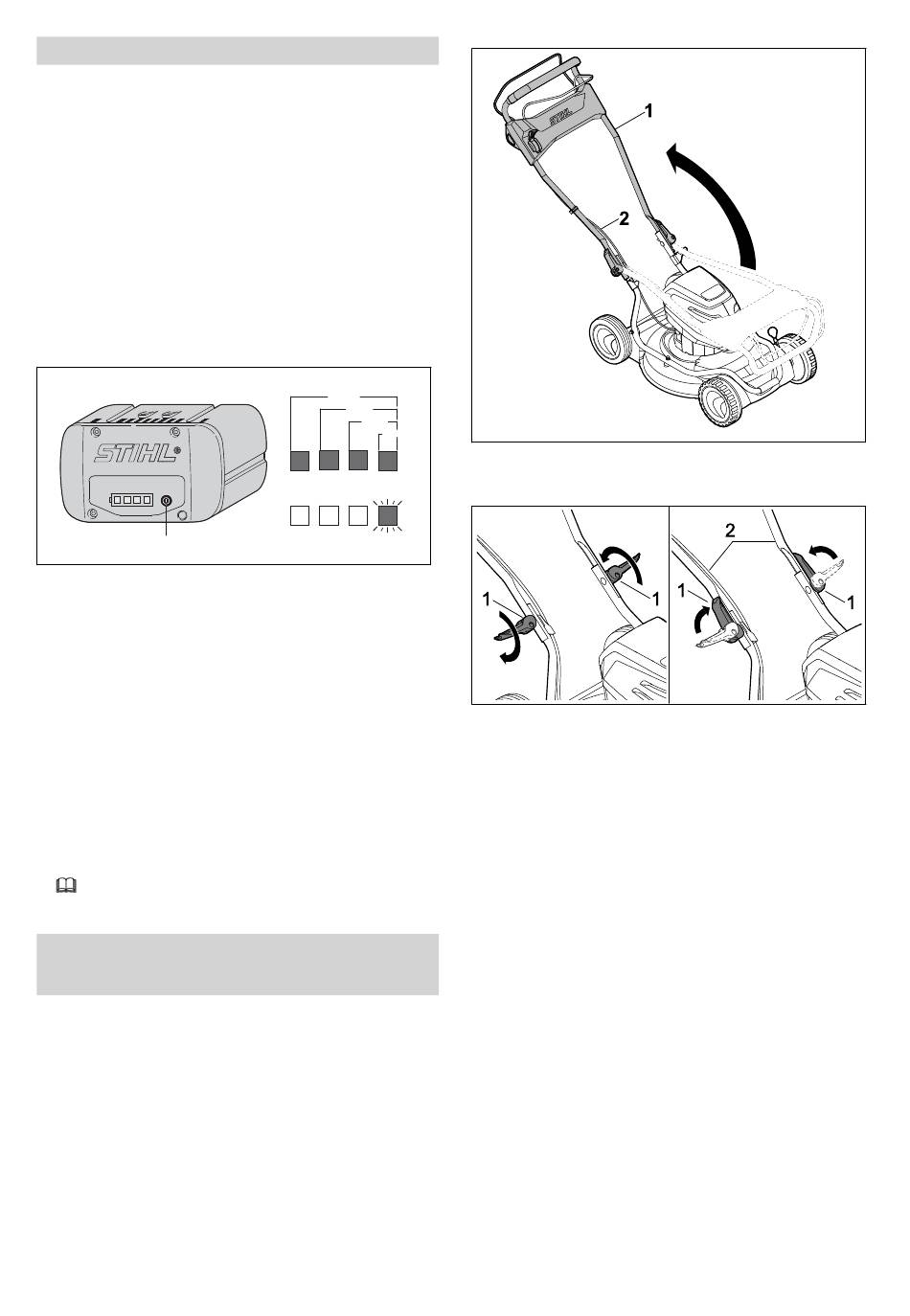

6.2 Displaying the Charge State
1
► Press button (1).
The LEDs illuminate green for approx. 5 sec‐
onds to indicate the charge state.
► If the right LED flashes green: charge the bat‐
tery.
6.3 LEDs on Battery
The LEDs can show the state of charge or mal‐
functions. The LEDs can glow or flash green or
red.
The state of charge is indicated when the LEDs
glow or flash green.
► If the LEDs glow or flash red: Troubleshooting,
19.1.
There is a malfunction in the mower or battery.
7 Assembling the Lawn
Mower
7.1 Folding Up and Folding the
Handlebar
7.1.1 Folding Up the Handlebar
► Switch the lawn mower off, pull out the activa‐
tion key and remove the battery.
► Place the lawn mower on a level surface.
32
80-100%
60-80%
40-60%
20-40%
► Fold up handlebar (1), ensuring that cables (2)
are not trapped.
0-20%
► Screw in quick-clamping devices (1).
► Close quick-clamping devices (1) in the direc‐
tion of handlebar (2).
Handlebar (2) is firmly attached to the lawn
mower and quick-clamping devices (1) lie flat
against handlebar (2).
7.1.2
The handlebar can be folded for space-saving
transport or storage.
► Switch the lawn mower off, pull out the activa‐
tion key and remove the battery.
► Place the lawn mower on a level surface.
6 Charging the Battery, LEDs
Folding the Handlebar
