Potter RA-6500R Quick Start Manual

Features
• Industry leading 4 line by 40 Character LCD
• Common buttons for navigation
• Common LEDs for status indication
• 31 annunciator per panel
• Maximum wire length of 6,500 feet
• Available in 4 colors
• Product includes a 5 year warranty
Description
The RA-6500R is a LCD remote annunciator for the PFC-6000 series
fire control panels. The RA-6500R communicates using a RS-485
connection to the main panel providing common indication of Alarms,
Supervisory, Trouble and other system status and control functions.

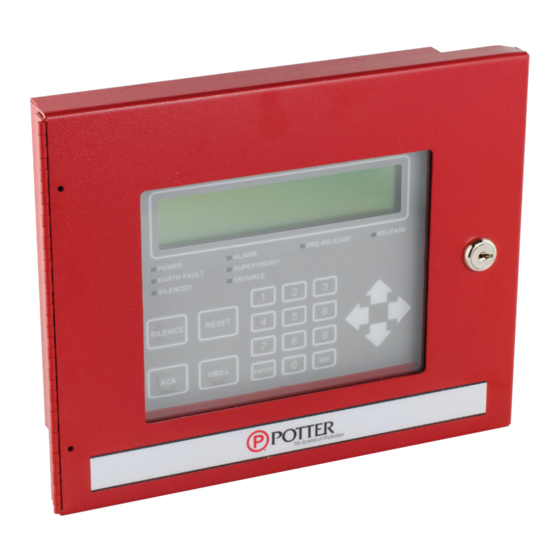

The RA-6500R features a 4x40 LCD display with LED's for Power,
Alarm, Supervisory, Trouble, and Silenced conditions. It can be
mounted on a single gang electrical box or a four square electrical box.
The annunciator is enclosed in a sheet metal enclosure and has a Potter
lock securing the keypad.
Potter Electric Signal Company, LLC
Technical Specifications
• St. Louis, MO
•
8830114 - REV A
Standby Current
Alarm Current
Operating Temperature
Operating Humidity Range
Maximum Wire Length
Maximum Annunciators
Size (WxHxD)
Wire Gauge
• Phone: 800-325-3936
04/16
RA-6500R
LCD Annunciator
20 mA
25 mA
0°C-49°C (32°F-120°F)
10%-93% @ 30°C (86°F) non
condensing humidity
6500 ft.
31
10" x 7-7/8" x 1-5/8"
14 AWG-22 AWG
• www.pottersignal.com
