Potter Amseco EBP-401 Wiring Diagram

A Brand
The EBP-401 is a surface mount, 40 ft., long range annunciator system using active infrared technology. This invisible single infrared
beam triggers a pleasant chime sound when the infrared beam is interrupted. The system can be installed anywhere inside the buildings
where traffi c surveillance is required.

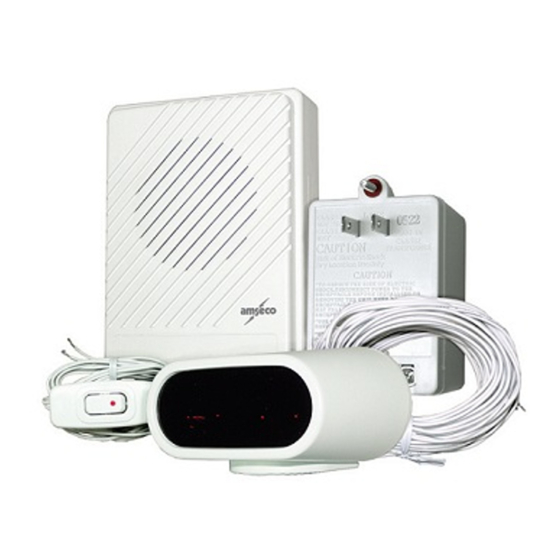

Complete Kit Includes:
1 Electronic chime
1 Infrared sensor
1 Refl ector
1 Power transformer (12V AV 20VA)
1 Long plastic bracket
1 Metal short bracket
1 Short plastic bracket
1 6 ft. power cord with in-line switch
1 26 ft. 2-conductor wires
6 3/4" sheet metal screws
1 3/8" bolt w/locking washer
2 5/8" machine screws w/washers and nuts
1 Manual

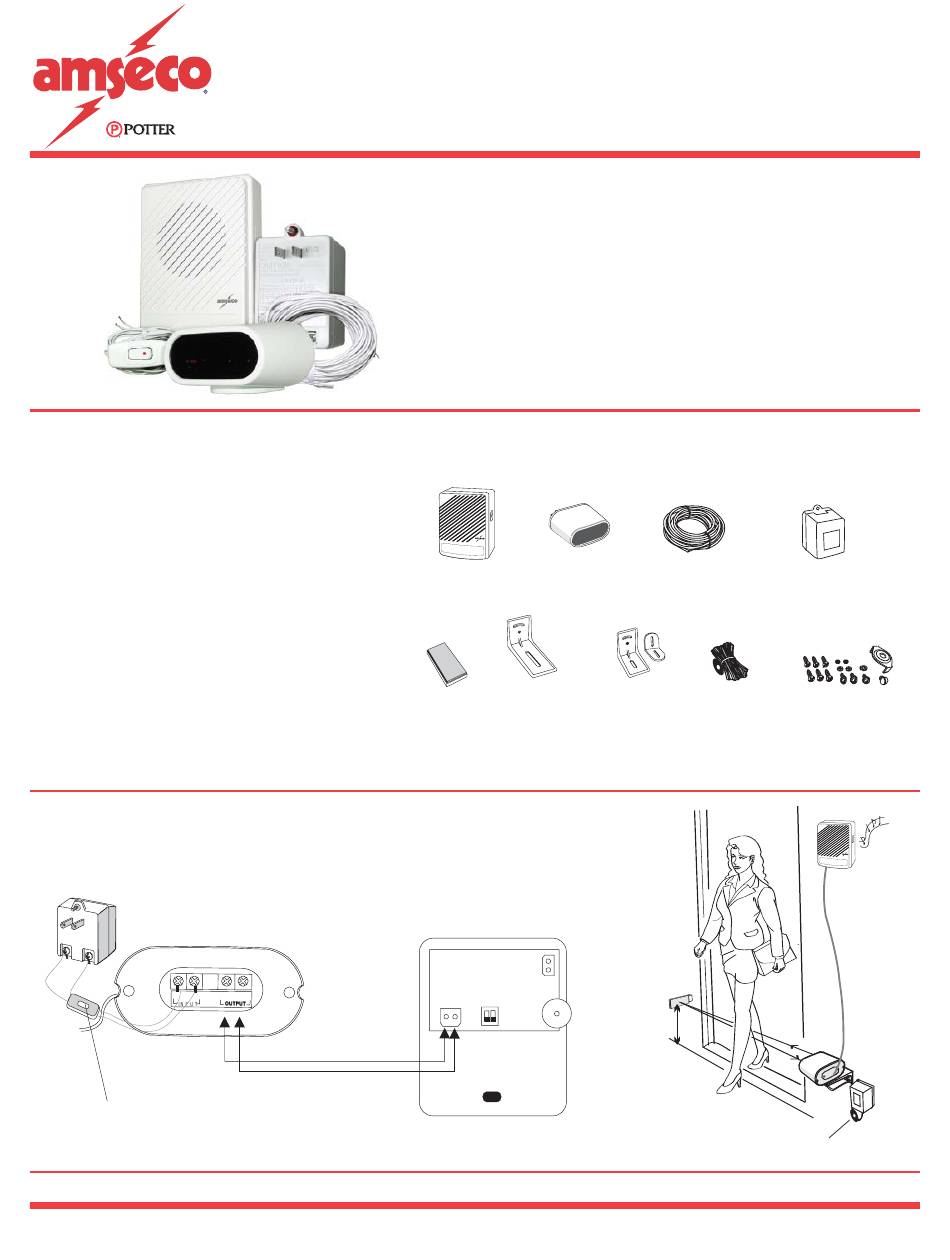

Wiring Diagram
Transformer
EBPT-401
12V AC 12V AC
Power
Switch
Potter Electric Signal Company • 2081 Craig Road, St. Louis, MO, 63146-4161 • Phone: 800-325-3936/Canada 888-882-1833 • www.amseco-kai.com
PRINTED IN USA
GND +12V GND +12V
GND: White/Black
+12V :White
• Intelligent microprocessor driven system
• 40 ft. detection range across doorway
• Four user selectable chime sounds
• Advanced circuit integrated with active-infrared
beam technology
• High/low volume control
• Expandable using additional chimes (CM-5)
Stock Number - 4130030
Electronic Infrared
Sensor
Chime
Refl ector
Long Plastic
and Short
Metal
Mounting
Bracket
CM-5
SPK
CHIME SEL .
MKT. #8850053 - REV A
5/06
EBP-401
LONG RANGE DOOR
ANNUNCIATOR SYSTEM
26 ft Wires
(12VAC 20VA)
Short
6 ft Power Cords
Mounting
With In-line ON/
Bracket OFF Switch
2~3
Feet
Min.
Power
Transformer
Hardware
Power ON/OFF
Switch
PAGE 1 OF 2
