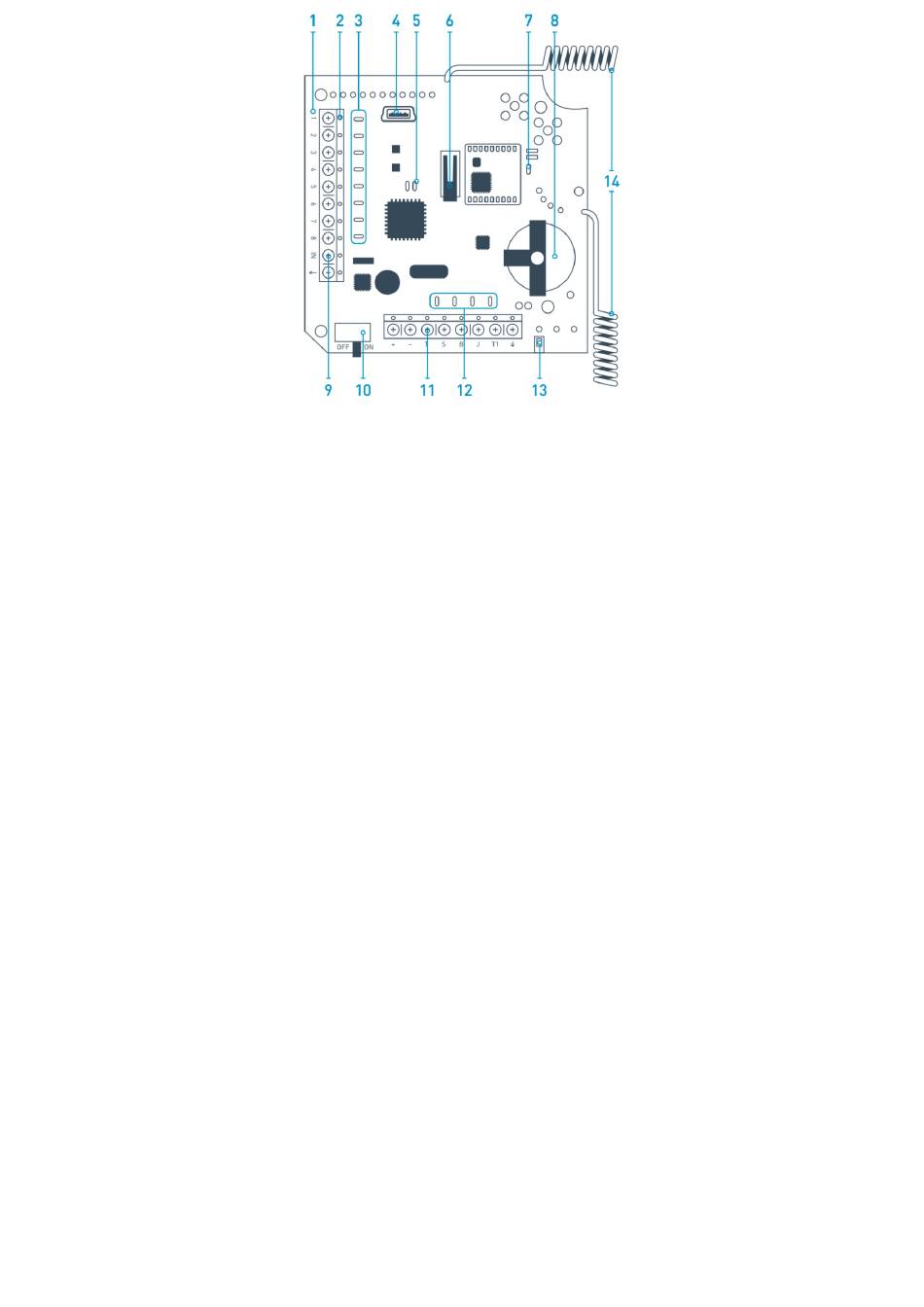

Picture 1. ocBridge Plus wireless sensors receiver
1. — ocBridge Plus main board
2. — terminal strip for connection to the main zones of the central unit
3. — 8 red lights indicators of the main zones
4. — mini USB connector
5. — red and green light indicators (consult the table for the description)
6. — «opening» tamper button
7. — green power supply indicator
8. — battery for backup saving
9. — IN digital input
10. — power supply switch
11. — terminal strip for connection to the central unit service zones
12. — 4 green indicators of the service zones
13. — «breakdown» tamper button (on the reverse of the main board)
14. — antennas
