7. The page "System's monitor" is designated for sensors' state control and for
tests of their radio connection. The sensor's current state is de ned with its
background lighting color (Picture 15):
white background — the sensor is connected;
gray background — the connected detector starts operation, ocBridge Plus
waits for the detector to send its rst status and will transmit the current
system settings in response to it;
light-green lighting (during 1 second) is turning on when the status is
received from the sensor;
orange lighting (during 1 second) is on when the alarm signal is received
from the sensor;
yellow lighting — the sensor's battery is low (only the battery level is
illuminated);
red lighting — the sensor is not connected, it is lost or not in working mode.
Picture 15. The connected sensors are entering to working mode

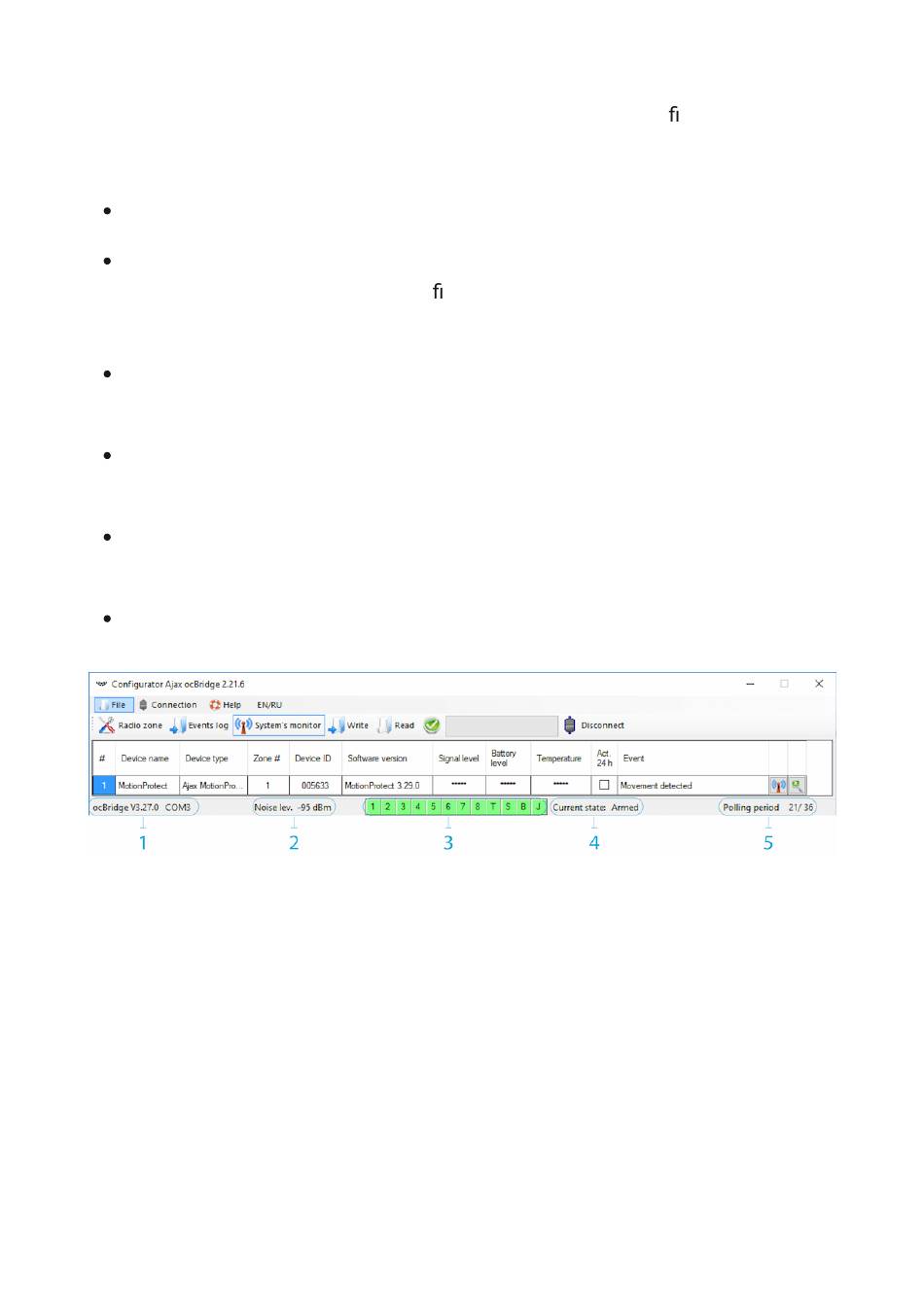

8. In the bottom of "System monitor" (Picture 16) the information is displayed
about:
1. current connection to the computer;
2. background noise level;
3. alarm and service zones condition (active zones are highlighted);
4. current alarm system state (Activated/Deactivated);
5. countdown timer of the sensors' current poling period.
