ocBridge Plus User Manual
Wireless sensors' receiver ocBridge Plus is designated for connecting
compatible Ajax devices to any third party wired central unit (panel) with a help
of NC/NO contacts. Ajax system has two-way connection with the sensors
which enables it's functioning in two modes: active mode and passive mode.
When the system is in passive mode, wireless sensors switch to power-saving
mode, which makes it possible to extend signi cantly battery life.
If the receiver ocBridge Plus is connected to the wire central unit, the digital input «IN»
(wire input) MUST have connection with relay output or transistor output from the central
unit, and this output must be inverted when the central unit is being armed or disarmed.
Detailed description of connection to the central unit described in Managing the central
unit.
Buy ocBridge Plus
Functional Elements
Updated March 6, 2021
Advertisement
Related Manuals for AJAX ocBridge Plus
Summary of Contents for AJAX ocBridge Plus
- Page 1 If the receiver ocBridge Plus is connected to the wire central unit, the digital input «IN» (wire input) MUST have connection with relay output or transistor output from the central unit, and this output must be inverted when the central unit is being armed or disarmed.

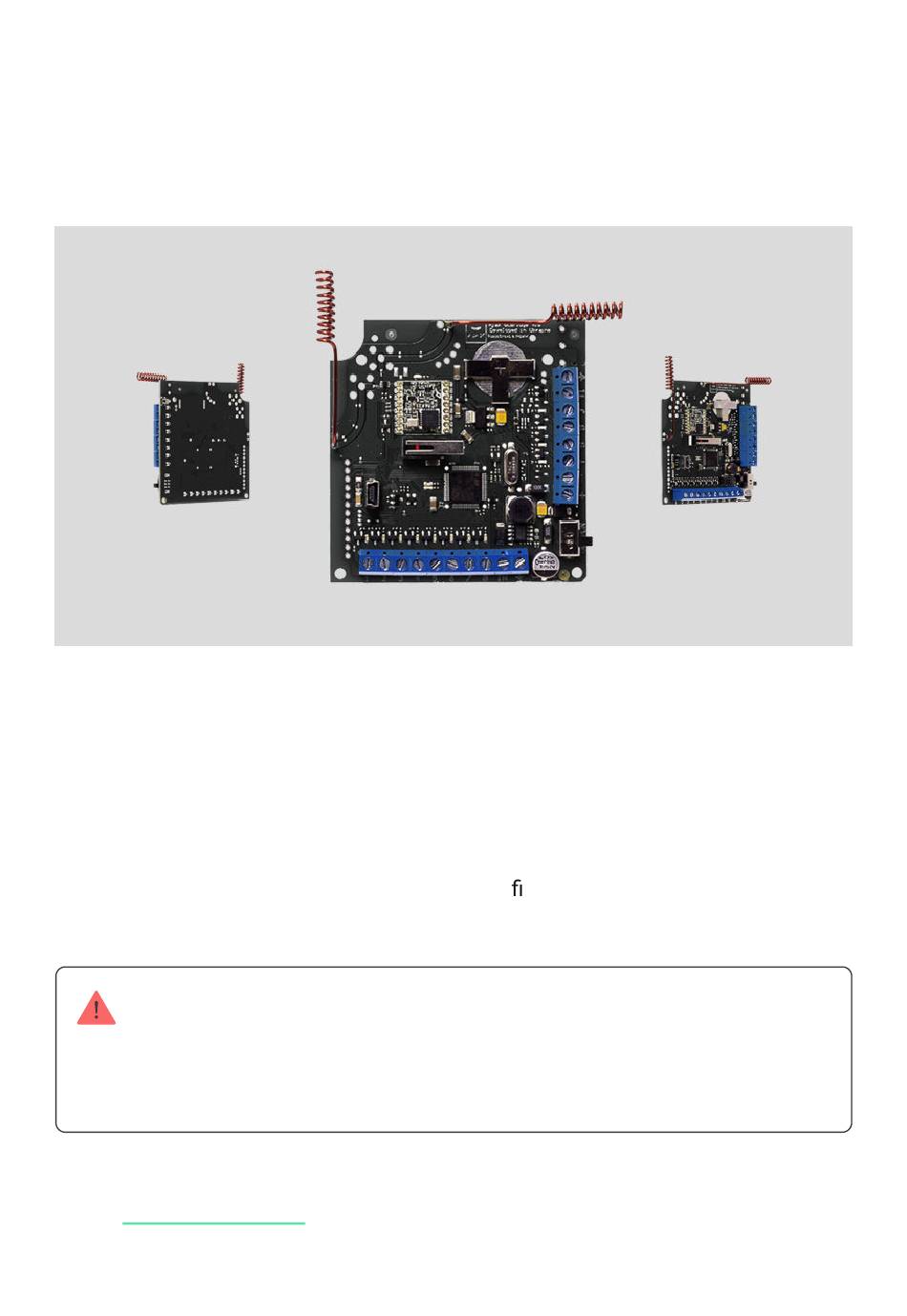

- Page 2 Picture 1. ocBridge Plus wireless sensors receiver 1. — ocBridge Plus main board 2. — terminal strip for connection to the main zones of the central unit 3. — 8 red lights indicators of the main zones 4. — mini USB connector 5.
- Page 3 1. Connect the ocBridge Plus to the computer with a help of USB cable (type A– miniUSB) through connector «4» (Picture 1). Turn on the receiver with the switch «10» (Picture 1). If it is the rst connection, wait until the system identify new device and install the software drivers.
- Page 4 Red/green- blinks momentarily Failure is detected 2. All devices that you want to connect to the ocBridge Plus must be registered with a help of «Ajax ocBridge Plus con gurator». In order to register the sensors, it is necessary to create radio zones in the con gurator in case of it had not been done before.
- Page 5 Picture 3. Adding a zone Then, appropriate “Zone type” and settings is to be selected (consult Managing the central unit of the present manual). To add a device chose necessary zone and click “Add a device” button. Then, a “Adding new device” window appears and it is necessary enter sensor’s identi er (ID) applied on it below QR code, then click the “Search”...
- Page 6 “Read” (Picture 4) to read the pre-saved sensors’ con guration from the ocBridge Plus memory. Make sure that installation location of sensor, has a stable radio contact with the ocBridge Plus receiver! A maximum distance of 2000 m (6552 ft) between the sensor...
- Page 7 Take into consideration, if you move the sensor even 10 cm (4 in), it is possible to improve signi cantly the quality radio signal between the sensor and the ocBridge Plus. 5. Select an appropriate place to install the sensors.
- Page 8 Please install the sensors in the places with the signal level of 3 or 2 bars. Otherwise, the sensor may function inconsistently. 6. The maximum number of devices that you can connect to the ocBridge Plus depends on the polling period.
- Page 9 Using con guration software 1. “File” menu (Picture 8) allows to: save active con guration of ocBridge Plus settings in le on PC (Save con gurations to le); upload to ocBridge Plus the settings’ con guration saved on the computer (Open the existing con guration);...
- Page 10 nd the information on the current software version; download the help le. Picture. 10. “Help” menu 4. On page “Radio zones” (Picture 11) it is possible to create required the detection zones areas required and to add there sensors and devices (consult Sensors’...
- Page 11 Picture 12. Alarming events log Events in all logs are displayed chronologically, starting from the rst one and ending with the last one. The event number 1 is the last event (the most recent event), the event number 50 is the oldest event. Picture 13.
- Page 12 (Picture 15): white background — the sensor is connected; gray background — the connected detector starts operation, ocBridge Plus waits for the detector to send its rst status and will transmit the current system settings in response to it;...
- Page 13 Picture 16. Detection area test Managing the central unit 1. It is necessary to install the ocBridge Plus near the alarm system central unit (panel). Do not install the receiver in the metal box, it will worsen considerably the radio signal receiving from the wireless sensors. If installation in the metal box is indispensable, it is necessary to connect an external antenna.
- Page 14 Picture 17. Main outputs and input “IN” of the receiver Other 5 outputs of ocBridge Plus are service zones and correspond to the service inputs of the alarm system central unit. Picture 18. ocBridge Plus receiver’s service outputs and power supply...
- Page 15 The table provides the description for main and service zones’ contacts: Output № Marking Description 1st zone output 2nd zone output 3rd zone output 4th zone output 5th zone output 6th zone output 7th zone output 8th zone output Wire input for connecting to the central unit output (for 9 (Input) alarm system arming/disarming) Ground for connection to the central unit...
- Page 16 4. Zones are divided into 3 types: alarm zones, automation zones and arm/disarm zones (Picture 19). Zone type is selected when the zone is created, consult Sensors’ handling. Picture 19. Selecting zone type The alarm zone can be set (Picture 20) as NC (normally closed contacts) and as NO (normally opened contacts).
- Page 17 Picture 20. Alarm zone settings The alarm zone reacts to bistable detectors (e.g. DoorProtect and LeaksProtect) with opening/closing, depending on setting “Initial state” (NC/NO). The zone is in alarm mode until the bistable detectors state returns to its initial state. The zone reacts to impulse sensors (e.g.
- Page 18 In case several groups of sensors are used independently on the central unit, the ocBridge Plus is to be set to the “active” mode even if only one group of central unit is in armed mode. Only when all groups on central unit are deactivated, is possible to set the ocBridge Plus and sensors to “passive”.
- Page 19 is (it varies from 12 to 300 seconds, 36 seconds set by default), the longer is wireless sensors’ battery life! At the same time it is suggested not to use a long polling period in secure systems for places where delay can be critical (for example, in nancial institutions).
- Page 20 S will activate after the period of time equal to the parameter “Polling period” multiplied by the parameter “Passes number” (Picture 25). By default, if ocBridge Plus does not receive 40 heartbeats from sensor successfully, it generates an “Lost connection” alarm.
-
Page 21: Firmware Upgrade
Firmware is upgraded with a help of con guration software. If the ocBridge Plus is connected to con guration software, you should press “Disconnect” button without disconnecting the ocBridge Plus itself from PC. Then, in the menu “Connection”, you should select a COM port where ocBridge Plus is connected. -
Page 22: Maintenance
“Open the existing con guration” and then to press the button “Write down”. After this, the window of sensors’ search will appear (Picture 27) on ocBridge Plus and the green light indicator will blink for 10 minutes. Picture 27. Saved con guration devices search... -
Page 23: Warranty
8.01 dBm / 6.32 mW (limit 25 mW) Radio frequency band, modulation 868.0–868.6 MHz, GFSK Maximum distance between wireless sensor 2000 m (open area) (6552 ft) and receiver ocBridge Plus Maximum number of connected devices Radio channel jamming detection Available Sensor e ciency control... - Page 24 Warranty for the “AJAX SYSTEMS MANUFACTURING” LIMITED LIABILITY COMPANY products is valid for 2 years after the purchase and does not apply to the pre-installed battery. If the device does not work correctly, you should rst contact the support service — in half of the cases, technical issues can be solved remotely!
