WPF-QR2
PHOTO/VIDEO BRACKET
with SLIDING/ADJUSTABLE MOUNT
(L-PLATE REQUIRED; NOT INCLUDED)
WPF-QR2 shown folded
FA-QR1 strobe cord
adapter, included.
Fits most off-camera
strobe cords.
SPECIFICATIONS:
I t e m I n c l u d e s o n e e a c h W P F ‑ Q R 2
q u i ck ‑ r e l e a s e m o u n t , FA ‑ Q R 1 s t r o b e c o r d a d a p t e r, 5 / 3 2 " h e x k e y.
W e i g h t w i t h o n e FA ‑ Q R M . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11. 6 o u n c e s / 3 3 0 g
We i g h t w i t h o u t FA ‑ Q R M . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10 . 8 o u n c e s / 3 0 5 g
W e i g h t o f F A ‑ Q R M . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 0 . 9 o u n c e s / 2 5 g
F o l d e d L e n g t h . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8 . 2 5 i n c h e s / 2 1 c m
F o l d e d T h i c k n e s s . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 0 . 7 5 i n c h e s / 1 9 m m
F o l d e d W i d t h . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1. 9 i n c h e s / 4 8 m m
F o l d e d W i d t h i n c l u d i n g c l a m p k n o b . . . . . . . . . . . . . . . . 2 . 2 5 i n c h e s / 5 . 7 c m

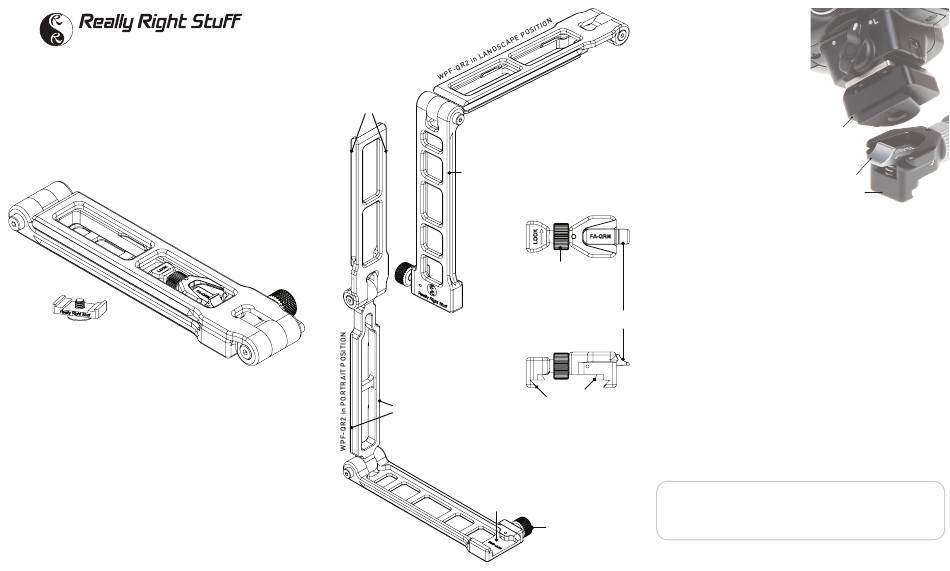

KEY FEATURES

®
Dual dovetail rail
accepts FA‑QRM
(use outer jaw of
FA‑QRM).
with FA-QRM in stored
position.
f l a s h b r a c k e t , F A ‑ Q R M
Outside dovetail rail
accepts FA‑QRM
(use outer jaw of
FA‑QRM).
FA-QRM, Top View
Grey knob locks
mount to rail; rotate in
direction of arrow to
lock, opposite to unlock.
Press grey QR Latch down
to release QR adapter.
FA-QRM, Side View
outer
Dual dovetail rail
jaw
accepts FA‑QRM
FA‑QRM has two sets of jaws.
(use inner jaw of
The outer jaw fits all Really Right
FA‑QRM).
Stuff rails. The inner jaw fits the
middle rail of the WPF‑QR2.
Use integrated clamp to
firmly attach WPF‑QR2
to L‑Plate (not included).
Knurled knob is easy
to grip.

HOW IT WORKS

SNAP QR™
Patented System
Your WPF‑QR2 comes with one FA‑QR1
strobe cord adapter. Choose other QR
adapters for accessories. We make
adapters for strobes, strobe cords,
microphones, LCD monitors, and more.
Install the QR adapter to your accessory,
then snap it into the QR mount. To remove,
press down on the QR Latch and remove
SNAP QR
TM
your gear. Our mount is built
into all Really Right Stuff flash brackets,
flash mounts, flash accessories, and
SNAP QR
versatile FA‑QRM. Our
is protected by US Patent No. 8,398,315.

MAINTENANCE

GENERAL CARE

The WPF‑QR2 is finished with a protective anodized plating that protects the
aluminum from corrosion and mild abrasion. It will not protect against scraping
against or dropping on rocks/concrete/etc. DO NOT USE THE WPF-QR2 AS A
HANDLE FOR PICKING UP YOUR GEAR.

CLEANING

If any component is fouled, dry dust and dirt can be blown off and/or wiped off
with a soft cloth. Mud or salt water should be lightly rinsed off with fresh water
and then thoroughly dried. Do not direct a high‑pressure stream of water at any
component. The clamp knob is captive, meaning it cannot come off without
damaging it so do not attempt to remove the knob.
inner
jaw

LUBRICATION

Most parts require no lubrication. Just keep the components free from
contamination to maintain smooth action. Over time, Release Buttons may trap
grit and feel sticky. Wipe Release Buttons clean, then press to expose backside
of Release Button; apply lubrication and work the Release Button back and forth
to distribute. We recommend using a water resistant silicon grease.
ALL REALLY RIGHT STUFF BRAND PRODUCTS ARE GUARANTEED TO
THE ORIGINAL PURCHASER TO BE FREE OF DEFECTS IN MATERIALS OR
WORKMANSHIP FOR FIVE (5) YEARS FROM THE DATE OF PURCHASE.
PRODUCTS WILL BE REPAIRED OR REPLACED AT OUR OPTION.
® , ™, © 2014 Really Right Stuff, LLC. All rights reserved.
QR Adapter
QR Latch
TM
system
QR Mount

GUARANTEE
