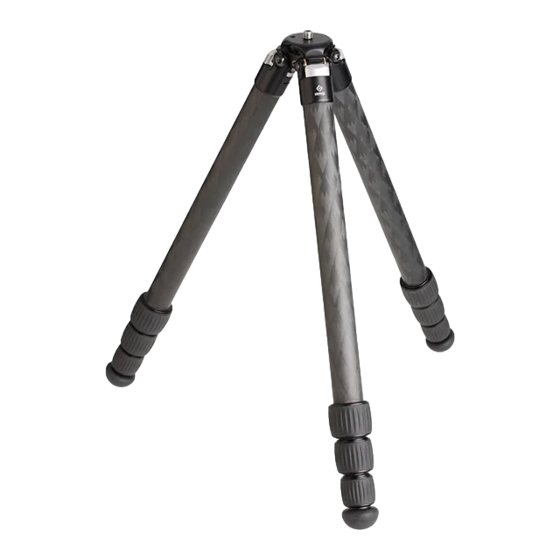

Summary of Contents for Really Right Stuff TQC-14
- Page 1 100% MADE IN THE USA TRIPOD MONOPOD MANUAL &...
- Page 2 WELCOME Thank you for purchasing a Really Right Stuff tripod or monopod . Many years ago , we set out to create tripods that would exemplify the best in craftsmanship and quality . We are proud to present to you the results of that pursuit . Our ‘pods are the culmination of first-hand experience and abundant input from...
- Page 3 T V C - 3 4 L RRS ‘Pod Models Understanding ‘Pod Names Series 1 TQC-14 Tripod, Quick-Column, 4 leg sections per leg 25 lb / 11.3kg 2.6 lb / 1.2kg TFC-14 Tripod, Fixed Apex, 4 leg sections per leg 25 lb / 11.3kg...
-
Page 4: Features At A Glance
FEATURES AT-A-GLANCE Our tripods and monopods are made with carbon fiber, hard anodized 6061‑T6 aluminum, and stainless steel. 100% made in the U.S.A. 1. Mounting Stud ⁄ ” Mounting Stud securely attaches to tripod heads. 2. Spirit Level The bullseye helps you level your tripod with ease (Versa tripods only). - Page 5 BASIC TRIPOD USE Before taking your tripod afield, take a moment to familiarize yourself with its operations. Swing out all three legs. Grab all Twist Locks with one hand and rotate one quarter turn. Pull leg until fully extended. Tighten Twist Locks. Repeat on all legs.
- Page 6 SETTING LEG ANGLES For low‑level settings, use the ratcheting Angle Stop as shown below. Swing leg inward slightly. Slide Angle Stop out completely. (Slide back in at any time to cancel.) Swing leg to horizontal position. Angle Stop will engage. Move to desired position.
- Page 7 QUICK-COLUMN TRIPODS Quick‑Column Tripods come with integrated Quick‑Column. Column is removable for ground set; follow steps below. Tighten Butterfly Knob, then use ⅛” hex key (included) to loosen Platform set screw(s) (do not remove). Unscrew and remove Platform and Weight Hook. Rotate Butterfly Knob counterclockwise no more than two complete turns (do...
- Page 8 REVERSE THE STUD The threaded platform stud on the TFC‑14 is dual‑threaded ¼”‑20 and 3⁄ 8 ”‑16 and is reversible. Follow the steps to reverse the stud from 3⁄ 8 ”‑16 to ¼”‑20. 1. Use 5/32” hex key to unscrew and remove the Stud.
- Page 9 ADJUST THE SET SCREW The TFC‑14 platform comes with one Set Screw that can be used to prevent your tripod head from coming loose. For clarity, drawings do not show the tripod head installed to the tripod. Install your tripod head, then follow steps. Screw 1.
-
Page 10: Maintenance
» Periodically apply multi-purpose lubricant to the threads of each leg joint. However, never lubricate the carbon fiber legs. » Check for metal corrosion. Contact Really Right Stuff for any necessary replacement parts. » Always keep your tripod in a protective bag when transporting or storing. - Page 11 CLEANING Avoiding harsh environments such as sand and saltwater is essential to preserving the life of your tripod. However, we do understand that sometimes it is unavoidable. Therefore, we have made it simple to disassemble the leg portions for thorough cleaning. Unscrew Twist Lock and fully remove leg section.
- Page 12 Apex QD Mounts are compatible only with mid-2016 and newer Series 2/3/4 tripods. Series 1 Apex QD Mount is compatible only with the TFC-14 (not compatible with TQC-14). For other models, do not use Apex QD Mount; instead, install two Leg QD Mounts.
- Page 13 QD STRAP SYSTEM Apex QD Mount For Series 2/3/4 Install Apex QD Mount to underside of apex with two screws. For TFC-14 Install Apex QD Mount into threaded socket on side of apex. www.ReallyRightStuff.com...
- Page 14 Remove Apex platform or other accessory by pushing it upward. Insert compatible accessory. NOTE: Although Gitzo ® Systematic accessories will fit Versa Series 3 tripods, SureGrip™ functionality is only compatible with Really Right Stuff brand accessories. Tighten all three SureGrip™ set screws.
- Page 15 ‘POD ACCESSORIES Tripod & Monopod Accessories to fill all your photography needs. Versa Quick Columns MTX Multi-Tool With integrated SureGrip™ The best tool for your tripod. Replacement Feet Great for tripods & monopods. TA-3-FRC TA-3-FS Rock Claws for Foot Spikes for rocky terrain.
- Page 16 www.ReallyRightStuff.com...
