Bradley S19 210ss Pedestal Mounted Eye Face Wash
Bradley S19 210 Eye Face Wash Hand or Foot
215-604 Rev. W; ECN 12-05-033
© 2013 Bradley
Page 1 of 5
3/19/2013
netzerotools.com
netzerotools.com
Installation

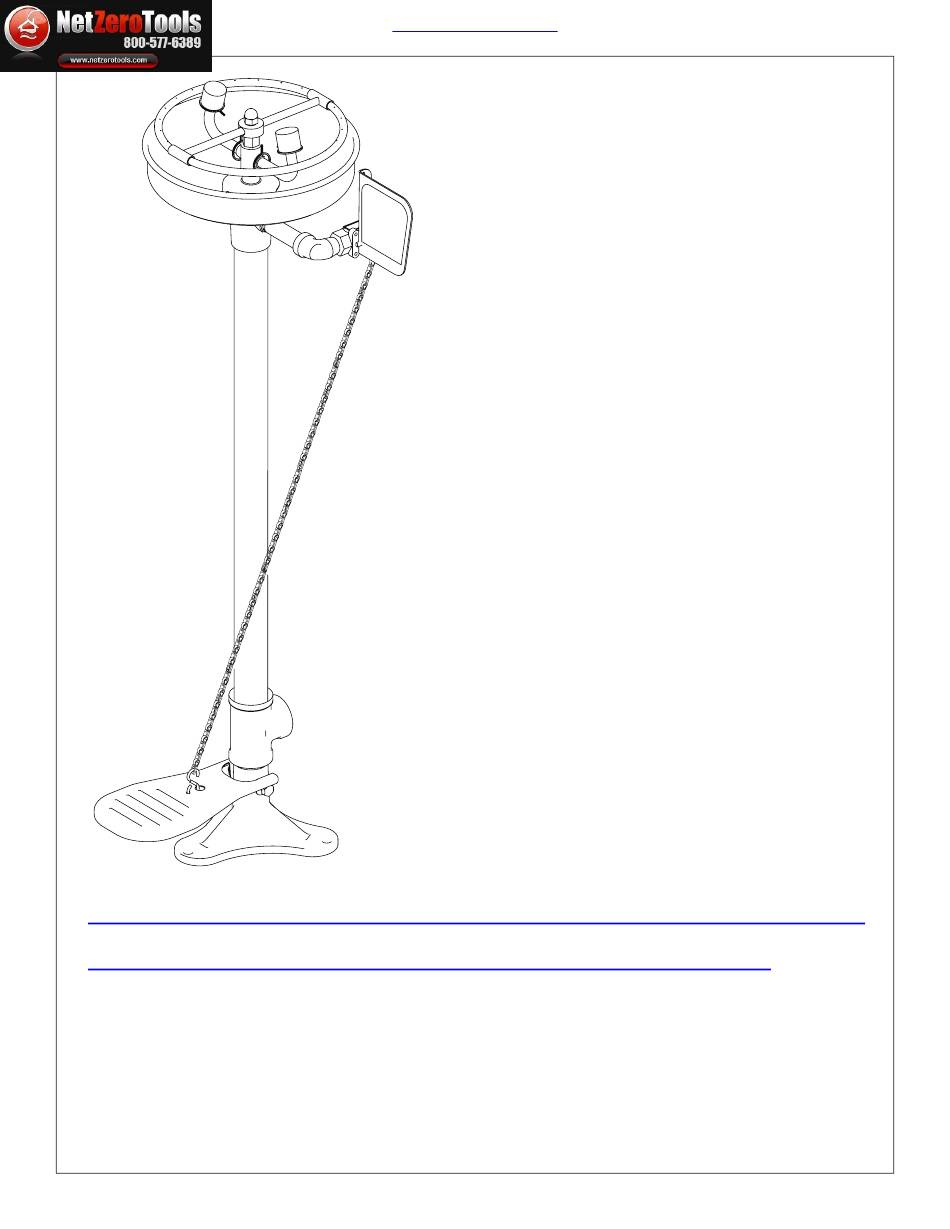

S19-210SS
Pedestal-Mounted Stainless Steel
Eyewash with Foot Pedal
Table of Contents
Pre-Installation Information. . . . . . . . . . . . . . . . . . . . . . . . . . 2
Installation Instructions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3
Assembly of Components. . . . . . . . . . . . . . . . . . . . . . . . . . . 4
Parts List. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
netzerotools.com
Advertisement
Table of Contents
Related Manuals for Bradley S19-210SS
Summary of Contents for Bradley S19-210SS
- Page 1 Parts List........5 Bradley S19 210ss Pedestal Mounted Eye Face Wash Bradley S19 210 Eye Face Wash Hand or Foot 215-604 Rev. W; ECN 12-05-033 ©...
-
Page 2: Pre-Installation Information
Test the unit for leaks and adequate water flow. Main water supply to the eyewash should be “ON” at all times. Provisions shall be made to prevent unauthorized shutoff. The ANSI Z358.1 standard requires an uninterrupted supply of flushing fluid. Bradley plumbed emergency fixtures require a minimum of 30 PSI (0.21 MPa) flowing pressure. -
Page 3: Installation Instructions
Installation S19-210SS Installation Instructions Flush the water supply line before beginning installation. Supplies Required: 15³⁄₈" (292mm) • (3) ³⁄₈" floor anchors and bolts • Pipe sealant • Piping to ½" NPT water supply inlet on unit • Piping to 1¼" NPT drain outlet for eyewash •... -
Page 4: Assembly Of Components
S19-210SS Installation Assembly of Components 4.12 4.11 4.10 P.O. BOX 309, MENOMONEE FALLS, WI 53052-0309 USA TEL: 1-800-BRADLEY FAX: (262-251-5817) http://www.bradleycorp.com 114-051 P.O. Box 309, Menomonee Falls, WI 53051 TEST THIS UNIT EACH WEEK DIESES GERÄT 1ST WÖCHENTLICH ZU PRÜFEN. -
Page 5: Parts List
Installation S19-210SS Parts List Item Part No. Description Item Part No. Description 131-062 Base 269-241 Elbow 269-237 Pipe Tee 1¼" NPT S27-328 ½" Ball Valve with Nut 113-584 Pipe 1¼" NPT x 26½" 110-248 Nut 316 Stainless Steel S90-317...
