Bradley S19-625 Installation

Hand-held drench hose and eye/face wash

Download this manual

215-1622; EN 06-542

Page 1 of 4

2/22/07

Installation

S19-625

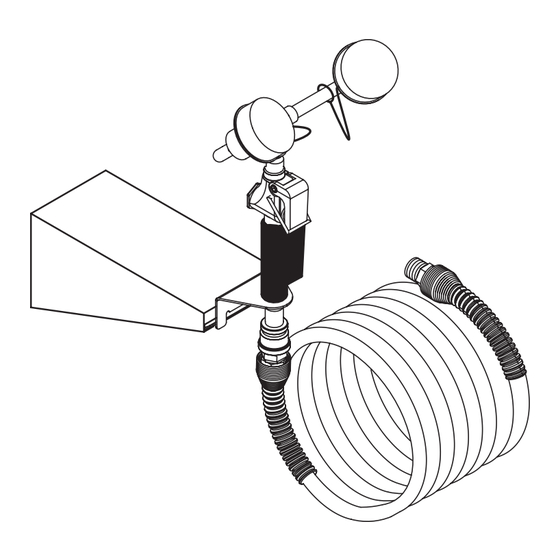

Hand-Held Drench Hose and

Eye/Face Wash

Table of Contents

Pre-Installation Information . . . . . . . . . . . . . . . .2

Installation Instructions . . . . . . . . . . . . . . . . . . .3

Assembly of Components . . . . . . . . . . . . . . . . .4

Parts List . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4

P.O. Box 309, Menomonee Falls, WI USA 53052-0309

PHONE 1-800-BRADLEY FAX (262) 251-5817

http://www.bradleycorp.com

Need help?

Do you have a question about the S19-625 and is the answer not in the manual?

Page 1 Parts List .......4 215-1622; EN 06-542 P.O. Box 309, Menomonee Falls, WI USA 53052-0309 © 2007 Bradley Corporation PHONE 1-800-BRADLEY FAX (262) 251-5817 Page 1 of 4 2/22/07 http://www.bradleycorp.com...
Page 2 FAX: (262-251-5817) http://www.bradleycorp.com 114-051 For questions regarding the operation or installation of this product, visit www.bradleycorp.com or call 1-800-BRADLEY. Product warranties may also be found under ”Product Information” on our web site at www.bradleycorp.com. 2/22/07 Bradley Corporation • 215-1622; EN 06-542...
Page 3 Figure 1a inches from the top of the sprayheads to the finished floor. For usage as an eye/face wash, the top of the sprayheads of the S19-625 must be 2" 33–45 inches from where the user (51mm) stands per ANSI Z358.1. The unit must also be placed a minimum of 6"...
Page 4 Nut, Lock S70-094 Wall Bracket 113-635 Nipple 153-337 Adapter 169-078 Coupling S05-148 Angled EFW Assembly 269-053 Hose, 12’ S05-091P Yoke Assembly 114-051 Safety Sign S05-135 Sprayhead Assembly 204-421 Emergency Tag S53-063 Dust Cover Assembly 2/22/07 Bradley Corporation • 215-1622; EN 06-542...
