Bradley S19-281 Installation Manual

Barrier free cabinet-mounted swing-down eyewash
Hide thumbs
1
2
3
4
5
6

Advertisement

Quick Links

Download this manual
215-1528 Rev. B; EN 07-523A
© 2008 Bradley Corporation

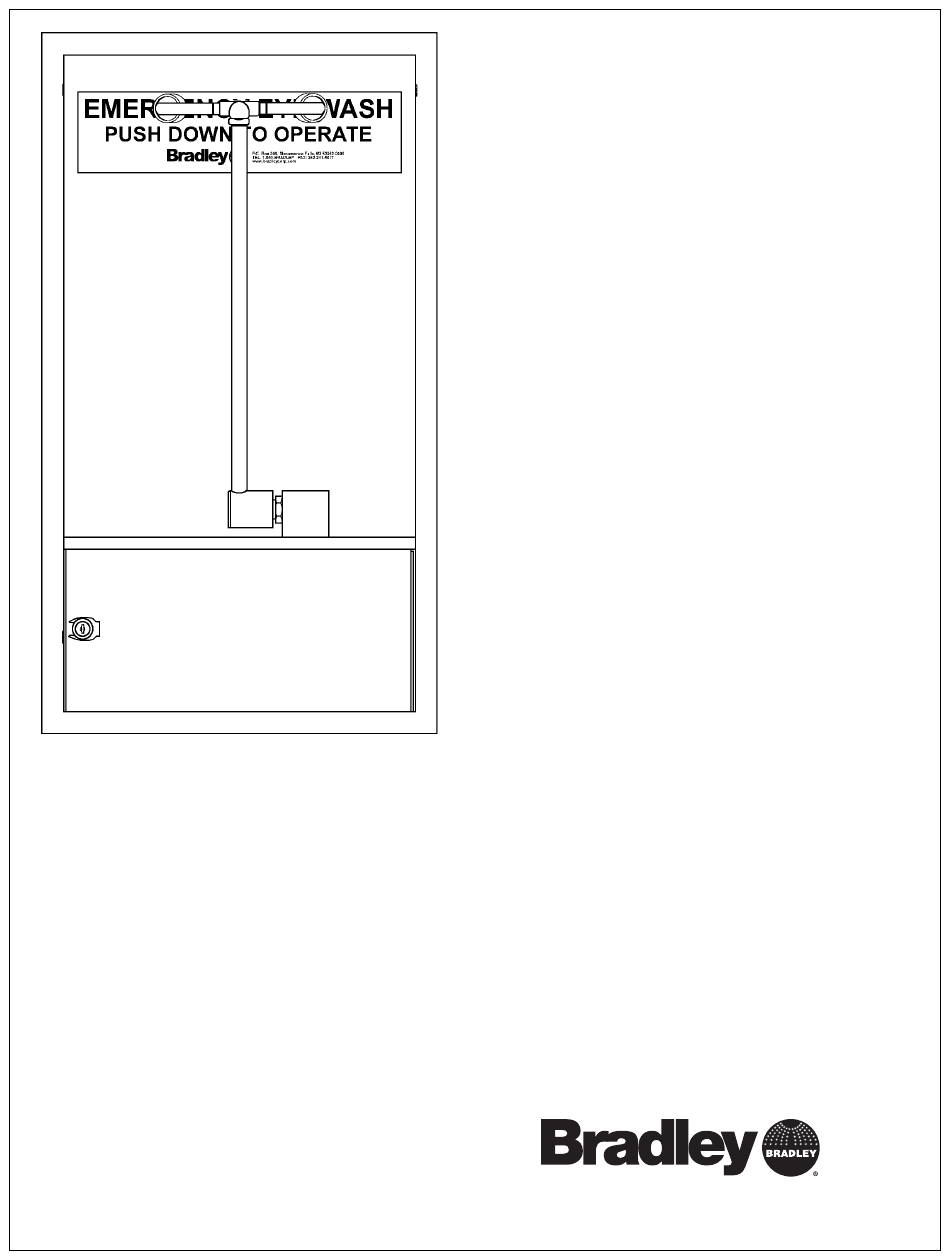

Page 1 of 6
1/15/08
Installation
S19-281 (Eyewash)
S19-291 (Eye/Face Wash)
Barrier Free Cabinet-Mounted
Swing-Down Eyewash
Table of Contents
Pre-Installation Information . . . . . . . . . . . . . . .2
Installation Instructions . . . . . . . . . . . . . . . . . .3
S19-281 Components . . . . . . . . . . . . . . . . . . . .4
S19-291 Components . . . . . . . . . . . . . . . . . . . .5
Parts List . . . . . . . . . . . . . . . . . . . . . . . . . . . . .6
