Ziton ASWP-RF Installation Manual

Speci cation
IP rating IP55
Dimensions (Ø x D) 155 x 12 mm
Weight 0.25 kg
Regulatory information
Manufacturer
EMS Ltd. Technology House,
Herne Bay, Kent, CT6 8JZ.
United Kingdom
Complies With BS EN 60529:2000
Application Type B for outdoor use.
Product warnings and disclaimers
THESE PRODUCTS ARE INTENDED FOR SALE TO AND
INSTALLATION BY QUALIFIED PROFESSIONALS. CARRIER
FIRE & SECURITY CANNOT PROVIDE ANY ASSURANCE
THAT ANY PERSON OR ENTITY BUYING ITS PRODUCTS,
INCLUDING ANY "AUTHORIZED DEALER" OR
"AUTHORIZED RESELLER", IS PROPERLY TRAINED OR
EXPERIENCED TO CORRECTLY INSTALL FIRE AND
SECURITY RELATED PRODUCTS.
Notes
www.acornfiresecurity.com
www.acornfiresecurity.com
Ziton Weatherproo ng Kit Installation Guide
General
The Ziton Weatherproo ng Kit for Wireless Noti cation
Products is available under the following part number:
PART NO VARIANT TYPE
ASWP-RF Ziton Weatherproo ng Kit for
Wireless Noti cation Products
Supplied Parts

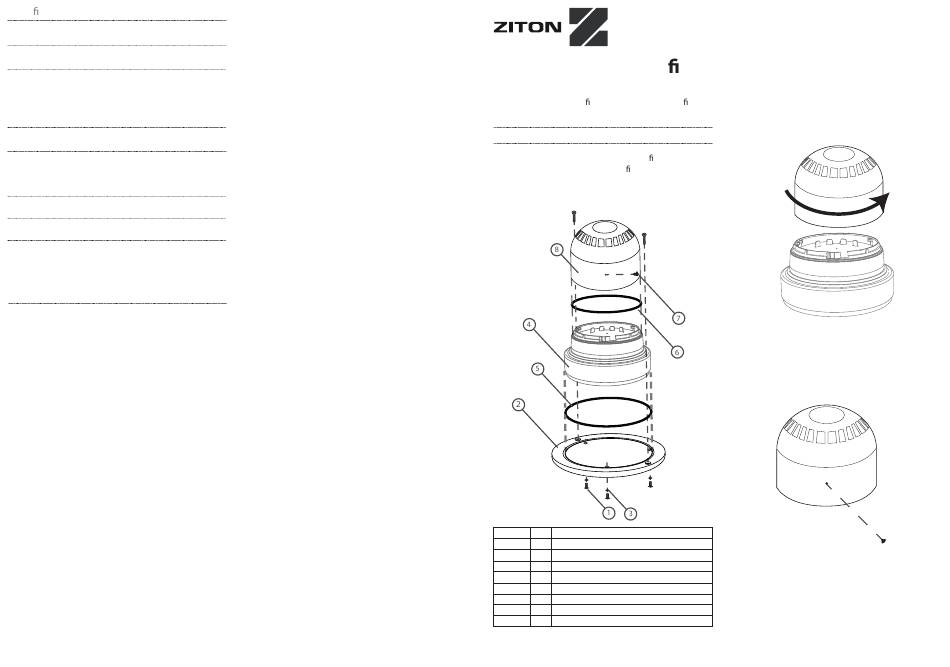

Ensure that you have all of the parts listed in Figure 1.
ITEM NO QTY PART DESCRIPTION
1 3 N06-1/2 Pan Pozi Stainless Steel Screw
2 1 Perspex Mounting Plate
3 3 Flat Washer
4 1 Wireless Module (Sold Separately)
5 1 0-ring 120.0 x 2.5 mm
6 1 0-ring 95.0 x 1.7 mm
7 1 Rubber Plug For Sounder/Visual Indicator
8 1 Sounder/Visual Indicator (Sold Separately)
Remove the Sounder / Visual Indicator
Remove the Sounder / Visual Indicator from the Wireless
Module by turning it counter clockwise as shown in
Figure 2.
Fit the Rubber Plug
Fit the Rubber Plug (item 7) into the cavity on the Sounder
/ Visual Indicator as shown in Figure 3.
Figure 1
Figure 2
Figure 3
