Summary of Contents for Hoshizaki RTE-120SDA-GN

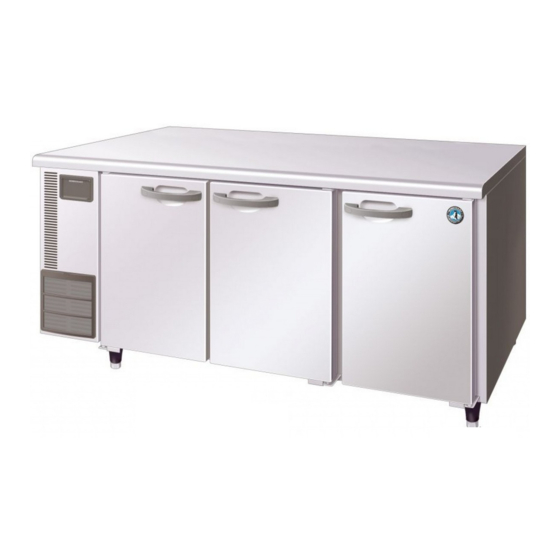

- Page 1 UNDERCOUNTER REFRIGERATOR/FREEZER RTE-120SDA-GN RTE-170SDA-GN RTE-120SDA-GN-ML RTE-170SDA-GN-ML FTE-120SDA-GN FTE-170SDA-GN INSTRUCTION MANUAL FTE-120SDA-GN-ML FTE-170SDA-GN-ML No. 15 Qingqiu Street, Suzhou Industrial Park, Suzhou 215126 China L1T040206 (053118)
-
Page 2: Important Safety Information
ENGLISH IMPORTANT SAFETY INFORMATION Throughout this manual, notices appear to bring your attention to situations which could result in death, serious injury, or damage to the unit. Indicates a hazardous situation which, if not avoided, could result in death WARNING or serious injury. - Page 3 ENGLISH The use of any electrical appliance involves the observance of some fundamental rules. In particular: * Instances of high humidity and moisture increase the risk of electrical short circuits and potential electrical shocks. If in doubt, disconnect the refrigerator/freezer. * Do not damage the power cord or pull it in order to disconnect the refrigerator/freezer from the electrical supply network.
-
Page 4: General Information
ENGLISH I. GENERAL INFORMATION CAUTION The height of the adjustable legs must be within 9 - 12 cm (or 15 - 18 cm for some models). 1. CONSTRUCTION If extended too much, the legs may become Window Panel weak or the adjusters can come off, causing Door (L) Top Panel unexpected injuries. -
Page 5: Electrical Connections
ENGLISH 3) Tilt the unit backward to mount the front legs or 4. ELECTRICAL CONNECTIONS casters (work in pair). IMPORTANT This refrigerator/freezer is provided with no power switch or earth leakage circuit breaker, but with overcurrent protection (fuse) only. Install a switch rated at least 10A on the main power supply. - Page 6 ENGLISH 10. Do not pack the cabinet with foods. Allow 3) Keep pressing the set point button, and push the some space between them to ensure a good temperature control button until the temperature air flow. display window shows the desired temperature. The cabinet temperature is adjustable between 11.
-
Page 7: Maintenance And Cleaning Instructions
ENGLISH * Any remaining detergent will damage metal or Decimal Point plastic surfaces. Use a soft cloth dampened with warm water to wipe it off. Fig. 8 [d] DEFROST The refrigerator/freezer automatically defrosts the evaporator every 6 hours. The temperature display Fig. -
Page 8: Before Calling A Service Agent
(1) Ambient temperature too high (above 43°C). 1) If one of the following error codes is displayed, (2) Door(s) opened too often. immediately contact an authorized Hoshizaki (3) Cabinet temperature setting too high. service company. (4) Too packed with foods or air inlet/outlet blocked. -
Page 9: Warranty
(1) Ambient humidity too high. (2) Door(s) opened too often. V. WARRANTY Hoshizaki warrants to the original owner/user that all Hoshizaki branded products shall be free of defects in material and/or workmanship for the duration of the “warranty period”. The warranty shall be effective for one year from the date of installation.
