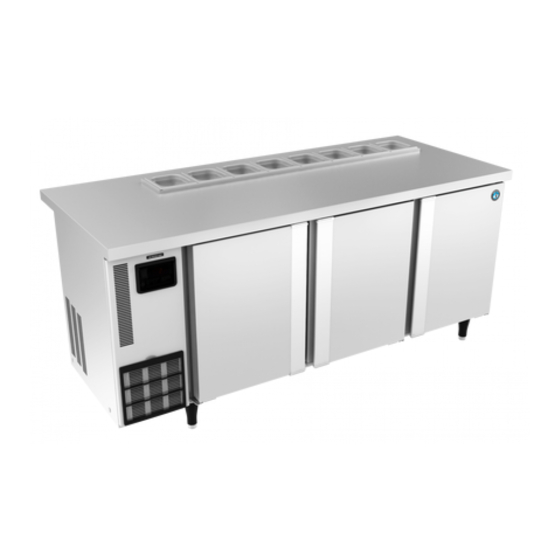

Undercounter refrigerator / freezer
Hide thumbs Also See for RTW Series:
Table of Contents

Advertisement

Quick Links

UNDERCOUNTER REFRIGERATOR / FREEZER
INSTRUCTION MANUAL
(ORIGINAL INSTRUCTIONS)
RTW - Series
FTW - Series
1000657-B

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the RTW Series and is the answer not in the manual?

Questions and answers

Related Manuals for Hoshizaki RTW Series

Summary of Contents for Hoshizaki RTW Series

  • Page 1 UNDERCOUNTER REFRIGERATOR / FREEZER RTW - Series FTW - Series INSTRUCTION MANUAL (ORIGINAL INSTRUCTIONS) 1000657-B...

  • Page 2: Table Of Contents

    CONTENTS PAGE I. INSTALLATION INSTRUCTIONS----------------------------------------------------------1 1. CONSTRUCTION--------------------------------------------------------------------------1 2. SPECIFICATIONS--------------------------------------------------------------------------2 2. ACCESSORIES-----------------------------------------------------------------------------3 3. LOCATION-----------------------------------------------------------------------------------3 4. SETUP----------------------------------------------------------------------------------------4 5. SHELF AND SHELF CLIP---------------------------------------------------------------5 6. ELECTRICAL CONNECTIONS--------------------------------------------------------5 II. OPERATING INSTRUCTIONS-----------------------------------------------------------12 1. START UP-----------------------------------------------------------------------------------13 2. FRONT PANEL AND WINDOW PANEL----------------------------------------------13 3. CABINET TEMPERATURE SETTING-----------------------------------------------13 4. DEFROST--------------------------------------------------------------------------------- 5 5.

  • Page 3: Installation Instructions

    ENGLISH I. INSTALLATION INSTRUCTIONS WARNING Do not wet the product or use it in potentially wet conditions. This 1. CONSTRUCTION may cause electrical leakage, Keep Dry (RTW-180/186/177 FTW 180/186/177) resulting in electric shock or fire. Ÿ The refrigerated unit contains R134a/ R404A and polyester lubricant.

  • Page 4: Specifications

    ENGLISH SPECIFICATIONS: Model RTW-120 RTW-126 RTW-150 RTW-156 RTW-180 RTW-186 RTW-127 RTW-177 Power Supply Single phase, 230V AC, 50Hz Amperage 1.5 Amp 1.5 Amp 1.5 Amp 1.5 Amp 1.7 Amp 1.7 Amp 1.5 Amp 1.7 Amp Electrical consumption 290 Watt 290 Watt 290 Watt 290 Watt 370 Watt...

  • Page 5: Accessories

    ENGLISH 1. (RTW-180MS4) Machine Compartment Door Shelf Front Canopy Panel Fig. 3 (RTW-127MS4-GN) GN RAIL 2. ACCESSORIES Fig. 4 Model 120/126/150/156 180/186 ¬ a) Shelf: Allow at least 500 mm clearance between the front b) Shelf Clip: panel air inlet/outlet and the wall or other equipment c) Shelf Holder: for proper air circulation.

  • Page 6: Setup

    ENGLISH 4) Turn the unit 90 degrees on the pallet, tilt the unit sideways, and screw in the two adjustable legs. Note: Keep the adjusters 2 cm longer to make it easy to pull out the pallet. 5) Before operating the unit, remove all shipping carton, packing, tape(s) and protective plastic film Fig.5 on the exterior, interior and top panel.

  • Page 7: Shelf And Shelf Clip

    ENGLISH 6. ELECTRICAL CONNECTIONS LOCK IMPORTANT This appliance i s provided with no power switch or earth leakage circuit breaker, but with over current protection only. Install an earth leakage circuit breaker with overload protection rated at least 10A on the main power supply.
  • Page 8 ENGLISH ELECTRICAL WIRING DIAGRAM HOSHIZAKI COMMERCIAL REFRIGERATOR RTW-120/150/126/156/127 OVER LOAD C10 SOCKET COMPRESSOR PROTECTOR FUSE 10A AMBIENT DEFROST O.L.P SENSOR SINGLE SENSOR PHASE 2 POLE 2 POLE 230V ~, 50HZ CONNECTOR CONNECTOR (BLUE) (WHITE) 3 POLE CONNECTOR (RED) RELAY BR BL...
  • Page 9 ENGLISH ELECTRICAL WIRING DIAGRAM HOSHIZAKI COMMERCIAL REFRIGERATOR RTW-180/186/177 OVER LOAD C10 SOCKET COMPRESSOR PROTECTOR FUSE 10A AMBIENT DEFROST O.L.P SENSOR SINGLE SENSOR PHASE 2 POLE 2 POLE 230V ~, 50HZ CONNECTOR CONNECTOR (WHITE) (BLUE) 3 POLE CONNECTOR (RED) RELAY BR BL...
  • Page 10 ENGLISH ELECTRICAL WIRING DIAGRAM HOSHIZAKI COMMERCIAL REFRIGERATOR FTW-120/126/156/127 OVER LOAD C10 SOCKET PROTECTOR COMPRESSOR FUSE 10A AMBIENT DEFROST O.L.P SENSOR SINGLE SENSOR PHASE 2 POLE 2 POLE 230V ~, 50HZ CONNECTOR CONNECTOR (BLUE) (WHITE) 3 POLE CONNECTOR (RED) RELAY BR BL...
  • Page 11 ENGLISH ELECTRICAL WIRING DIAGRAM HOSHIZAKI COMMERCIAL REFRIGERATOR FTW-120-L/126-L/156-L/127-L OVER LOAD C10 SOCKET PROTECTOR COMPRESSOR FUSE 10A AMBIENT DEFROST O.L.P SENSOR SINGLE SENSOR PHASE 2 POLE 2 POLE 230V ~, 50HZ CONNECTOR CONNECTOR (BLUE) (WHITE) 3 POLE CONNECTOR (RED) LED DRIVER...
  • Page 12 ENGLISH ELECTRICAL WIRING DIAGRAM HOSHIZAKI COMMERCIAL REFRIGERATOR FTW-150 /180 /186 /177 OVER LOAD C10 SOCKET PROTECTOR COMPRESSOR FUSE 10A AMBIENT DEFROST O.L.P SENSOR SINGLE SENSOR PHASE 2 POLE 2 POLE 230V ~, 50HZ CONNECTOR CONNECTOR (BLUE) (WHITE) 3 POLE CONNECTOR...
  • Page 13 ENGLISH ELECTRICAL WIRING DIAGRAM HOSHIZAKI COMMERCIAL REFRIGERATOR FTW-150-L/180-L/186-L/177-L OVER LOAD C10 SOCKET PROTECTOR COMPRESSOR FUSE 10A AMBIENT DEFROST O.L.P SENSOR SINGLE SENSOR PHASE 2 POLE 2 POLE 230V ~, 50HZ CONNECTOR CONNECTOR (BLUE) (WHITE) 3 POLE CONNECTOR (RED) LED DRIVER...

  • Page 14: Operating Instructions

    ENGLISH II. OPERATING INSTRUCTIONS IMPORTANT 15. Make sure all items are snug on each 1.Use the appliance only at the specified shelf. voltage. (As specified in the name plate). 16. Moist or fresh foods and those with a strong 2. Use standard socket. Do not use multi- smell like seafood should be wrapped up socket.

  • Page 15: Start

    ENGLISH 3. CABINET TEMPERATURE SETTING 1. START UP IMPORTANT 1) Plug in the unit. 1.The temperature range given below is only the adjustable range. The actual cabinet temperature depends on the ambient 2) The compressor and condenser fan motor will temperature and other conditions.
  • Page 16 ENGLISH W (Common) IMPORTANT 1.The displayed cabinet temperature The compressor stops when the cabinet is adjusted to be almost equal to the temperature reaches down to the set temperature, temperature at the center of the cabinet and starts when the cabinet temperature rises to the without foods.

  • Page 17: Defrost

    ENGLISH 4. DEFROST 6. SHUT DOWN Automatic defrost cycle efore shutting down the unit, move the stored foods into another . The automatically defrosts the evaporator hours 2)Unplug the unit or press up/power key from (refrigerator) or hours (freezer) after the controller for 3 seconds .

  • Page 18: Before Calling A Service Agent

    If the problem still (4) Too packed with foods beyond load line. exists, immediately contact an authorized Hoshizaki service company. 2. When contacting a service company, let them know the model name, serial number, date of installation (see warranty card) and state of the trouble.

  • Page 19: Disposal

    Hoshizaki warrants to the original owner/user that all Disposed with other household wastes throughout the Hoshizaki branded products shall be free of defects in European union. To prevent possible harm to the material and/or workmanship for the duration of the environment or human health from uncontrolled waste “warranty period”.
