Congratulations !

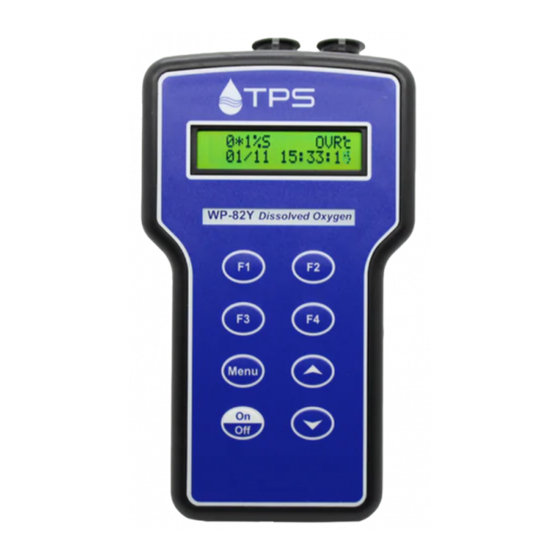

You have purchased the latest in Handheld Dissolved Oxygen-
Temperature instrumentation. We trust that your new WP-82Y will give
you many years of reliable service.
The WP-82Y is a breeze to operate. This manual has been designed to
help you get started, and also contains some handy application tips. If at
any stage you require assistance, please contact either your local TPS
representative or the TPS factory in Brisbane.
The manual is divided into the following sections:
1.
Table of Contents
Each major section of the handbook is clearly listed. Sub-sections
have also been included to enable you to find the information you
need at a glance.
2.
Introduction
The introduction has a diagram and explanation of the display and
controls of the WP-82Y. It also contains a full listing of all of the items
that you should have received with your WP-82Y. Please take the time
to read this section, as it explains some of items that are mentioned in
subsequent sections.
3.
Main Section
The main section of the handbook provides complete details of the
WP-82Y, including operating modes, calibration, troubleshooting,
specifications, and warranty terms.
4.
Appendices
Appendices containing background information and application notes
are provided at the back of this manual.
Model WP-82Y
Dissolved Oxygen,
Temp Meter
Version: 2.0
Date:
1-Jul-2012
Advertisement
Table of Contents
Troubleshooting
Related Manuals for TPS WP-82Y
Summary of Contents for TPS WP-82Y
- Page 1 Introduction The introduction has a diagram and explanation of the display and controls of the WP-82Y. It also contains a full listing of all of the items that you should have received with your WP-82Y. Please take the time to read this section, as it explains some of items that are mentioned in subsequent sections.
- Page 2 Page 2 TPS Pty Ltd ABN 82118101714 6 / 253 Leitchs Rd Brendale QLD 4500 Australia Phone : (07) 3205 8400 International : 61 7 3205 8400 : (07) 3205 8449 International : 61 7 3205 8449 Email : tps@tps.com.au...
-
Page 3: Table Of Contents
Page 3 Contents Introduction .................... 5 WP-82Y Display and Controls..............5 Unpacking Information ................7 Specifications ..................8 WP-82Y Menu Structure ..............10 Operating Modes ................11 Dissolved Oxygen Calibration ............12 Calibration Procedure ................12 Calibration & Measurement Notes ............13 Calibration Messages ................ - Page 4 Recharging the Battery ............. 35 Clock Function ................36 14.1 Setting the Clock ................36 14.2 Displaying or Hiding the Clock ............36 Initialising the WP-82Y .............. 37 Instrument firmware version number........37 Troubleshooting ................ 38 17.1 General Errors .................. 38 17.2 Dissolved Oxygen Troubleshooting ..........
-
Page 5: Introduction
Page 5 Introduction 1.1 WP-82Y Display and Controls... - Page 6 (section 5.1), setting the clock (section 14.1), setting the automatic logging period (section 10), and displaying GLP information (section 8.1). key is also used to initialise the WP-82Y at turn-on. See section 15. Switches the WP-82Y on and off. Display...
-
Page 7: Unpacking Information
Page 7 1.2 Unpacking Information Before using your new WP-82Y, please check that the following accessories have been included: Part No 1. WP-82Y Dissolved Oxygen-Temperature instrument ..... 123148/1 ....................123148/3 ....................123148/5 2. Oxygen sensor ..............123204 3. Oxygen sensor cable:... -
Page 8: Specifications
Page 8 1.3 Specifications Dissolved Oxygen ppM (mg/L) Ranges * ........ 0 to 20.00 ppM 20.0 to 40.0 ppM Resolution ......0.01 & 0.1 ppM Accuracy ........ 0.2% of full scale of selected range % Saturation Ranges * ........ 0 to 240.0 % Saturation 240 to 450 % Saturation Resolution ...... - Page 9 Page 9 Calibration Oxygen ........Zero in Sodium Sulphite (Na solution Span in Air Oxygen Sensor Span Range .. 65 to 200% Oxygen Sensor Zero Range ... 0 to 7.5% Temperature ......Use a reference thermometer. Temperature Sensor Offset ..-10.0 C to +10.0 Memory ........
-
Page 10: Wp-82Y Menu Structure
Page 10 2. WP-82Y Menu Structure A detailed breakdown of the menu system of the WP-82Y is shown below. This diagram provides a quick reference for the WP-82Y menu functions. F1:Cal. F1:Oxy F2:Temp (if ppM-Sal mode selected) F3:Sal... -
Page 11: Operating Modes
Page 11 3. Operating Modes The WP-82Y has four operating modes : Salinity-corrected ppM, uncorrected ppM, % Saturation, and % Gaseous. To select a mode… F3:Mode)… Select the Mode menu ( F1:ppM-Sal F2:ppM F3:%Sat F4:%Gas Press to select Salinity-corrected ppM mode. -
Page 12: Dissolved Oxygen Calibration
F1:Cal. F1:Oxy) (c) Select Oxygen Calibration. ( (d) Press the key to calibrate. (e) A “” in the display will be replaced by a decimal point after a successful air calibration. The WP-82Y is now calibrated and is ready for use. -
Page 13: Calibration & Measurement Notes
For optimum accuracy, set the altitude of atmospheric pressure before calibration. All calibration information is retained in memory when the WP-82Y is switched off, even when the battery is removed. This information can be recalled or printed later using the GLP function (see section 8). -
Page 14: Calibration Messages
For example… Air Cal. OK Span=100.0% If an Air calibration has failed, the WP-82Y will display the following message, and the failed span value of the sensor. For example… Air Cal. Fail Air Cal. Fail Span= 65.0%... -
Page 15: Temperature Calibration
Page 15 5. Temperature Calibration 5.1 Calibration Procedure Plug the Dissolved Oxygen/Temperature sensor into the Sensor socket. Switch the meter on. Place the sensor into a beaker of room temperature water, alongside a good quality mercury thermometer. Stir the sensor and the thermometer gently to ensure an even temperature throughout the beaker. -
Page 16: Calibration Notes
Page 16 5.2 Calibration Notes Temperature calibration information is retained in memory when the WP-82Y is switched off, even when the battery is removed. This information can be recalled or printed later using the GLP function (see section 8). Temperature does not need to be recalibrated unless the sensor is replaced or the meter is initialised. -
Page 17: Salinity Correction
Page 17 6. Salinity Correction Manual salinity correction for ppM Dissolved Oxygen readings is available on the WP-82Y. Select Salinity-corrected ppM mode (section 3). F1:Cal. F3:Sal). Select the Salinity correction calibration ( The current salinity correction value is now displayed. For example…... -
Page 18: Altitude Or Atmospheric Pressure Correction
7. Altitude or Atmospheric Pressure Correction Manual altitude or atmospheric pressure correction are available on the WP-82Y. Either one or the other may be selected at any one time or the system can be switched off. 7.1 Selecting Altitude or Pressure Correction Switch the WP-82Y off. -
Page 19: Changing The Altitude Or Pressure Correction Value
These values are satisfactory for the precision required for most Dissolved Oxygen measurements. If Altitude correction is switched on, an “A” is added to the WP-82Y display in normal measurement mode. If Atmospheric Pressure correction is switched on, a “P” is added to the WP-82Y display in normal measurement mode. -
Page 20: Good Laboratory Practices (Glp)
Page 20 8. Good Laboratory Practices (GLP) The WP-82Y keeps a record of the date and time of the last Dissolved Oxygen and Temperature calibrations as part of GLP guidelines. 8.1 To recall GLP information on the display Switch the meter on. - Page 21 Page 21 GLP Recall, continued… Press the key to sequentially scroll through the GLP information for all parameters. Press the key to scroll back to previous data. The sequence of information displayed is shown below. Press abort at any time. WP82Y V2.0 S1234 :More :Back...
-
Page 22: Failed Calibration
Page 22 8.2 Failed Calibration If calibration has failed, the GLP function will reset the date and time to zero. The WP-82Y still shows the results of the last successful calibration. For example… Oxy Zero 1.0% Oxy Span 100.0% @ 00/00/00 00:00... -
Page 23: Instrument Serial Number
Page 23 8.4 Instrument Serial Number In case the serial number that is fitted to the rear of the WP-82Y is removed or becomes illegible, it is also available on the WP-82Y display. The serial number is displayed at turn-on. For example…... -
Page 24: Notepad Function
Repeat steps 1 & 2 as often as required. The maximum number of readings that can be stored in the Notepad is 3600. 9.2 Recalling Records from the Notepad To recall records from the Notepad onto the WP-82Y display: F2:Notepad). 1. Select the Notepad menu ( 2. -
Page 25: Erasing Records From The Notepad
To erase all records from the Notepad: F2:Notepad). Select the Notepad menu ( Select F2:Erase from the menu. The WP-82Y now asks if you are sure that you wish to erase all records… Erase, You Sure? F1:Yes F2:No Press... -
Page 26: Automatic Data Logging
If the period was set to 05, followed by , then the WP-82Y will automatically log a record every 5 seconds. The WP-82Y will ask if the records are to be logged into the Notepad, or sent directly to the RS232 port. Press to log records into the Notepad (maximum of 3600 readings). - Page 27 Page 27 To start automatic logging, press in normal display mode. If the WP-82Y is logging into the Notepad, the display will look like this: 10.00ppM 25.0 Log# 1 12:00:00 The log number will increment and the WP-82Y will beep each time a reading is recorded.
-
Page 28: Rs232 Port
95 and later is optionally available (part number 130086). Once the data is saved to disk, the next problem is how to use it. The data sent by the WP-82Y is formatted in fixed-width columns that can be ® ®... -
Page 29: Commands
Page 29 11.5 Commands The following commands can be sent from a PC to the WP-82Y. Note that <cr> denotes carriage return and <lf> denotes a line feed. Action Command Notes Request current ?D<cr> Returns the current Dissolved data Oxygen, Temperature, date and time from the WP-82Y. -
Page 30: Data Format
Page 30 11.6 Data Format Data is returned to the RS232 Port by the WP-82Y in the following format. Please note that a “ ” shown anywhere in this section denotes one space. LLLLDDDDDDdddSSSSSSppKTTTTTToCAAAAAAaaadd/mm/yyhh:mm:ss where… LLLL is the Log Number. Maximum 4 characters, right justified. -
Page 31: Glp Data Format
GLP information is returned as 5 or 6 lines terminated by a carriage return. When using the “?G” command (section 11.5), the computer must respond with a character after receiving each line. For example… WP-82Y V2.0 S1234 @ 31/12/10 12:00 Oxygen Zero= 0.0%... -
Page 32: Importing Data Into Microsoft Excel
Page 32 11.8 Importing Data into Microsoft Excel The following procedure details the method for importing a WP-82Y text data file into Microsoft Excel and select File Open Start Microsoft Excel In the “Files of type:” pull-down box, choose “Text Files (*prn; *.txt;... - Page 33 Press “Next >” after the column breaks have been inserted. Simply press “Finish” at step 3 of the Text Import Wizard. TPS recommends that the data format for each column be set once the data is in spreadsheet format.
-
Page 34: Battery Saver Function
Page 34 12. Battery Saver Function The WP-82Y is equipped with a battery saver function. If no button has been pressed for five minutes, the unit beeps and flashes the display for 20 seconds, and then shuts off. This function can be switched off for continuous use. -
Page 35: Recharging The Battery
5.60 volts. The battery should be recharged at this point. If the battery is not recharged, the WP-82Y will switch itself off when the battery drops below 5.00 volts. To recharge the battery…... -
Page 36: Clock Function
Notes 1. The WP-82Y does not test for a valid day of the month when setting the clock (eg: attempting to enter 31/02/10 is not corrected). 2. The WP-82Y does test for leap years. -
Page 37: Initialising The Wp-82Y
: MUST ReCalibrate Oxygen Temp. (The “s” after WP-82Y is shown when the RS232 serial port option is fitted) The meter then displays Dissolved Oxygen and Temperature. Note that the decimal points have been replaced with a ““, to indicate that the unit requires re-calibration. -
Page 38: Troubleshooting
17.1 General Errors Error Message Possible Causes Remedy The EEPROM chip which The unit must be returned to Factory Cal. contains the factory TPS for service. Failed calibration information has failed. Handbook User calibration settings Re-calibrate the instrument. Memory Failed... -
Page 39: Dissolved Oxygen Troubleshooting
5. Sensor is faulty. Return sensor to factory for repair or replacement Blackened Silver Sensor has been exposed to Return to the TPS factory for anode wire sulphides or other chemical cleaning and service. poisoning. Tarnished or Sensor has been chemically... -
Page 40: Appendices: Dissolved Oxygen Sensor Theory
Page 40 18. Appendices: Dissolved Oxygen Sensor Theory The sensor used, is the amperometric type of Clark Sensor and is suitable for the measurement of oxygen pressures in the range 0 to 100 cm of mercury. While the sensor actually reads partial pressure of oxygen, the circuit is calibrated to be read in percentage saturation or parts per million (Milligrams/litre). -
Page 41: Sensor Storage
Page 41 18.2 Sensor Storage The Oxygen sensor should be kept moist when not in use to prevent the thin film of electrolyte behind the membrane from drying out. To achieve this, the sensor can be stored with the tip in water. For long term storage of the YSI sensor for several weeks or more, remove the membrane and empty the electrolyte. -
Page 42: Notes On Units Of Dissolved Oxygen
Page 42 18.3 Notes On Units Of Dissolved Oxygen The terms "Oxygen Concentration" and "Oxygen Partial Pressure" frequently give rise to some confusion. Oxygen Concentration is the absolute quantity of oxygen present per unit mass of the liquid. Oxygen Partial Pressure is the oxygen fraction of the total pressure of all of the gases present. -
Page 43: Equilibrium Conditions
(a) is achieved AUTOMATICALLY. (b) To provide the mass units (ppM) readout (so popular due to the Winkler process used in the past), the WP-82Y Meter has Solubility Correction via an additional temperature sensor in the sensor. (c) Salinity correction is provided by manual entry of the salinity of the sample. -
Page 44: Velocity Past The Membrane
Page 44 18.5 Velocity Past The Membrane Workers have shown that the relationship between the diffusion current (oxygen current) and the external velocity of the liquid is expotential. Some workers using thicker membranes have shown even less dependence of the diffusion current on liquid velocity. Because of the expotential nature of the relationship, very considerable changes in velocity have to be made before noticing any change in the diffusing current once the flow is sufficiently high. -
Page 45: Warranty
Please read service details on our ‘Service’ web page first: http://www.tps.com.au/service.htm TPS Pty Ltd has a reputation for prompt and efficient service. If you feel that this equipment is in need of repair, please re-read the manual. Sometimes, instruments are received for "repair" in perfect working order. - Page 46 Page 46 Please check that the following is enclosed with your equipment: A TPS ‘Service / Return Goods Form’ – see web link below: http://www.tps.com.au/Service/Service%20form_web.pdf Your full name Your company name Your email address or fax number ...
- Page 47 Before the sensors are despatched from TPS, they are fully tested. Therefore the sensor should be already filled, with a correctly fitted and tested membrane when you receive it. This is part of the TPS Quality Control Program. NOTE: During storage and transport after the sensor has been tested by TPS, some bubbles may appear behind the membrane.
- Page 48 The Silver anode will usually turn black when it is poisoned. When the anode is poisoned, the whole sensor is usually rendered unserviceable. TPS may be able to re-furbish the sensor, but this is not certain. 1. Incorrect fitting of the membrane causes poisoning of the sensor.
