ZP1-F Series Quick Installation Guide

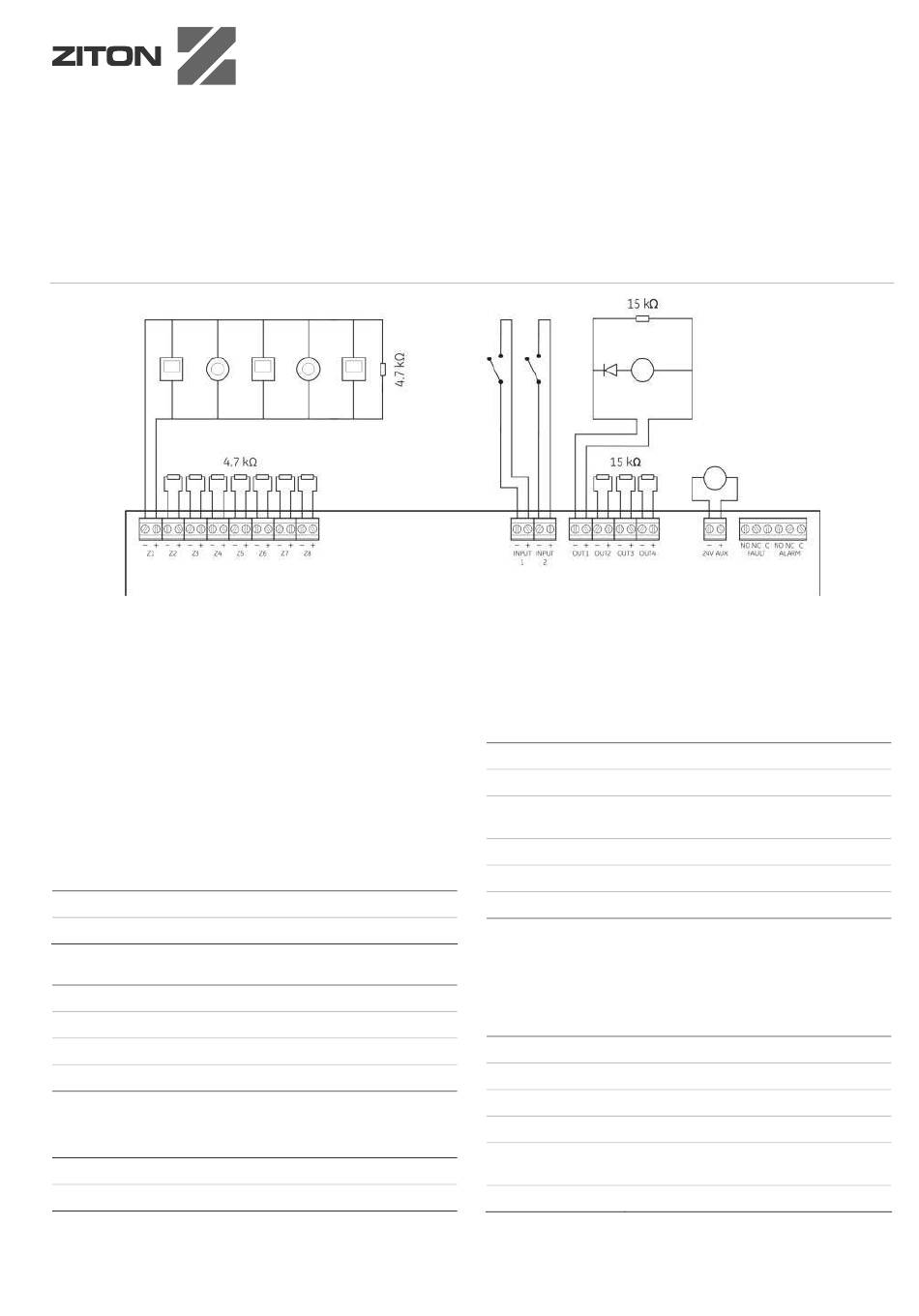

Figure 1: Zone and device connections
Overview
This document provides quick installation information for
your product. For detailed installation information,
including EN 54-13, intrinsically safe, and BS 5839-1
operating mode requirements, see the installation
manual.
Zones and zone devices
Connect zone wires and devices as shown in Figure 1.
Line resistance
Mixed zones 40 Ω max.
Automatic / manual zones 55 Ω max.
Detectors and manual call points per zone [1]
Ziton Z600 series detectors 32 max.
EST E6 series 32 max.
Other detectors 32 max.
Manual call points 32 max.
[1] Or quantities defined by local codes and standards
Manual call point resistance [1]
Mixed zone 100 Ω
Manual zone 100 to 680 Ω
[1] Resistance must be rated at 1 W min.
P/N 501-415603-4-20 • REV 2.0 • ISS 06JUL11
www.acornfiresecurity.com
Inputs and outputs
The function of inputs and outputs is defined by the
operating mode.
Inputs
EN 54-2
EN 54-2 Evacuation
EN 54-2 Scandinavia
BS 5839-1
NBN S21-100
NEN 2535
[1] Four- and eight-zone control panels only.
Input circuits should have a maximum resistance of
100 Ω (including any cable resistance).
Sounder outputs
EN 54-2
EN 54-2 Evacuation
EN 54-2 Scandinavia
BS 5839-1
NBN S21-100
NEN 2535
www.acornfiresecurity.com
Remote reset
Remote reset
Fire routing / extended fire
routing delay [1]
Class change
Remote reset
Fire routing inhibit delay
OUT1, OUT2, and OUT3
OUT1, OUT2, OUT3, and OUT4
OUT1, OUT2, and OUT3
OUT1, OUT2, OUT3, and OUT4
OUT1 and OUT2 (Evacuation sounders)
OUT3 and OUT4 (Warning sounders)
OUT1 and OUT2
Delays off
Delays off
Delays off
Delays off
Delays off
Delays off
