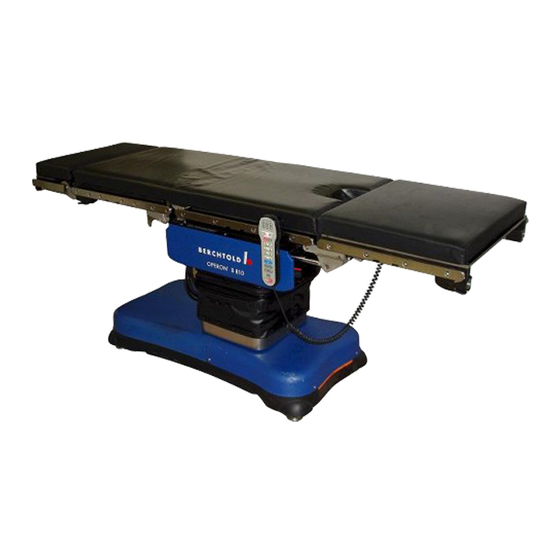

OPERON
B 810
®
INSTALLATION & OPERATING MANUAL

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the OPERON B 810 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Berchtold OPERON B 810

Summary of Contents for Berchtold OPERON B 810

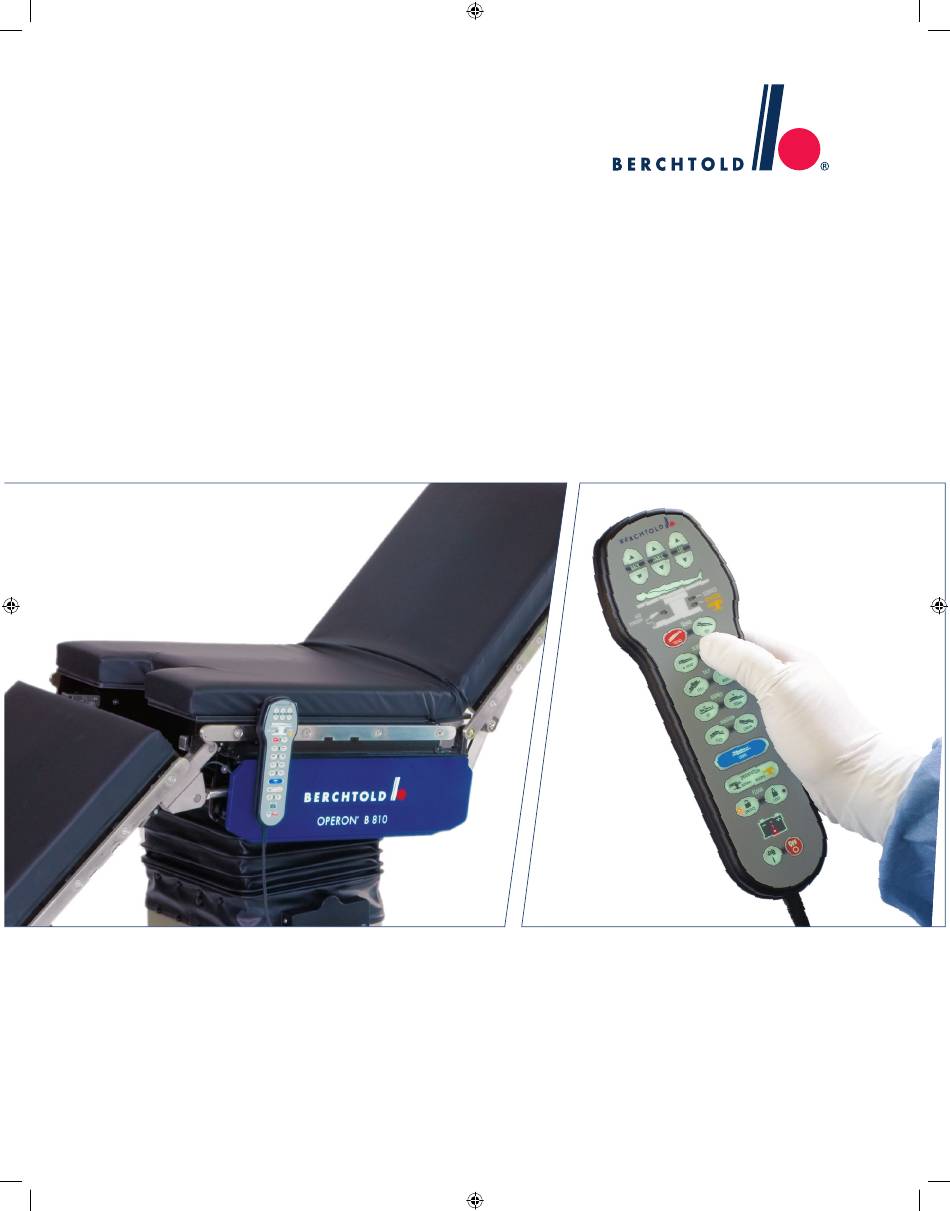

  • Page 1 OPERON B 810 ® INSTALLATION & OPERATING MANUAL...
  • Page 2 OPERON B 810 Uncrating Instructions 60-000-0002 OPERON B 810 Service and Parts Manual 70-000-0027 This manual contains proprietary information of Berchtold Corp. It shall not be reproduced in whole or in part without the written permission of Berchtold Corp. ETL/CETL LISTED TO IEC 60601-1. MEDICAL ELECTRICAL EQUIPMENT ®...

  • Page 3: Table Of Contents

    OPERON B 810 SURGICAL TABLE TABLE OF CONTENTS TABLE OF CONTENTS SPECIAL SAFETY INSTRUCTIONS........................S-1 SAFETY SYMBOLS ............................S-1 USE CONDITIONS............................S-1 PINCH POINTS..............................S-1 CONTROL PENDANTS ........................... S-2 LOAD CAPACITY............................S-2 PATIENT POSITIONING ..........................S-3 OPERATION ..............................S-4 TABLE MOVEMENT WITH PATIENT ......................S-4 ENVIRONMENTAL REQUIREMENTS......................
  • Page 4 OPERON B 810 SURGICAL TABLE TABLE OF CONTENTS FOOTSWITCH (OPTIONAL) ........................... 2-7 MANUAL FOOT PUMP............................ 2-7 AUXILIARY HAND PENDANT ........................2-8 AUXILIARY CONTROL DRAWER ........................ 2-8 OPERATING INSTRUCTIONS ..........................3-2 PINCH POINTS..............................3-2 LOAD CAPACITY............................. 3-3 PATIENT ORIENTATION ..........................3-3 NORMAL ORIENTATION ........................
  • Page 5 LOCKING LEVERS ........................1-5 FIGURE 1-7 HEADREST ..........................1-5 FIGURE 1-8 CHAIR POSITION........................1-6 FIGURE 2-1 OPERON B 810 SURGICAL TABLE ..................2-1 FIGURE 2-2 BASE COMPONENTS POWER SUPPLY ................2-2 FIGURE 2-3 PRODUCT IDENTIFICATION AND FUSE INFORMATION LABEL .......2-3 FIGURE 2-4 PRIMARY HAND PENDANT AND FOOTSWITCH CONNECTOR BOX......2-3 FIGURE 2-5 HAND PENDANT POWER-ON INDICATORS..............2-4...
  • Page 6 OPERON B 810 SURGICAL TABLE TABLE OF CONTENTS TABLE OF TABLES TABLE 2-1. TECHNICAL DATA........................2-1 TABLE 3-1. SOFTWARE-CONTROLLED LIMITS ................... 3-5 TABLE 4-1. OPERATOR TROUBLESHOOTING GUIDE ................ 4-2 TABLE 5-1. RECOMMENDED MAINTENANCE SCHEDULE..............5-1 Rev. 2 70-000-0026...

  • Page 7: Special Safety Instructions

    WARNING the presence of flammable anesthetics. check that the patient and staff are clear of pinch The OPERON B 810 table is designed points before and while the table is in motion. Refer for use in non-hazardous anesthetizing to Figure 3-1 for details.

  • Page 8: Control Pendants

    OPERON B 810 SURGICAL TABLE SPECIAL SAFETY INSTRUCTIONS CONTROL PENDANTS CAUTION — The auxiliary hand pendant does not have the following NOTE — The primary hand pendant CAUTION functions: flex, chair, return to level, or can be configured for normal or reverse NOTE slide.

  • Page 9: Patient Positioning

    OPERON B 810 SURGICAL TABLE SPECIAL SAFETY INSTRUCTIONS In normal orientation, the In reverse orientation, the patient’s pelvis must not extend patient’s pelvis must not extend beyond the end of the SEAT beyond the end of the BACK Section for full slide capability...

  • Page 10: Operation

    OPERON B 810 SURGICAL TABLE SPECIAL SAFETY INSTRUCTIONS OPERATION WARNING — Failure to securely lock the leg section into place may result in WARNING— The table should always WARNING patient injury. Always check the be locked to the floor whenever a...

  • Page 11: Checks And Adjustment

    Berchtold Corporation assumes no liability for table performance when used with accessories designed by CAUTION — Protect the top and others for use on Berchtold equipment, or damage bottom surfaces from nicks and CAUTION resulting to Berchtold equipment resulting from the scratches.

  • Page 12: Warning Labels

    OPERON B 810 SURGICAL TABLE SPECIAL SAFETY INSTRUCTIONS FIGURE S-2 shows the patient safety warning label WARNING LABELS attached to the table. The label is located on the base at the foot end. Drawing 306651 Rev. 1 FIGURE S-2 PATIENT SAFETY WARNING LABEL WARNING —...

  • Page 13: Installation Instructions

    • Flathead screwdriver • The OPERON B 810 contains two (2) 12V 28 Amp- Pliers hour Sealed Lead Acid (SLA) batteries. The batteries are connected in series to provide 24V for the table’s electrical system. The batteries are fused to prevent 70-000-0026 Rev.

  • Page 14: Unpacking

    OPERON B 810 SURGICAL TABLE INSTALLATION INSTRUCTIONS 4. Check contents of smaller carton: UNPACKING Primary Hand Pendant WARNING — POSSIBILITY OF b. Headrest INJURY: This table weighs Power Cord WARNING approximately 715 pounds (325 kg). d. Installation and Operator Manual At least two persons are required to 5.

  • Page 15: Figure 1-2 Shipping Clamps

    OPERON B 810 SURGICAL TABLE INSTALLATION INSTRUCTIONS Remove screws that secure bracing FIGURE 1-2 SHIPPING CLAMPS 11. Align the ramp on the side of the shipping skid 12. Remove the slats beneath the base. (FIGURE 1-3). Shipping Skid Ramp 6-1-0220-26_1...

  • Page 16: Installation

    OPERON B 810 SURGICAL TABLE INSTALLATION INSTRUCTIONS 13. Press the UNLOCK button on the pendant. This WARNING — POSSIBILITY OF will raise the feet and allow the casters to rest on TIPPING: The table will roll WARNING the pallet. freely with the legs unlocked. At least two people are required to CAUTION —...

  • Page 17: Installing The Headrest

    OPERON B 810 SURGICAL TABLE INSTALLATION INSTRUCTIONS To remove the pads, pull up at one corner and peel CHECKS AND ADJUSTMENT them from the tabletop. WARNING — The installation checkout If pad replacement is necessary, replace with is necessary to ensure that handling WARNING Berchtold replacement pads.

  • Page 18: Setting The Table Levels

    OPERON B 810 SURGICAL TABLE INSTALLATION INSTRUCTIONS • first installed and adjusted if necessary. The level Chair position enables formation of a chair settings also should be checked periodically and reset (see FIGURE 1-8). whenever necessary. seat back There are two ways to set the zero (or level) position Initial for each articulation.

  • Page 19: General Information

    A leg extension can be added to extend the tabletop surface. GENERAL DESCRIPTION The Berchtold OPERON B 810 surgical table is a RADIOLUCENT TABLE TOP AND PADS remote controlled, full-function design offering a The tabletop surface is made from electrically high level of patient positioning and imaging conductive radiolucent panels.

  • Page 20: Power Supply

    OPERON B 810 SURGICAL TABLE GENERAL INFORMATION or OFF position. The table can remain plugged into POWER SUPPLY AC indefinitely without damaging the batteries. WARNING — Repeated breaker The battery indicator on the primary hand pendant tripping or fuse replacement may WARNING displays the battery charge status.

  • Page 21: Floor Lock System

    OPERON B 810 SURGICAL TABLE GENERAL INFORMATION BERCHTOLD CORP. 1950 HANAHAN RD. Fuse Product N. CHARLESTON, SC 29406 Information 8A/125V FOR 115V / 4A/250V FOR 230V 3041554 Identification CONFORMS TO UL STANDARD 60601-1 5mm X 20mm SLO BLO CERTIFIED TO CSA STANDARD 60601.1...

  • Page 22: Hand Pendant Operation

    OPERON B 810 SURGICAL TABLE GENERAL INFORMATION Hand Pendant Operation To conserve battery power, the hand pendant will automatically go into SLEEP MODE (backlighting will The table may be turned on by pressing the hand turn off) after 90 minutes of non-use. This period can pendant ON button or by pressing any of the hand be changed through the table’s Service Software...

  • Page 23: Primary Hand Pendant Indicators

    OPERON B 810 SURGICAL TABLE GENERAL INFORMATION Primary Hand Pendant Indicators See FIGURE 2-6 for location of indicators 1. AUX PENDANT (orange) — Auxiliary hand pendant drawer is open. The primary hand pendant will still be enabled if the auxiliary hand pendant drawer is open.

  • Page 24: Primary Hand Pendant Functions

    OPERON B 810 SURGICAL TABLE GENERAL INFORMATION Primary Hand Pendant Functions NOTE — If AC power is not present, the auto-shutdown feature will turn the NOTE WARNING — The primary hand control pendant off after about ninety pendant is configured for normal patient minutes of non-use.

  • Page 25: Footswitch (Optional)

    OPERON B 810 SURGICAL TABLE GENERAL INFORMATION FOOTSWITCH (OPTIONAL) A footswitch control is available for procedures where the surgeon is normally seated at the pelvic end of the patient (FIGURE 2-8). Footswitch functions include: • Trendelenburg/Reverse Trendelenburg • Tilt Left/Tilt Right •...

  • Page 26: Auxiliary Hand Pendant

    OPERON B 810 SURGICAL TABLE GENERAL INFORMATION 3. Continue to push the pedal into the table until it snaps into the retracted position. AUXILIARY HAND PENDANT The yellow auxiliary hand pendant is located in the auxiliary hand pendant control drawer at the head end of the base.

  • Page 27: Operating Instructions

    Load Capacity: Lifting and Articulation 600 lbs. (273 kg) Berchtold Corp. will, upon request, provide circuit The service and parts manual (part number 70-000- diagrams, component part lists, descriptions, and 0027) can be ordered by calling the phone number other information needed to assist service personnel on page 5-3.

  • Page 28: Pinch Points

    Column shields to base cover Due to the variety of table positions attainable Base to floor with the OPERON B 810 table, pinch or crushing Floor feet to base points exists. The OR staff must be trained to Floor feet to floor...

  • Page 29: Load Capacity

    OPERON B 810 SURGICAL TABLE OPERATING INSTRUCTIONS Back Seat foot pump and the auxiliary hand pendant until the Section situation is corrected. LOAD CAPACITY Manual WARNING — Overloading may result Pump Pedal in tipping of the table or failure of the WARNING table sections to move.

  • Page 30: Operation

    OPERON B 810 SURGICAL TABLE OPERATING INSTRUCTIONS TABLE MOVEMENT WITH PATIENT WARNING — If the table needs to be moved with a patient on the table, it is WARNING very important to follow the following instructions to prevent patient injury or equipment damage.

  • Page 31: Function Priority

    TABLE MOVEMENT LIMITS green LOCK indicator on the control pendant will light when the floor feet are locked. Due to the OPERON B 810 table’s extensive articulation range, some functions can not be 3. Select the desired function by pressing and combined at their maximum capability.
  • Page 32 OPERON B 810 SURGICAL TABLE OPERATING INSTRUCTIONS TABLE 3-1. SOFTWARE-CONTROLLED LIMITS Position of Function Resulting Function Limit Back Section raised over 26° Kidney elevator cannot be operated Limits Back section to maximum of 26° above horizontal Any raising of the kidney...

  • Page 33: User-Controlled Limits

    OPERON B 810 SURGICAL TABLE OPERATING INSTRUCTIONS User-Controlled Limits HEADREST CAUTION — Watch the table at all WARNING — Do not mount knee times while performing multiple crutches or leg holders to the headrest CAUTION WARNING articulations. Stop table movements side rail.

  • Page 34: Removable Leg Section

    OPERON B 810 SURGICAL TABLE OPERATING INSTRUCTIONS REDUNDANT LEG SECTION LOCK REMOVABLE LEG SECTION WARNING — Failure to securely lock For added security, the removable leg section includes the leg section into place may result in a locking mechanism as pictured below: WARNING patient injury.

  • Page 35: Footswitch (Optional)

    OPERON B 810 SURGICAL TABLE OPERATING INSTRUCTIONS FOOTSWITCH (OPTIONAL) 6-1-0220-10_1 CAUTION — The Footswitch’s electrical connections are CAUTION resistant to fluid intrusion, but if fluid drainage is anticipated, the Table Up/ footswitch should be protected by Table Down wrapping it with a clear disposable footswitch bag.

  • Page 36: Backup Instructions

    OPERON B 810 SURGICAL TABLE BACKUP INSTRUCTIONS BACKUP INSTRUCTIONS It is highly recommended that all operators become familiar with the following backup instructions and with the operation of the auxiliary hand pendant and manual foot pump before using the table.
  • Page 37 Check the 2 from the top fuse in the drawer (FIGURE 2-2). Replace if blown. Contact Berchtold Service to determine the cause. The pump or the controller may have failed. Contact Berchtold Service for repair. The pump motor functions, but no Check the primary pendant’s solenoid fuse, the 3...

  • Page 38: Maintenance

    OPERON B 810 SURGICAL TABLE MAINTENANCE MAINTENANCE Berchtold Corp. will make available on request circuit diagrams, component part lists, descriptions and other PERIODIC MAINTENANCE information needed to assist technical personnel in the Regularly scheduled preventive maintenance and repair of the surgical table. Much of this information inspection is essential for continued reliable operation.

  • Page 39: Cleaning And Disinfection

    Rinse and wipe dry with a soft lint-free cloth. NOTE — The OPERON B 810, with all NOTE — DO NOT use iodophors; covers installed, is splash proof in staining will result.

  • Page 40: Hand Pendants

    NOTE The replacement parts listed in this manual may be maintain conductivity. ordered from your Berchtold representative or you may call one of the 800 phone numbers shown at left. NOTE — Do not put pads on tabletop The following is a partial list of parts and accessories.
  • Page 41 OPERON B 810 SURGICAL TABLE MAINTENANCE THIS PAGE INTENTIONALLY BLANK Rev. 2 70-000-0026...
  • Page 42 OPERATOR’S MANUAL PUBLICATION HISTORY This publication describes the equipment as of the date of issue listed below. BERCHTOLD Corporation reserves the right to make changes in design or specifications at any time without notice. If you find any difference between the equipment you received and the components or assemblies described in this publication, contact BERCHTOLD Customer Service at 800-243-5135 for information.
  • Page 43 SAFE • INNOVATIVE • BERCHTOLD BERCHTOLD Corporation 1950 Hanahan Road Charleston, SC 29406 Phone: 843-569-6100 Phone: 800-243-5135 Fax: 843-569-6133 Manual No. 70-000-0026...
