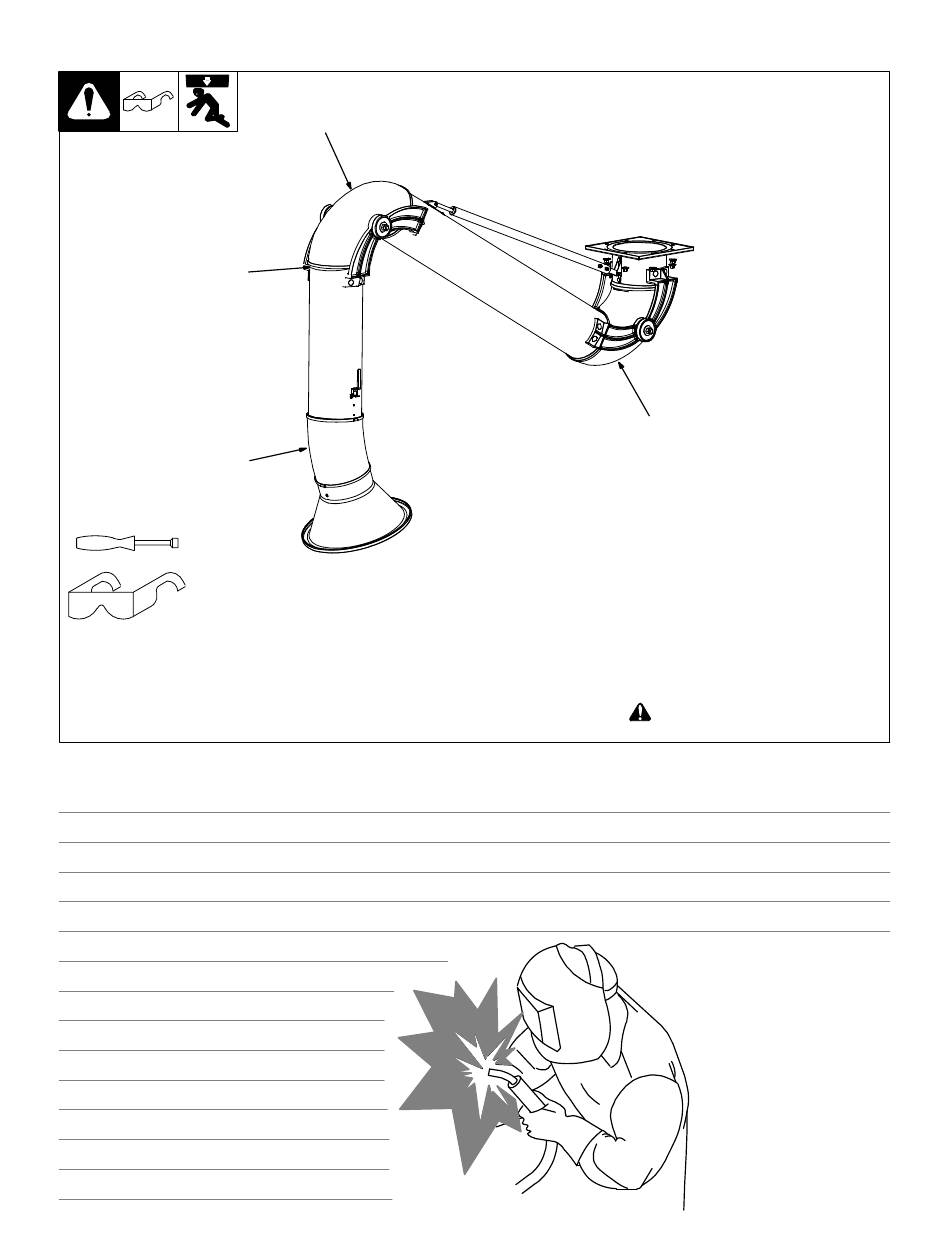

F. Installing Flexible Duct
Tools Needed:
5/16 in.
1 12 in. (30.5 cm) Flexible Duct
2 24 in. (61 cm) Flexible Duct
3 30 in. (76 cm) Flexible Duct
4 Hose Clamp
Three sections of flexible duct are provided
Notes
OM-246 877 Page 26
3
4
1
to connect the joints. The three lengths in-
cluded are 12 in., 24 in., and 30 in. The 12
in. section should already be in place be-
tween the upper tube and hood (see Sec-
tion 5-8E). Install the 30 in. piece at the
middle joint and the 24 in. piece between
2
the base assembly and the lower tube. Pull
flex duct over tubes and securely tighten
hose clamps.
!
Secure both ends of flexible ducts
with hose clamps.
