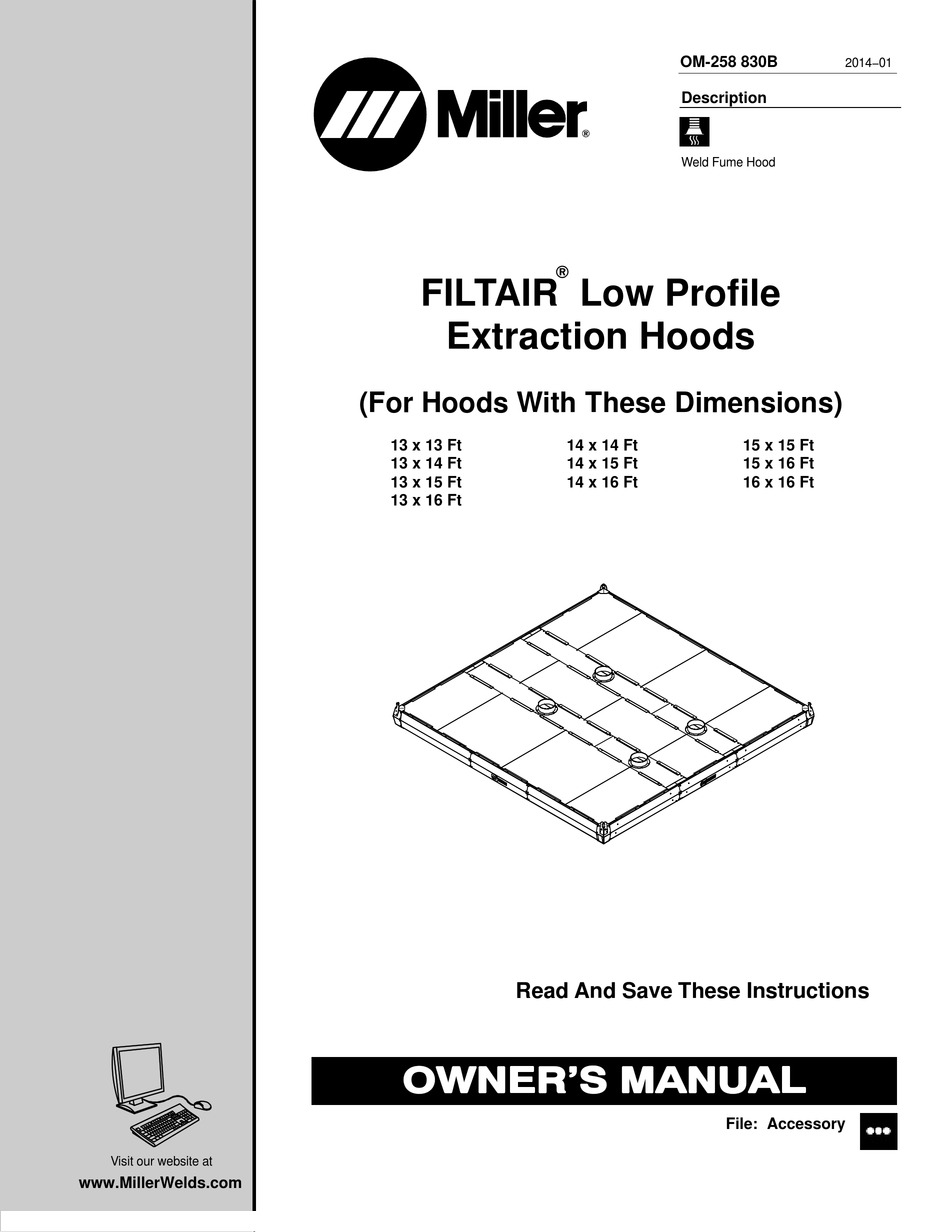

  • Page 1 OM-258 830B 2014−01 Description Weld Fume Hood FILTAIR Low Profile Extraction Hoods (For Hoods With These Dimensions) 13 x 13 Ft 14 x 14 Ft 15 x 15 Ft 13 x 14 Ft 14 x 15 Ft 15 x 16 Ft 13 x 15 Ft 14 x 16 Ft 16 x 16 Ft...
  • Page 2 We know you don’t have time to do it any other way. That’s why when Niels Miller first started building arc welders in 1929, he made sure his products offered long-lasting value and superior quality.

  • Page 3: Table Of Contents

    TABLE OF CONTENTS SECTION 1 − SAFETY PRECAUTIONS - READ BEFORE USING ....... . . 1-1.
  • Page 4 Notes OM-258 830 Page 4...

  • Page 5: Section 1 − Safety Precautions - Read Before Using

    SECTION 1 − SAFETY PRECAUTIONS - READ BEFORE USING fume 2013−09 Protect yourself and others from injury — read, follow, and save these important safety precautions and operating instructions. 1-1. Symbol Usage DANGER! − Indicates a hazardous situation which, if Indicates special instructions.

  • Page 6: Arc Welding And Plasma Cutting Hazards

    FALLING EQUIPMENT can injure. FIRE OR EXPLOSION hazard. D Use equipment of adequate capacity to lift and D Do not install or place unit on, over, or near support unit. combustible surfaces. D If using lift forks to move unit, be sure forks are D Do not install unit near flammables.
  • Page 7 D Do not weld or cut where the atmosphere may contain flammable FUMES AND GASES can be hazardous. dust, gas, or liquid vapors (such as gasoline). D Connect work cable to the work as close to the welding or cutting Welding and cutting produces fumes and gases.

  • Page 8: Additional Symbols For Installation, Operation, And Maintenance

    ELECTRIC AND MAGNETIC FIELDS (EMF) NOISE can damage hearing. can affect Implanted Medical Devices. Noise from some processes or equipment can D Wearers of Pacemakers and other Implanted damage hearing. Medical Devices should keep away. D Wear approved ear protection if noise level is D Implanted Medical Device wearers should consult their doctor high.

  • Page 9: California Proposition 65 Warnings

    D Have the installation regularly checked and maintained. READ INSTRUCTIONS. D Keep high-frequency source doors and panels tightly shut, keep spark gaps at correct setting, and use grounding and shielding to D Read and follow all labels and the Owner’s minimize the possibility of interference.

  • Page 10: Section 2 − Mesures De Sécurité − Extraction Des Fumées − À Lire Avant Utilisation

    SECTION 2 − MESURES DE SÉCURITÉ − EXTRACTION DES FUMÉES − À LIRE AVANT UTILISATION fume_2013−09_fre Se protéger et protéger les autres contre le risque de blessure — lisez, appliquez et rangez en lieu sûr ces consignes importantes de sécurité et d’utilisation. 2-1.

  • Page 11: Dangers Du Soudage À L'arc Et Du Coupage Au Plasma

    nettoyants, les consommables, les produits de refroidissement, les Les PIÈCES MOBILES peuvent dégraisseurs, les flux et les métaux. causer des blessures. D L’extracteur de fumées doit être utilisé avec le bras d’extraction, les D S’abstenir de toucher des organes mobiles tels tuyaux, le filtre et les autres composants recommandés par le fabricant.
  • Page 12 D Les câbles doivent être exempts d’humidité, d’huile et de graisse; D Ne soudez pas ou ne coupez pas des métaux enrobés tels que des protégez−les contre les étincelles et les pièces métalliques métaux galvanisés, contenant du plomb ou de l’acier plaqué au chaudes.

  • Page 13: Dangers Supplémentaires En Relation Avec L'installation, Le Fonctionnement Et La Maintenance

    D Avant de souder, retirer toute substance combustible de vos po- D Le couvercle du détendeur doit toujours être en place, sauf lorsque ches telles qu’un allumeur au butane ou des allumettes. la bouteille est utilisée ou qu’elle est reliée pour usage ultérieur. D Une fois le travail achevé, assurez−vous qu’il ne reste aucune D Utiliser les équipements corrects, les bonnes procédures et suffi- trace d’étincelles incandescentes ni de flammes.
  • Page 14 D Tenir l’équipement (câbles et cordons) à distance des véhicules Les PIÈCES MOBILES peuvent mobiles lors de toute opération en hauteur. causer des blessures. D Suivre les consignes du Manuel des applications pour l’équation D S’abstenir de toucher des organes mobiles tels de levage NIOSH révisée (Publication Nº94–110) lors du levage manuelle de pièces ou équipements lourds.

  • Page 15: Proposition Californienne 65 Avertissements

    LE SOUDAGE À L’ARC ET LE RAYONNEMENT HAUTE COUPAGE PLASMA risquent de FRÉQUENCE (H.F.) risque provoquer des interférences. provoquer des interférences. D Le rayonnement haute fréquence (H.F.) peut D L’énergie électromagnétique peut gêner le provoquer des interférences avec les équi- fonctionnement d’appareils électroniques sen- pements de radio−navigation et de com- sibles comme des ordinateurs et des équi-...

  • Page 16: Section 3 − Specifications

    201−5/8 in. (512 cm) 17−5/8 in. (45 cm) 995 lb (451 Kg) The 14 x 14 ft model is shown. Height Front View Perimeter Bracket With Miller Label Perimeter Bracket Perimeter Bracket With Miller Label With Miller Label Length Width...
  • Page 17 B. Identifying Panel Length Hood Size Stock Number Length A Length B Length C Length D Length E Length F 13 Ft x 13 Ft 301053 4 Ft (48 in.) 5 Ft (60 in.) 4 Ft (48 in.) 4 Ft (48 in.) 5 Ft (60 in.) 4 Ft (48 in.) 13 Ft x 14 Ft...

  • Page 18: Section 4 − Assembly

    SECTION 4 − ASSEMBLY 4-1. Selecting A Location The 14 x 14 ft model is shown. 301054-1 Only qualified persons should in- Do not use equipment to support Moving The Equipment stall, operate, maintain, and repair site-installed ducts, interconnecting Lifting Eye this unit.
  • Page 19 Lifting Bracket Perimeter Bracket Mounting Plate side perimeter brackets. Corner End Perimeter Bracket A (With Miller Left Post Support Bracket Assemble left side perimeter brackets but Label) do not attach them to right side and end Right Post Support Bracket perimeter brackets.
  • Page 20 D. Assembling Extractor Housing See Section4-3B for installation The 14 x 14 ft model is shown. hardware torque values. Long Extractor Side Bracket Short Extractor Side Bracket Long Extractor Tray Short Extractor Tray Coupling Bracket Left Extractor Housing Mounting Bracket Right Extractor Housing Mounting Bracket Angle Flange Adapter Duct...
  • Page 21 E. Attaching Extractor Housing And Left Side Perimeter Bracket See Section 4-3B for installation The 14 x 14 ft model is shown. hardware torque values. Extractor Housing Install squaring Right Side Perimeter Brackets bracket beneath top Use 5/16 x 3/4 in. screws and nuts to at- of perimeter bracket.
  • Page 22 F. Attaching Top Cover Support Brackets The 14 x 14 ft model is shown. Install cross and side support mounting brackets beneath perimeter bracket, and also beneath extractor. 301054-5 / Ref. 300963-2A side support brackets and center support cross and side support brackets to extrac- See Section 4-3B for installation hard- bracket to each cross support bracket as tor sides.
  • Page 23 G. Attaching Top Cover Mounting Brackets And Top Covers See Section 4-3B for installa- The 14 x 14 ft model is shown. tion hardware torque values. Perimeter Mounting Bracket Extractor Mounting Bracket Top Cover Install top covers in appropriate loc- ations on perimeter assembly as shown.
  • Page 24 Lifting Extraction Hood Assembly Lift only from the lifting eyes located at the top of the unit. The 14 x 14 ft model is shown. Be sure location is clear of all obstructions, including util- ity lines and roof overhangs. See Section 4-3B for installa- tion hardware torque values.

  • Page 25: Section 5 − Maintenance

    SECTION 5 − MAINTENANCE 5-1. Maintenance Schedule Maintain more often during severe conditions. n = Check Z = Change ~ = Clean l = Replace Reference * To be done by Factory Authorized Service Agent Each n Extraction System Every See Section Months n l Damaged Or...
  • Page 26 Notes OM-258 830 Page 22...

  • Page 27: Section 6 − Parts List

    SECTION 6 − PARTS LIST Group Name Hood Size (Feet) 13 x 13 13 x 15 Group 1 14 x 15 15 x 15 13 x 14 13 x 16 14 x 14 Group 2 14 x 16 15 x 16 16 x 16 OM-258 830 Page 23...
  • Page 28 Hardware is common and not available unless listed. 301053002-7 Figure 6-1. Extraction Hood Assembly − Group 1 OM-258 830 Page 24...
  • Page 29 Quantity 13 x 13 13 x 15 14 x 15 15 x 15 Part Item Description 301053 301053002 301054001 301055 Figure 6-1. Extraction Hood Assembly − Group 1 254703 Brkt, Mtg Lift Eye +257821001 Assy, Corner Brkt (Includes) 255476 Warning Label 257831 Brkt, Mtg Extrac Tray Left 257832...
  • Page 30 Quantity 13 x 13 13 x 15 14 x 15 15 x 15 Part Item 301053 301053002 301054001 301055 Description Figure 6-1. Extraction Hood Assembly − Group 1 (continued) 257824 Brkt, Extrac Tray 4Ft 259099 Brkt, Extrac Tray 5Ft 257824 Brkt, Extrac Tray 4Ft 259099 Brkt, Extrac Tray 5Ft...
  • Page 31 Notes OM-258 830 Page 27...
  • Page 32 Hardware is common and not available unless listed. 301053001−7 Figure 6-2. Extraction Hood Assembly − Group 2 OM-258 830 Page 28...
  • Page 33 Quantity 13 x 14 13 x 16 14 x 14 14 x 16 15 x 16 16 x 16 Part Item 301053001 301053003 301054 301054002 301055001 301056 Description Figure 6-2. Extraction Hood Assembly − Group 2 Brkt, Mtg Lift Eye 254703 Assy, Corner Brkt (Includes) +257821001...
  • Page 34 Quantity 13 x 16 14 x 14 14 x 16 15 x 16 Part 13 x 14 16 x 16 Item 301053003 301054 301054002 301055001 Description 301053001 301056 Figure 6-2. Extraction Hood Assembly − Group 2 (continued) 257824 Brkt, Extrac Tray 4Ft 259099 Brkt, Extrac Tray 5Ft 257827...
  • Page 35 Effective January 1, 2014 (Equipment with a serial number preface of ME or newer) This limited warranty supersedes all previous Miller warranties and is exclusive with no other guarantees or warranties expressed or implied. Warranty Questions? LIMITED WARRANTY − Subject to the terms and conditions below, 6 Months —...
  • Page 36 Contact the Delivering Carrier to: File a claim for loss or damage during shipment. For assistance in filing or settling claims, contact your distributor and/or equipment manufacturer’s Transportation Department. © ORIGINAL INSTRUCTIONS − PRINTED IN USA 2014 Miller Electric Mfg. Co. 2014−01...
