Air Control Devices: Air Regulating Kits
User Instructions for 3M™ Airline Adapter Kit W-3060 and
Air Regulating Valve Kit W-3061 (with W-3062 Valve), and
Air Regulating Kit W-3197 (with W-3195 Low Pressure
Connector)
Important: Keep these User Instructions for reference
This product helps protect against certain airborne contaminants. Misuse may result in
sickness or death. For proper use, see supervisor, User Instructions, or call 3M in U.S.A.,
1-800-243-4630. In Canada, call Technical Service at 1-800-267-4414.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the W-3060 and is the answer not in the manual?

Questions and answers

Related Manuals for 3M W-3060

Summary of Contents for 3M W-3060

  • Page 1 Important: Keep these User Instructions for reference This product helps protect against certain airborne contaminants. Misuse may result in sickness or death. For proper use, see supervisor, User Instructions, or call 3M in U.S.A., 1-800-243-4630. In Canada, call Technical Service at 1-800-267-4414.

  • Page 2: General Safety Information

    To meet the NIOSH requirement 42 CFR 84, subpart 84.150 for minimum and maximum airflow (4 to 15 cfm, 115 to 425 lpm), these air control devices approved for use with the 3M™ 7000 or 6000DIN Series Full Facepieces must be operated within the supply pressure ranges and hose lengths stated in the “Specifications”...

  • Page 3: Use Instructions And Limitations

    Do not use if any parts are missing or damaged. Do not use with parts or accessories other than those manufactured by 3M as described in these User Instructions or on the NIOSH approval label for the respirator that you are using. Failure to do so may adversely affect respirator performance and result in sickness or death.

  • Page 4: General Description

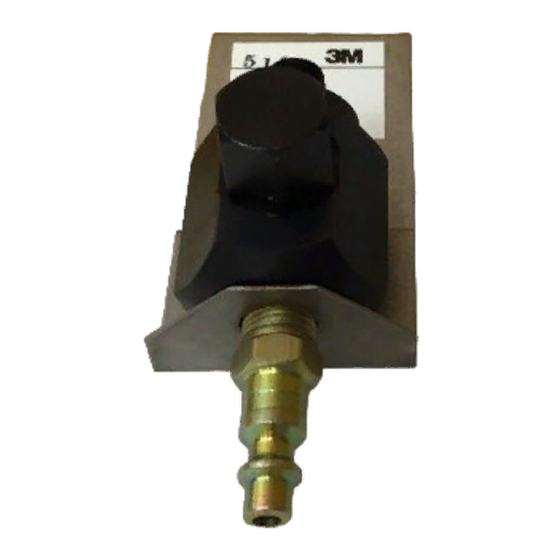

    W-3061 Air Regulating Kit This air regulating kit is designed to provide those 3M full facepiece respirators which are approved for use with it, a continuous airflow of 4 to 15 cfm (115 to 425 lpm). The control knob is set manually between upper and lower airflow limits to suit the comfort requirements of the user.
  • Page 5 Instructions before donning. S-Special or Critical Use Instructions These 3M™ Airline Adaptor and Regulating Kits are designed to provide those 3M™ Full Facepieces, which are approved for use with it, a minimum continuous airflow of 4 cfm (115 lpm). 3M™ Supplied Air Hose and Pressure Requirements W-3061 Kit, W-3062 Valve, W-3253 Assembly 3M™...
  • Page 6 (Fig. 1) Fig. 1 If a pre-assembled air filtering and regulating device is desired, 3M offers several compressed air filter and regulator panel assemblies. These assemblies contain a specially designed filter cartridge to help remove oil mist and vapors, condensed moisture, particulates, odors and vapors. They come completely assembled and are ready for connection between the compressor and the supplied air respirator system.
  • Page 7 To meet the NIOSH requirement 42 CFR 84, subpart 84.150 for minimum and maximum airflow (4 to 15 cfm, 115 to 425 lpm), these air control devices approved for use with the 3M™ 7000 or 6000DIN Series Full Facepieces must be operated within the supply pressure ranges and hose lengths stated in the “Specifications”...
  • Page 8 ASSEMBLY INSTRUCTIONS These 3M™ Airline Adaptor and Regulating Kits and Breathing Tubes are only used with the 3M™ 7916 Breathing Room Assembly on 3M™ 7000 Series Full Facepiece, 3M™ 6884 DIN Port Adapter on 3M™ 6000DIN Series Full Facepiece.
  • Page 9 Fig. 4 9. Place the belt around your waist. With the female part of the buckle on your right, buckle it into place. Slide the air regulating valve over to the right hip. (Fig. 5)
  • Page 10 10. Bring the free end of the shoulder strap across the back, over the left shoulder and down across your chest to the female end of the belt buckle. (Fig. 5) Fig. 5 11. Snap the loop end of the shoulder strap just to the right of the female end of the belt buckle. This limits the shoulder strap from sliding left past the buckle.

  • Page 11: Fitting Instructions

    15. The entire system must meet the requirements of the Fitting Instructions before entering any hazardous environment. FITTING INSTRUCTIONS See the 3M™ Full Facepiece 6000DIN or 7000 Series User Instructions for details.
  • Page 12 Do not use if any parts are missing or damaged. Do not use with parts or accessories other than those manufactured by 3M as described in these User Instructions or on the NIOSH approval label for the respirator that you are using. Failure to do so may adversely affect respirator performance and result in sickness or death.

  • Page 13: Cleaning And Storage

    1. Remove any cartridges and/or filters. 2. Clean facepiece (excluding filters and cartridges), with 3M™ 504 Respirator Wipes or by immersing in warm cleaning solution, water temperature not to exceed 120° F (49° C), and scrub with soft brush until clean.

  • Page 14: Important Notice

    3M’s only obligation and your exclusive remedy shall be, at 3M’s option, to repair, replace or refund the purchase price of such parts or products upon timely notification thereof and substantiation that the product has been stored, maintained and used in accordance with 3M’s written instructions.
