Summary of Contents for Monitor Audio Apex AW-12

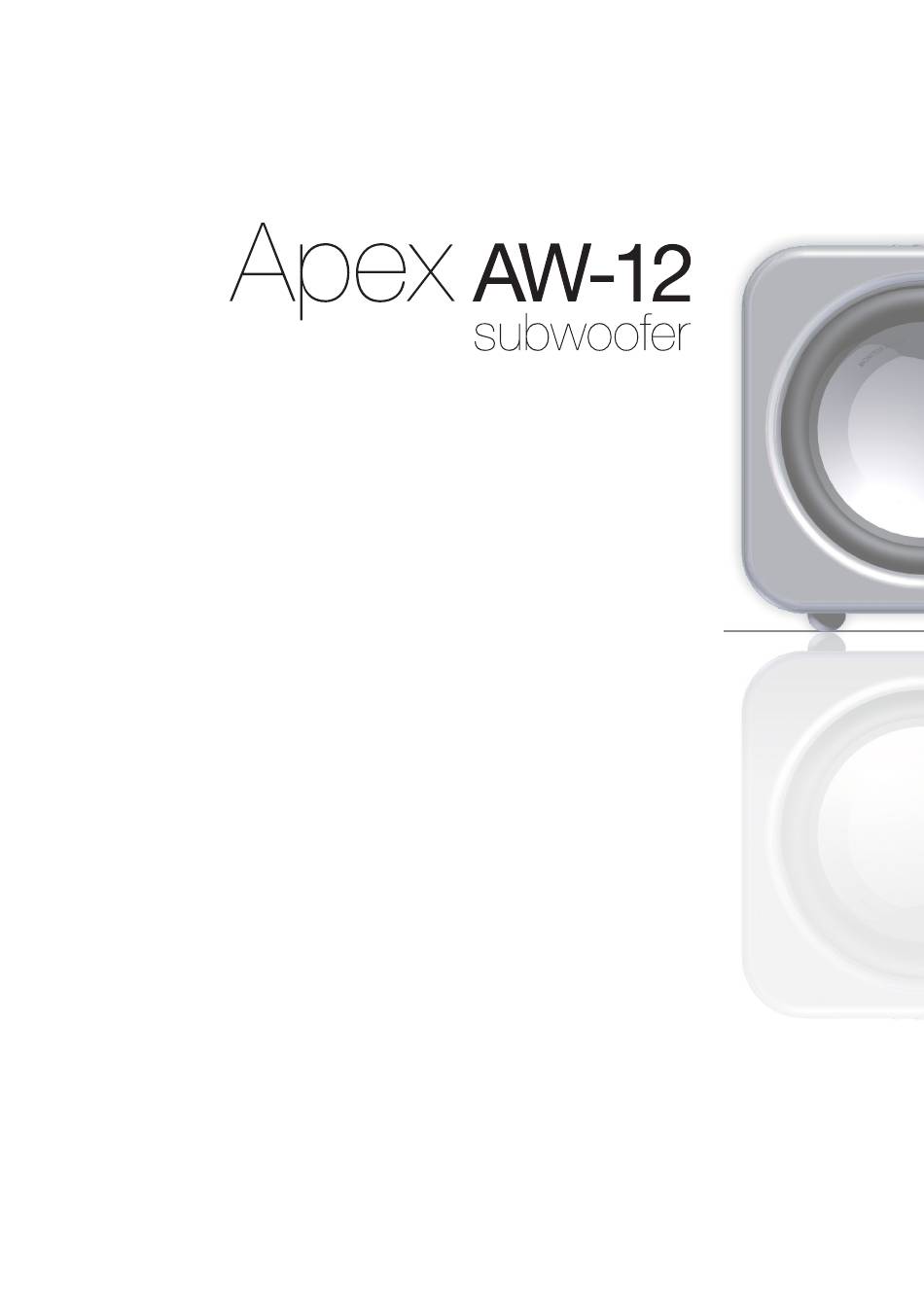

  • Page 1 Owners Manual...
  • Page 3 Owner Information Introduction Thank you for your purchase of the Monitor Audio AW-12 subwoofer, which has been designed and constructed using quality systems and materials to provide years of enjoyment, reliability and pride of ownership. Music is and should be a natural enhancement of life. It stimulates the imagination, changes your mood, helps you relax, and provides endless hours of entertainment.

  • Page 4: Important Safety Instructions

    Important Safety Instructions 1. Read these instructions. 2. Keep these instructions. 3. Heed all warnings. 4. Follow all instructions. 5. Do not use this apparatus with water. 6. Clean only with a dry cloth. Great care and attention has gone into the materials chosen to produce the AW-12.

  • Page 5: Rohs Declaration Of Conformity

    WARNING • TO PREVENT FIRE OR SHOCK HAZARD, DO NOT USE THIS PLUG WITH AN EXTENSION CORD, RECEPTACLE OR OTHER OUTLET UNLESS THE BLADES CAN BE FULLY INSERTED TO PREVENT BLADE EXPOSURE • TO PREVENT FIRE OR SHOCK HAZARD, DO NOT EXPOSE THIS APPLIANCE TO RAIN OR MOISTURE •...

  • Page 6: Spiked Foot Assembly

    Unpacking Care must be taken at all times when handling the AW-12 due to the weight of the product. We recommend a two-person lift wherever appropriate. A feature of the AW-12 is the exposed drive unit. Great care must be exercised at all times to ensure it is not damaged during unpacking and when finally sited in the room.

  • Page 7: Amp Panel & Controls

    Amp Panel & Controls AC110-120V ~ 50-60Hz AC220-240V ~ 50-60Hz 400 W FUSE: 110-120VAC T5AL/250VAC FUSE: 220-240VAC T5AL/250VAC Intertek 3100294 monitoraudio.co.uk...
  • Page 8 LFE input. This control feature is used to set the upper frequency limit (low pass) of the Apex AW-12. The crossover control should be set in accordance with the size or bass output of the main/satellite speakers.
  • Page 9 10. Mains Power Switch The Mains Power Switch should be switched to the ‘Off’ position when the Apex AW-12 will not be used for extended periods. The switch must be in the ‘On’ position for the subwoofer to function. WARNING: Due to the mains switch being located on the rear panel, the apparatus must be located in the open area with no obstructions to access the mains switch.

  • Page 10: Positioning/Initial Set Up

    Positioning/Initial Set Up Leave the AW-12 unplugged from the mains until the installation procedure is completed. The AW- 12 should now be sited in the most suitable position, preferably not directly in the corner of a room as this may cause excessive bass boom.

  • Page 11: Specification

    On position, and the signal source is turned on? Try adjusting the volume level of the source. If it still does not turn on/ power up, please contact your local dealer/ distributor or Monitor Audio immediately. No sound from AW-12.

  • Page 12: Guarantee And Service

    The equipment should be returned in its original packaging to the original supplier where possible, or to any other authorised Monitor Audio dealer. If it is not possible to return the equipment by hand, then it should be sent carriage prepaid via a reputable carrier. If the original packing is not available replacement packaging can be purchased from Monitor Audio.

  • Page 13: Ec Declaration Of Conformity

    EC Declaration of Conformity EC Declaration of Conformity We, Monitor Audio Ltd. Unit 2,24 Brook Road Rayleigh Essex SS6 7XL England Declare in own responsibility, that the AW-12 product described in this manual is in compliance with Technical Standards/Council Directives: (LVD) 73/23/EEC Low Voltage Directive EN60065: 09.93+ A11:09.97 Safety requirements for mains operated electronic and related...

  • Page 14: Data Protection

    We at Monitor Audio are committed to respecting the wishes and privacy of our customers. Any information you provide will be held in the strictest confidence and only used within the Monitor Audio organisation for the provision of services such as warranty claims or spare parts.
  • Page 15 monitoraudio.co.uk...
  • Page 16 Monitor Audio Ltd. Unit 2, 24 Brook Road Rayleigh, Essex SS6 7XL England Tel: 01268 740580 Fax: 01268 740589 Email: info@monitoraudio.co.uk monitoraudio.co.uk Designed in the United Kingdom Version 2. 2016...
