- Page 1 MANUFACTURING LLC Please Read This Manual Carefully Before Using This Product 360SLT2 SMARTLINK TPMS TABLET USER MANUAL...
-
Page 2: Table Of Contents
1. INTRODUCTION ............................ 3 1.1. PACKING AND ACCESSORIES ...................... 3 1.2. TABLET COMPONENTS ........................ 3 1.3. INITIAL POWER UP ........................... 4 1.4. CONNECT THE TABLET TO THE INTERNET .................. 4 1.5. CONNECT TO A COMPUTER FOR FILE TRANSFER ................ 5 2. FUNCTIONS AND APPLICATIONS ...................... 6 2.1. INTRODUCTION .......................... 6 3. FUNCTIONS AND APPLICATIONS ...................... 7 ... -
Page 3: Introduction

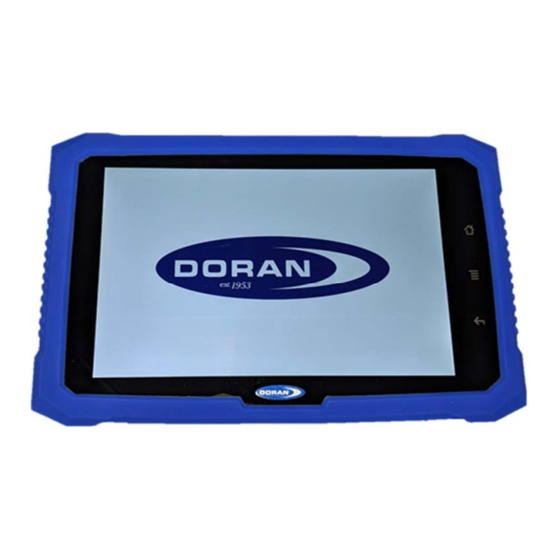

360SLT2 SMARTLINK Tablet Manual 1. INTRODUCTION The Doran 360SLT2 is a SMARTLINK™ TPMS Tablet used to communicate with all Doran TPMS products with a RF or LF transmitting capability. These TPMS products cover the Truck and Trailer Fleets, OFF Road Equipment, and Multi‐Trailer applications. It can be ... -
Page 4: Initial Power Up
360SLT2 SMARTLINK Tablet Manual 1.3. INITIAL POWER UP Before powering on the device, make sure it is fully charged. If the battery is not fully charged, the tablet will not be able to upgrade the software to the latest version. To charge the device, use the USB adapter and USB‐C cable provided. To power on the tablet, press and hold the power button on the top left of the tablet until the display light turns on and the Doran logo appears. The tablet will automatically shut off to conserve battery if it is not used for 30 minutes. 1.4. CONNECT THE TABLET TO THE INTERNET To connect the tablet to the internet, first click App Settings on the home screen. Next, hit Tablet Settings. Click on the WLAN button, browse for your Wi‐Fi network, and connect. Doran Mfg. LLC – 2851 Massachusetts Ave – Cincinnati, OH 45225 – 866‐816‐7233 – Doranmfg.com ... -
Page 5: Connect To A Computer For File Transfer
360SLT2 SMARTLINK Tablet Manual 1.5. CONNECT TO A COMPUTER FOR FILE TRANSFER The device can be connected to a computer with a USB‐C cable to transfer stored data. To connect the tablet and computer, insert the USB‐C cable into the table and the USB end to the computer. On the tablet, an Android System notification will appear. Swipe down from the top notification bar and select the option below. Select the Transfer Files radio button. This will allow the computer to access the internal storage of the tablet. The tablet will now be accessible on the computer it is connected to. The folder named Doran TPMS Data will have all exported data. Doran Mfg. LLC – 2851 Massachusetts Ave – Cincinnati, OH 45225 – 866‐816‐7233 – Doranmfg.com 5 ... -
Page 6: Functions And Applications
360SLT2 SMARTLINK Tablet Manual 2. FUNCTIONS AND APPLICATIONS 2.1. INTRODUCTION The DORAN 360SLT2 SMARTLINK™ TPMS TABLET is an all‐in‐one tool that can be used with all of the DORAN TPMS products. The main menu features the following operations. PROGRAM TRANSCEIVER Used to program any TPMS transceivers installed on a vehicle READ TIRE SENSOR Allows the user to read sensor data from transceivers, LFA TPMS sensors, or record tire data SAVED FILES Access saved data from recorded tire data APP SETTINGS Access Android settings, change the unit of measure, checking for software updates, and setting up an email account. ACCESS WEB PORTAL Access the YardCheck360™ web portal (Only for use with YardCheck360™ products). Doran Mfg. LLC – 2851 Massachusetts Ave – Cincinnati, OH 45225 – 866‐816‐7233 – Doranmfg.com 6 ... -
Page 7: Functions And Applications
360SLT2 SMARTLINK Tablet Manual 3. FUNCTIONS AND APPLICATIONS 3.1. PROGRAMING A TRANSCEIVER After clicking the Program Transceiver icon on the home screen, the tablet will search for and list any active transceivers within range. The appropriate transceiver is selected and a tire layout screen is displayed. On this screen, the user can set a global baseline pressure to all programmed tire positions, change the asset ID, and program sensors on to the transceiver. To set the global baseline pressure, the button is pressed and the newly desired values are entered. Confirm the pressure levels by pressing the Confirm button and then the Send Data to Transceiver button is pressed to transfer the new settings and save the global baseline pressure to the transceiver. Doran Mfg. LLC – 2851 Massachusetts Ave – Cincinnati, OH 45225 – 866‐816‐7233 – Doranmfg.com 7 ... -
Page 8: Read Tire Sensor Data
360SLT2 SMARTLINK Tablet Manual To program a tire sensor, the desired position is pressed. The sensor ID is typed in at the top of the screen. If the baseline pressure or alert levels need customized, it can be done on this screen as well. After confirming the ID and alarm levels are correct, the data can be sent to the transceiver and saved by pressing the Send Data to Transceiver button. 3.2. READ TIRE SENSOR DATA After clicking the Read Tire Sensor Data on the home screen, the user is presented with three different options. Doran Mfg. LLC – 2851 Massachusetts Ave – Cincinnati, OH 45225 – 866‐816‐7233 – Doranmfg.com 8 ... -
Page 9: Read One-Click Transceivers
360SLT2 SMARTLINK Tablet Manual 3.2.1. READ ONE‐CLICK TRANSCEIVERS Clicking on the Read One‐Click Transceivers button will bring up a list transceivers. Once a transceiver is selected, the tire data will be loaded. Once a transceiver is selected, the tires that are currently programmed on the transceiver will be displayed. Clicking on a tire will bring up the tire details. The user can also add information such as a serial number, position ID, tread depth, and photos. After information is added, simply press Confirm and then the Save button to save the data to the tablet. Doran Mfg. LLC – 2851 Massachusetts Ave – Cincinnati, OH 45225 – 866‐816‐7233 – Doranmfg.com 9 ... -
Page 10: Read Individual Tire Sensor
360SLT2 SMARTLINK Tablet Manual 3.2.2. READ INDIVIDUAL TIRE SENSOR Users can also read individual tire sensors if they have a LFA marking on them. This is a special type of tire sensor that features low frequency communication to allow the tablet to communicate directly to the sensor. 3.2.3. RECORD TIRE DATA In addition to displaying the current pressure and temperature of a sensor, the 360SLT2 can also record tire data. After pressing the Record Tire Data button on the Read Data Menu, two axles are shown. An asset ID is first assigned and then the vehicle configuration can be modified. Using the + and – buttons, the user can add or subtract axels to match the configuration of the vehicle. Doran Mfg. LLC – 2851 Massachusetts Ave – Cincinnati, OH 45225 – 866‐816‐7233 – Doranmfg.com 10 ... -
Page 11: Saved Files
360SLT2 SMARTLINK Tablet Manual Clicking on a tire will bring up the tire record input screen. If the sensors are marked with LFA, they can be read to fill in the tire pressure and temperature. Additionally, information such as a serial number, position ID, tread depth, and photos can be added. Once all desired data is entered for that tire, the Confirm button is pressed. Once all tires are recorded, the Save button is pressed and the data will be saved to the tablet. This data can be exported or reviewed in the Saved Files menu which is outlined in the following section. 3.3. SAVED FILES Clicking on the Saved Files button will bring up a list with all of the assets that have been stored on the tablet. A red tire indicates an alarm condition has been recorded. A blue dot indicates that all tires on the asset are at correct pressures and temperatures. Pressing the Export button will save all of the data to a file located in the Doran TPMS Data folder of the tablet. Clicking on the Detail button for any of the assets will bring up a Last Reported Data screen displaying the last reported tire data. Doran Mfg. LLC – 2851 Massachusetts Ave – Cincinnati, OH 45225 – 866‐816‐7233 – Doranmfg.com 11 ... -
Page 12: App Settings
360SLT2 SMARTLINK Tablet Manual Clicking on an individual tire will bring up a detailed graph of the Historical Data from the last 7 Days for that specific tire. 3.4. APP SETTINGS In the App Settings, the user can change the unit of measure for temperature, pressure, and tread depth measurements. The Check for Update button will verify that the tablet is running the most up to date version of software. The Tablet Settings button will navigate to Android settings such as Wi‐Fi, Bluetooth, Display, and Notification settings. Lastly, the Email button will guide a user through setting up an email account on the tablet. This can be used to email saved data and photos off the tablet. Doran Mfg. LLC – 2851 Massachusetts Ave – Cincinnati, OH 45225 – 866‐816‐7233 – Doranmfg.com 12 ... -
Page 13: Yardcheck360 Web Portal
360SLT2 SMARTLINK Tablet Manual 3.5. YARDCHECK360 WEB PORTAL If YardCheck360 hardware is being used, the YardCheck360 web portal can be accessed by the tablet. Please visit http://doranmfg.com/yardcheck‐360‐wireless‐gate‐reader‐tire‐pressure‐ monitoring‐system/ for more details regarding the YardCheck360 product line. Doran Mfg. LLC – 2851 Massachusetts Ave – Cincinnati, OH 45225 – 866‐816‐7233 – Doranmfg.com 13 ... -
Page 14: Faqs And Tips
360SLT2 SMARTLINK Tablet Manual 4. FAQS AND TIPS Why can’t I read the sensor data successfully? The communication between the sensor and smart tablet is called low frequency technology. The communication distance is much shorter than RF. Typical read distance is just 6 inches. Make sure the tablet is close enough to read sensor data successfully. Why doesn’t my tablet turn on? Press and hold the power button for a few seconds until the Doran logo appears on a white screen. If the tablet does not power on, check if the battery needs charged. Why can’t I see the sensor ID in the data read from the transceiver? The sensor ID is not included in the data transmission from the transceiver to the tablet. The sensor ID is only available if the data is read directly from a LFA sensor. Why isn’t the system date and time correct? The system date and time will be auto synced to the local time zone once it is connected to the Internet through WIFI connection. You can also manually set the date and time in Android Tablet settings accessed through the App Setting button on the home screen. ... -
Page 15: Specifications
7" IPS Screen resolution 1280x800 Power Adapter 100~240V Tablet Information Battery 5000mAh Power consumption <8W Working 0~55 ℃ Temperature Storage ‐20~60 ℃ Temperature Dimensions 250Lx130Wx23H mm Weight 0.56 kg USB (Type C) Connection USB (OTG) Micro SD card Doran Mfg. LLC – 2851 Massachusetts Ave – Cincinnati, OH 45225 – 866‐816‐7233 – Doranmfg.com 15 ... -
Page 16: Limited Warranty
6.1. FCC ID: XXXXXX‐SLT THIS DEVICE COMPLIES WITH PART 15 OF THE FCC RULES. OPERATION IS SUBJECT TO THE FOLLOWING TWO CONDITIONS (1)THIS DEVICE MAY NOT CAUSE HARMFUL INTERFERENCE, AND (2)THIS DEVICE MUST ACCEPT ANY INTERFERENCE THAT MAY CAUSE UNDESIRED OPERATION 6.2. IC ID:XXXXXX‐360SLT CAN RSS‐Gen/CNR‐Gen 6.3. CE and RCM This device passed both CE and RCM test on EMC, RF, WIFI, NFC and LVD. 7. LIMITED WARRANTY ONE YEAR LIMITED WARRANTY: Subject to the limitations and exclusions set forth in this Limited Warranty, the DORAN 360SLT2is warranted against defects in material or workmanship that result in a product failure under normal use during the one‐year period following the date of purchase by the original end‐user. This Limited Warranty applies only to claims made by the original end‐user and cannot be assigned, transferred or conveyed to any subsequent users. The exclusive remedy for any product determined by DORAN MFG. LLC to be defective within such period shall, at the sole option of DORAN MFG. LLC, be the repair or replacement of such defective product, or the refund of the purchase price therefore. No other remedy shall be available. EXCLUSIONS FROM COVERAGE: This Limited Warranty does not apply to any claims arising from misuse, abuse, unauthorized repair or alteration, circumstances; or damage or defect attributable to fire or other casualty, including, without limitation, acts of God or exposure to abrasive or corrosive materials or pollutants, or attributable to collision or other accidents which the DORAN 360SLT2 is used. LIMITATIONS: THIS LIMITED WARRANTY IS EXPRESSLY IN LIEU OF ALL OTHER EXPRESSED OR IMPLIED WARRANTIES, INCLUDING WITHOUT LIMITATION, THE ... - Page 17 360SLT2 SMARTLINK Tablet Manual SPECIAL, OR CONSEQUENTIAL DAMAGES. IN NO EVENT, AND FOR NO CAUSE WHATSOEVER, SHALL DORAN MFG. LLC HAVE ANY LIABILITY TO ANY PARTY IN EXCESS OF THE ORIGINAL PURCHASE PRICE OF THE PRODUCT IN QUESTION. EXCLUSIVE AGREEMENT: This Limited Warranty is a complete and exclusive statement of the warranties which apply to the DORAN 360SLT. There are no expressed or implied warranties beyond those expressly stated above. No employee, agent, dealer or other Person is authorized to give any warranties on behalf of DORAN MFG. LLC, except as authorized in writing. STATUTE OF LIMITATIONS. In purchasing the DORAN 360SLT2you agree that any action for breach of contract or warranty must be commenced within one year after the cause of action has accrued. PROCEDURE: Products determined to be defective within the terms of this Limited Warranty should be returned to Doran Mfg. LLC, transportation prepaid. Call DORAN MFG. LLC for return authorization. No unauthorized returns shall be accepted. Sender is responsible for all costs incurred in the removal or reinstallation and shipping of the returned product. A copy of the sales slip from the point of purchase must accompany the returned product. APPLICABLE LAW: The internal laws of the State of Ohio, U.S.A. shall govern this Limited Warranty, and the exclusive venue for any dispute in connection with the purchase or use of the product shall be the state and federal courts of general jurisdiction located in Hamilton County, Ohio U.S.A. SPECIAL NOTICE TO CONSUMERS: If you have purchased this product for person, family or household use: (1) Some states do not permit disclaimers or term limitations of implied warranties so that the disclaimers and limitations in this Limited Warranty may not apply to you; (2) Some states do not permit the exclusion or l imitation of incidental or consequential damages so that the exclusions and limitations in this Limited Warranty may not apply to you; and (3) This Limited Warranty gives you specific legal rights and you may have other rights that vary from state to state. ...
- Page 18 360SLT2 SMARTLINK Tablet Manual DORAN MANUFACTURING CO. LLC 2851 Massachusetts Avenue Cincinnati, OH 45225 Tel: 866‐816‐7233 Fax: 513‐681‐5604 Website: www.Doranmfg.com Doran Mfg. LLC – 2851 Massachusetts Ave – Cincinnati, OH 45225 – 866‐816‐7233 – Doranmfg.com 18 ...
