Please read this Manual carefully
The DORAN 360HD is designed solely to monitor tire pressure. It is not
designed to provide warning of a potential or actual tire blowout.
The National Highway and Traffic Safety Administration considers a tire flat
when the pressure is 25% below the tire manufacturers' recommended operating
pressure.
before using this product.

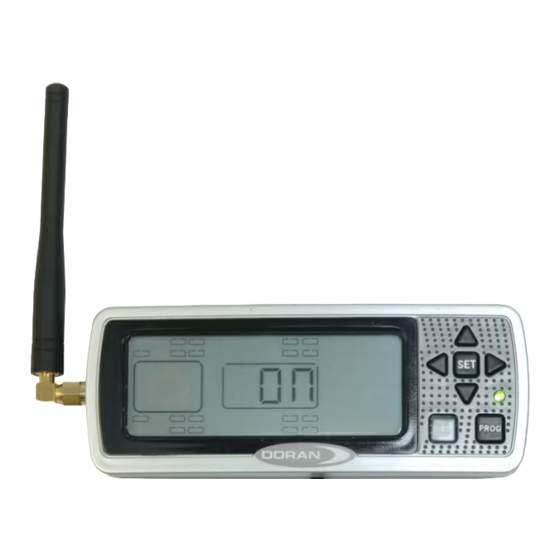

Monitors up to 36 different wheel positions
USER MANUAL
Manufacturing LLC
360HD

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 360HD and is the answer not in the manual?

Questions and answers

Related Manuals for Doran 360HD

Summary of Contents for Doran 360HD

  • Page 1 Monitors up to 36 different wheel positions USER MANUAL The DORAN 360HD is designed solely to monitor tire pressure. It is not designed to provide warning of a potential or actual tire blowout. The National Highway and Traffic Safety Administration considers a tire flat when the pressure is 25% below the tire manufacturers’...

  • Page 2: Table Of Contents

    VII. COMPLIANCE AND DISPOSAL INFORMATION ..............29 1. FCC COMPLIANCE STATEMENT ..................29 2. CANADIAN REGULATORY STATEMENT ................. 29 3. DISPOSAL AND RECYCLING INFORMATION ..............29 VIII. OPTIONAL ACCESSORIES ......................30 DORAN MFG. LLC  2851 Massachusetts Ave  Cincinnati, OH 45225  866-816-7233  Doranmfg.com...

  • Page 3: Introduction

    A damaged Sensor or valve stem can cause pressure loss. Inspect regularly. If repeated faults are observed, discontinue use of the system and contact DORAN Mfg. Toll Free 1- 866-816-7233.

  • Page 4: Glossary Of Terms

    12.5% below the baseline pressure. DORAN MFG. LLC  2851 Massachusetts Ave  Cincinnati, OH 45225  866-816-7233  Doranmfg.com...
  • Page 5 The term used to identify Radio Frequency signals. DORAN MFG. LLC  2851 Massachusetts Ave  Cincinnati, OH 45225  866-816-7233  Doranmfg.com...

  • Page 6: Setup And Installation

    DORAN MFG. LLC  2851 Massachusetts Ave  Cincinnati, OH 45225  866-816-7233  Doranmfg.com...

  • Page 7: Programming The Monitor

    “PROGRAM” will be displayed (see Figure 2-1). As you will see by DORAN MFG. LLC  2851 Massachusetts Ave  Cincinnati, OH 45225  866-816-7233  Doranmfg.com...
  • Page 8 This will cause the first dash (see Figure 2- 4) of a three-digit sensor number to blink that will need to be entered. Figure 2-4 DORAN MFG. LLC  2851 Massachusetts Ave  Cincinnati, OH 45225  866-816-7233  Doranmfg.com...

  • Page 9: Baseline Pressure Programming

    NOTE: To enter directly into this program mode you will need to press the button for 5 seconds until the Figure 2-7 “PROGRAM” is displayed. Then press the button again briefly to enter DORAN MFG. LLC  2851 Massachusetts Ave  Cincinnati, OH 45225  866-816-7233  Doranmfg.com...
  • Page 10 For a number less that 100 you will need to start your number with a 0. For air pressure of 95 PSI, the number for the baseline pressure would be entered as “095”. DORAN MFG. LLC  2851 Massachusetts Ave  Cincinnati, OH 45225  866-816-7233  Doranmfg.com...

  • Page 11: Programming The Date And Time For Stored Alarm History Information

    When you have selected the number that you want, press the right button to adjust the right digit in the same DORAN MFG. LLC  2851 Massachusetts Ave  Cincinnati, OH 45225  866-816-7233  Figure 2-12...
  • Page 12 (h) press and hold the S button for 3 seconds until the monitor beeps twice and the display flashes twice. The display is shown like Figure 2-15. DORAN MFG. LLC  2851 Massachusetts Ave  Cincinnati, OH 45225  866-816-7233  Doranmfg.com...

  • Page 13: Programming The Unit Of Measure

    P button to move into the next section of the programming mode. To change the unit of measure, do the following. Figure 2-19 DORAN MFG. LLC  2851 Massachusetts Ave  Cincinnati, OH 45225  866-816-7233  Doranmfg.com...

  • Page 14: Delete Sensor Location

    When you select a position, the three- digit number that was programmed will be displayed Figure 2-21 DORAN MFG. LLC  2851 Massachusetts Ave  Cincinnati, OH 45225  866-816-7233  Doranmfg.com...

  • Page 15: High Pressure Alarm Programming

    Pressures increase with elevated temperature. The monitor will display HIGH PRESSURE and PROGRAM and the center DORAN MFG. LLC  2851 Massachusetts Ave  Cincinnati, OH 45225  866-816-7233  Doranmfg.com...

  • Page 16: Installing The Sensors On The Vehicle

    Always adjust air pressure when tires are cold or ambient to the baseline pressures that were programmed into the monitor for each wheel position. Cool temperatures and high altitudes can DORAN MFG. LLC  2851 Massachusetts Ave  Cincinnati, OH 45225  866-816-7233  Doranmfg.com...
  • Page 17 Figure 3-2 light will come on (see Figure 3-2). You are now ready to enjoy the safety and comfort of your new DORAN 360HD Tire Pressure Monitor System. (Black box products don’t have the green light) 3. If any of the wheel positions are not within the baseline air pressures an alert will be issued by the monitor and the air pressure reading will be shown for the affected tire position and the monitor will show PRESSURE and whether it is a LOW or HIGH warning.

  • Page 18: Alarm Modes

    Audible alarm and green LED light are not available on all black box products. The DORAN 360HD has six types of alarm modes. The warning levels are:  12.5% below the programmed baseline air pressure for the first low-level alarm.

  • Page 19: First Stage Alarm For 12.5% Low Air Pressure

    Low Pressure Level 1 Alarm. The audible alarm will be silenced by pressing any of the buttons. The monitor will continue to display the wheel position, DORAN MFG. LLC  2851 Massachusetts Ave  Cincinnati, OH 45225  866-816-7233  Doranmfg.com...

  • Page 20: High Pressure Alarm

    HIGH PRESSURE ALARM The DORAN 360HD monitor is capable of monitoring for a High Pressure Warning. This is a warning that is displayed when the baseline air pressure is exceeded by 25%. When this happens the Green light will go out. The audible beeper will beep once per second and HIGH PRESSURE will be displayed on the monitor screen.

  • Page 21: Hot Warning Alarm

    By FCC rules we must allow signals from other sources to interfere with our signals. The DORAN 360 series sensors, as well as all the other TMPS systems on the market are not allowed to interfere with other radio frequency (RF) signals.

  • Page 22: System Reset Function

    Be sure this is what you want to do before you proceed. DORAN MFG. LLC  2851 Massachusetts Ave  Cincinnati, OH 45225  866-816-7233  Doranmfg.com...

  • Page 23: Stored Alarm Information

    When you have finished checking the alarm history the P and S buttons can be pressed together for three Figure 6-7 seconds to return to the normal operation mode. DORAN MFG. LLC  2851 Massachusetts Ave  Cincinnati, OH 45225  866-816-7233  Doranmfg.com...

  • Page 24: Backlight On For Night Operation

    Higher radio frequency (RF) transmissions travel mostly via straight lines and along line- of-sight pathways. The 360HD sensors are required to accomplish the difficult task of transmitting a low power FCC approved signal from vehicle tires to the monitor. If a sensor fails to be recognized, move the monitor slightly.
  • Page 25 With the 360HD system you can air up a low tire with the tire being warm and replace the sensor without worrying about the sensor giving a false alarm, unlike some of the other systems available on the market.
  • Page 26 It is possible, during an instantaneous blowout, to have the sensor blown off the tire before it has had a chance to send a signal to the monitor. The 360HD is not designed for this type of tire failure. Tire failure referred to as a blowout, is commonly due to low tire pressure resulting in an overheating of the tire sidewalls to the point of disintegration.

  • Page 27: Tips

    The exclusive remedy for any product determined by DORAN Mfg. LLC to be defective within such period shall, at the sole option of DORAN Mfg. LLC, be the repair or replacement of such defective product, or the refund of the purchase price therefore.

  • Page 28: Specifications

    IMPLIED WARRANTIES, INCLUDING WITHOUT LIMITATION, THE IMPLIED WARRANTY OF MERCHANTABILITY AND THE IMPLIED WARRANTY OF FITNESS FOR A PARTICULAR PURPOSE, AND ALL OF ALL OTHER OBLIGATIONS OR LIABILITIES ON THE PART OF DORAN MFG. LLC. THIS LIMITED WARRANTY SPECIFICALLY EXCLUDES ALL INCIDENTAL, SPECIAL, OR CONSEQUENTIAL DAMAGES.
  • Page 29 Monitor Power Cord Plug hard wire Monitor Tire Positions 1 to 36 positions Sensor Alarm Trigger Settings 12.5% and 25% below the original tire inflation level DORAN MFG. LLC  2851 Massachusetts Ave  Cincinnati, OH 45225  866-816-7233  Doranmfg.com...

  • Page 30: Compliance And Disposal Information

    3. DISPOSAL AND RECYCLING INFORMATION In some areas, the disposal of certain electronic devices is regulated. Make sure you dispose of or recycle DORAN devices in accordance with your local laws and regulations. DORAN MFG. LLC  2851 Massachusetts Ave  Cincinnati, OH 45225  866-816-7233 ...

  • Page 31: Optional Accessories

          DORAN MANUFACTURING CO. LLC 2851 Massachusetts Avenue Cincinnati, OH 45225 Tel: 866-816-7233 Fax: 513-681-5604 Website: www.doranmfg.com ©2015 – All Rights Reserved #3675-HD V4 DORAN MFG. LLC  2851 Massachusetts Ave  Cincinnati, OH 45225  866-816-7233  Doranmfg.com...
