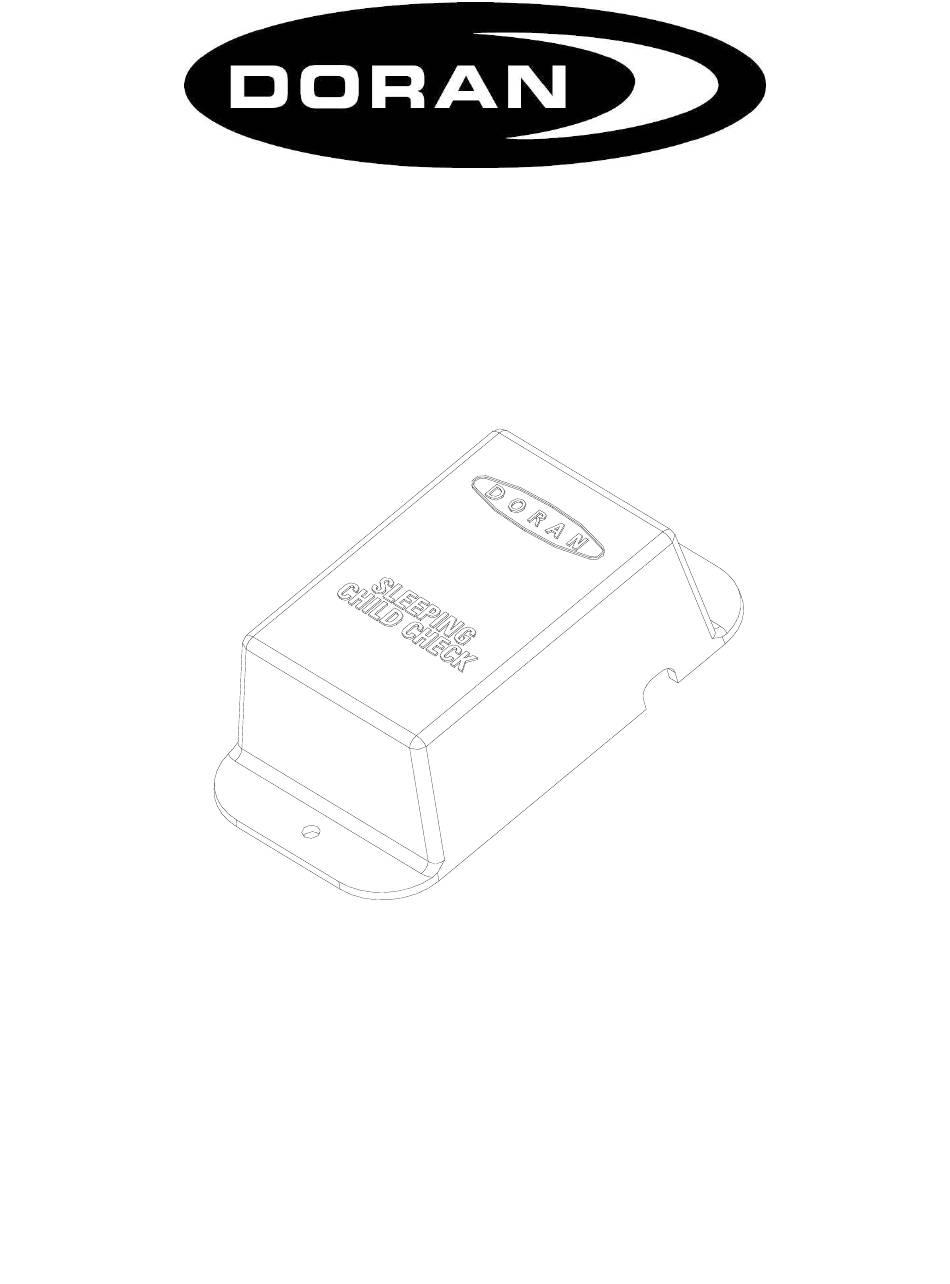

SLEEPING CHILD CHECK
Model SCC-AM-00/01 and
Model SCC-AM-24V
INSTALLATION AND
OPERATION MANUAL
Doran Manufacturing LLC
2851 Massachusetts Ave.
Cincinnati, Ohio 45225
(866)-816-7233 TEL
(513) 681-5604 FAX
www.doranmfg.com
OCTOBER 2016

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the SCC-AM-00 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Doran SCC-AM-00

  • Page 1 SLEEPING CHILD CHECK Model SCC-AM-00/01 and Model SCC-AM-24V INSTALLATION AND OPERATION MANUAL Doran Manufacturing LLC 2851 Massachusetts Ave. Cincinnati, Ohio 45225 (866)-816-7233 TEL (513) 681-5604 FAX www.doranmfg.com OCTOBER 2016...
  • Page 2: How It Works

    Doran’s Sleeping Child Check gives you the peace of mind in knowing that the bus driver cannot deactivate the system without first walking to the back of the bus - virtually eliminating the possibility that a child will be left behind.
  • Page 3 TYPICAL WIRING CONNECTION TO SCC MODULE Fig. 1 Insulated female Quick-Connector for .250” wide blades crimped to 16-gauge wire. SLEEPING CHILD CHECK WIRING OPTIONS (12V SCC Model pictured) Option #1 Chassis Ground – When grounded, horn sounds immediately upon probing OPTIONAL AUDIBLE ALARM OR LAMP AS SHOWN V(+) battery...
  • Page 4 Option #2 Horn sounds when connected to Positive(+) V OPTIONAL AUDIBLE ALARM OR LAMP AS SHOWN V(+) battery LEFT OR RIGHT RED WARNING SIGNAL ARMING SIGNAL INPUT V(+) battery IGNITION 1157 or ACCESSORY POWER equivalent OVERHEAD RED WARNING FLASHER HORN (P4) (F2) (F3) FRONT DOOR...
  • Page 5: Installation Instructions

    INSTALLATION INSTRUCTIONS l. Physical Installation Locate the module where it is convenient to access most of the signals in the list below. Make sure that it does not interfere with the driver’s ability to control the vehicle. Electrical connections are made with insulated female quick connect terminals for .250” blades.
  • Page 6 Arming To ARM the SCC and activate the system, a positive battery voltage signal must be detected at the ARM (P6) terminal with the Ignition on. An example signal to ARM the unit is the voltage for the Red Warning lights on the top of a bus or the control voltage for the Stop Arm Sign.
  • Page 7 successful reset will turn off the ALARM output and the interior light control will remain on for 1 minute. If the ALARM has not been triggered, the ignition input (or alt. accessory input) may be turned on and the SCC will return to the ARMed state, interior light relay opens and front door may be open and closed without triggering ALARM.
  • Page 8 Option #2~ Pos V Battery Horn Activation (most common) If you find a wire that lights up the test light when the horn button is sounded, you have most likely found the correct wire and can be fairly certain that it requires Pos V to activate the horn.
  • Page 9 Interior Overhead Light – P3 (Dome) In some vehicles the interior lights may be controlled by vehicle electronics. In these vehicles it may not be possible to use the SCC’s DOME light control. If there is a Grounding or Bat+ voltage control that activates the interior lights, it may be possible to parallel the SCC with the control or possibly by supplying Bat + voltage to an aux.
  • Page 10 them come on, then the relay in the Sleeping Child Check will ground the dome lights exactly like the doors. At the input to the SCC FRT DOOR- this would indicate a door has opened and trip the alarm when the ignition is turned off.
  • Page 11     Figure 4   Cut-away view of Reset Switch Installation    Drill 5/8” hole in access panel in the rear interior of the bus.  Thread hex nut onto threaded stem.  Insert switch through hole as shown. ...
  • Page 12 VI. Air Door Switch option #SCC-AM-SW-00 This option is required for buses equipped with power-assisted doors whose 8-way warning lamp flasher units are not activated by a mechanical door switch. For these buses, the SCC monitor will not function when the emergency release valve is used to dump the air from the system.
  • Page 13: Timer Options

    VIl. Periodic Testing for the SCC Monitor The inspection procedure listed below should be followed at the completion of the installation, and periodically to ensure the SCC is functioning properly. 1. Start the school bus. Make sure all the doors are closed. 2.
  • Page 14 These two (2) timer modes are independently enabled. The Doran Sleeping Child Check (SCC-AM) may be ordered with options already enabled. Or users may enable timers themselves; however some disassembly may be required to properly access the programming jumpers. If damage occurs from this procedure, Doran will not warrant the product.
  • Page 15: Troubleshooting

    IX. Troubleshooting Problem Solution Horn does not activate when I turn off accessory Check the connection on the horn relay wire. Verify that you have power and open the front door, but I can hear a made a secure connection. relay inside the SCC module clicking on and off.
