DXZC series
DXZC, DXZC-M, DXZC-A and DXZC-AM
Quick Start Guide

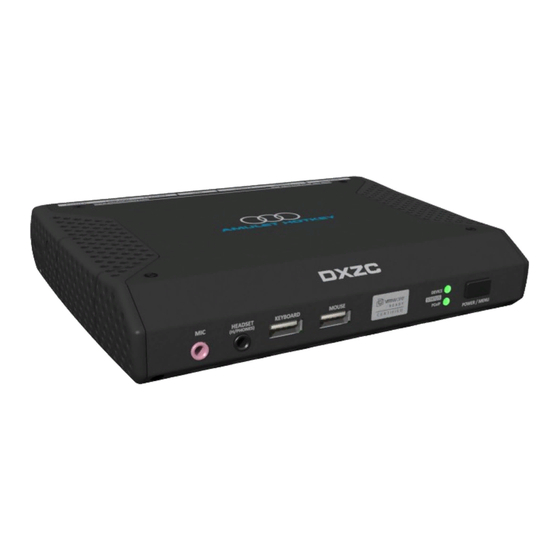

The DXZC series zero clients are PC-over-IP® (PCoIP®) zero clients used to connect
to physical and virtual workstations, virtual desktops such as VMware Horizon and
cloud managed desktops such as Amazon Workspaces.
Each DXZC zero client is based on the Tera2 chipset and supports two heads of
video at the desktop. The DXZC model also has four USB 2.0 ports.
The DXZC is available in several versions with a single RJ45 or SFP network port
that accepts a copper or fiber SFP module (available separately). Other models
have a card reader, may be certified by the NCSC or have an extended number of
USB ports. Each version is supplied with a PSU and power cable.
Note: This guide uses 'DXZC' as a generic term when referring to both the
standard DXZC product and the DXZC-M product.
Before you start
You must first configure a remote computer and PCoIP host, ready for connection
to the DXZC. The remote computer must be powered and connected to the
appropriate network. You will need the IP address of the PCoIP host.
STEP 1: Connect the Keyboard, Mouse and optional Headset
1. Connect a keyboard and mouse either to the front panel USB ports or to the
USB port at the rear.
2. Connect audio devices, if used.
STEP 2: Connect the Monitor, Network cable, Peripherals and Power
1. Connect at least one compatible monitor to the DXZC, starting at the
Video 1 port.
2. (DXZC-M only) connect the SFP module to the Network Port.
www.amulethotkey.com
PCoIP Zero Client
3. Connect the network cable.
4. Connect the DXZC PSU.
Use only the PSU supplied with this DXZC!
AMULET
HOTKEY
DXZC Zero Client
DXZC Quick Start Guide v1.1 December 2018
QS-DXZC-0001
®
